ICA-4200V

Full HD 20M IR Vari-focal Dome IP Camera

Overview

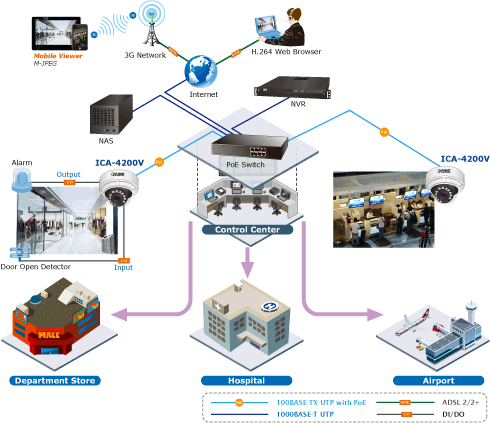

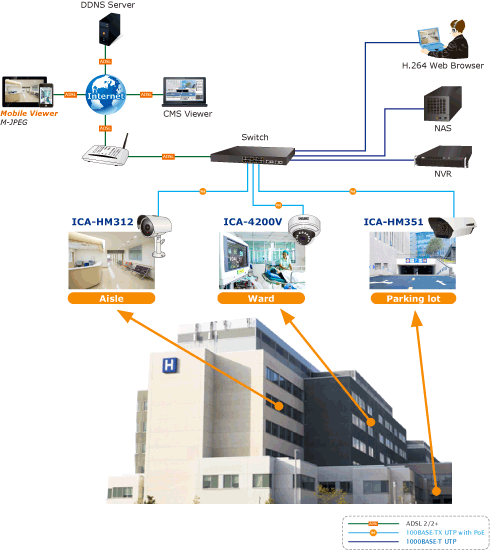

Application
Key Features
Specification
Download
Related Products

High Resolution Day and Night Surveillance

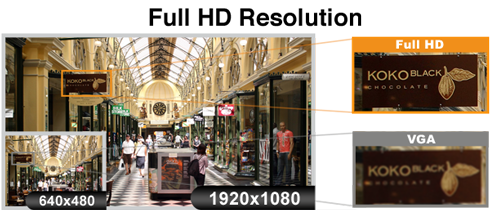

PLANET ICA-4200V Network Camera with IR Illuminator is a high resolution camera for round-the-clock surveillance over IP networks. It supports H.264 and JPEG compression formats and delivers excellent picture quality in Full HD resolutions at 30 frames per second (fps). Incorporating the new CMOS image sensor, which is specially designed for surveillance applications, the ICA-4200V provides high quality images under all lighting conditions. It is perfect for remote and discreet monitoring of indoor areas such as stores, banks, hotels, office lobbies, and warehouses.

Day & Night Functionality

To adapt to constantly changing lighting conditions, the ICA-4200V comes with a removable IR-cut filter and built-in IR illuminators, which enable the camera to provide color video when there is sufficient light, and black/white video in dark conditions. The ICA-4200V is able to maintain clear images 24 hours a day.

Exceptional Image Quality

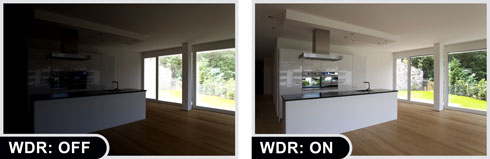

Together with powerful image processing attributes like Wide Dynamic Range and 3D Digital Noise Reduction (3DNR) technology, the ICA-4200V is able to filter the intense backlight surrounding a subject and remove noises from video signal. It brings an extremely clear and exquisite picture quality even under any challenging lighting conditions.

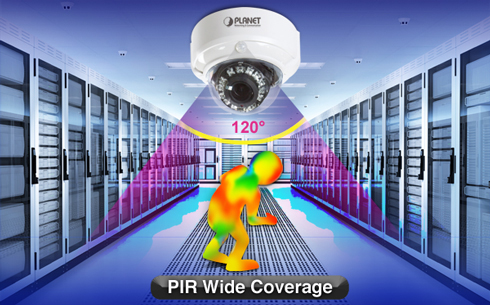

Passive InfraRed (PIR) Sensor

When people pass by or in an emergency situation, the built-in PIR motion detection sensor in the ICA-4200V will “detect” and start recording automatically. It is able to detect movement as far as 6 meters away. When motion is detected in the specified areas, the additional function of alarm notification can send an e-mail alert or captured images via FTP upload to a designated storage server.

Camera Tampering and Audio Detection

Provided with three individually configurable motion detection zones, the ICA-4200V can record video or trigger alarms and alerts when motion is detected in a designated area. Also, its built-in microphone enables the system to record the sound that is within camera’s surveillance range. The system will trigger the audio detection alarm when sounds like screams, glass breaking, etc. are detected.

Camera
Image device	1/2.7" 2 mega-pixel progressive scan CMOS sensor
Lens	Vari-focal 2.8~12.0mm, DC auto-iris Mechanical IR-cut filter Angle of view : horizontal: 35.8 ~ 100.5 degrees / vertical: 26.8 ~ 73.4 degrees
Min Illumination	0.5 lux (color) @ F1.2 0.1 lux (B/W)
IR Illuminations	IR LED x 12, 850nm Built-in IR illuminators, effective up to 20 meters *The IR distance is based on the environment
Effective Pixels	1920 x 1080 pixels
Video Compression	H.264 / M-JPEG
Video Resolution	1080p mode H.264: 1080[p / 720p / 640 x 360 / 320 x 180 M-JPEG: 1080p / 720p / 640 x 360 / 320 x 180 720p mode H.264: 720p / 640 x 360 / 320 x 180 / 160 x 80 M-JPEG: 720p / 640 x 360 / 320 x 180 / 160 x 80
Frame Rate	Up to 30fps for all resolutions
Image Setting	AE, AWB 3D noise reduction WDR Color, hue, brightness, sharpness, contrast Mirror/Flip 90o rotation De-fog Anti-false color Lens distortion correction 10 privacy masks Text, time and date overlay Overlay image on video
Streaming	Simultaneously multi-profile streaming Streaming over UDP, TCP, HTTP, or HTTPS M-JPEG streaming over HTTP (server push) Controllable frame rate and bandwidth Constant and variable bit rate (H.264) AOI ROI
Audio
Audio Streaming	Two-way audio
Audio Compression	RTSP: G.711 64kbps, G.726 32kbps
Microphone	External microphone input
Audio Output	Adjustable audio output gain
Network and Configuration
Standard	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX
Protocol	IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, Samba, ICMP, SNMP, QoS
Security	Password protection, IP address filtering, HTTPS encrypted data transmission, user access log
Users	8 clients on-line monitoring at the same time
System Integration
Application Programming Interface	Open API for software integration ONVIF Compliant
Alarm Triggers	Intelligent motion / tampering / audio detection / network disconnect and external input
Alarm Events	File upload via FTP, Samba to NAS, SD card or email Notification via email, HTTP, and TCP External output activation Audio alerting output
Video Buffer	Pre- and post-alarm buffering
General
Power Requirement	12V DC, 1A IEEE 802.3af Class 3
Power Consumption	8W max.
Operating Temperature	0 ~ 50 degrees C
Operating Humidity	20 ~ 80% (non-condensing)
Weight	635g
Dimensions (Φ x L)	152 x 109 mm
Emission	CE, FCC
Connectors	10/100 Mbps Ethernet, RJ-45 DC power jack Terminal block for 1 alarm input and 1 output External mic input Audio out Composite video out (max. resolution: D1 720 x 480 pixel)) Micro SD/SDHC card (Max. 32GB, Class 6) Factory default reset button
