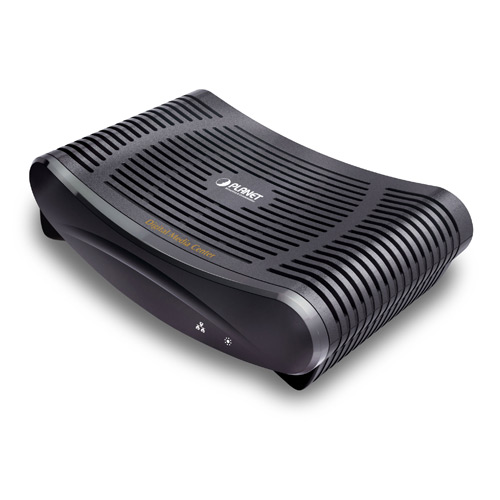

The PLANET Digital Media Center, DMA-200 is an advanced customer premises equipment (CPE) device for delivering streaming audio, video, and data directly from network or Internet on consumers’ TV sets and/or Home Entertainment systems. If you have already set up your local area network or connected to Internet, you can huddle on the sofa using supplied remote control to search and enjoy your favorite pictures, movies, or surf webs but no need to always be seated next to your computer or Home Entertainment systems. Besides connecting your PC/NAS with the network, you can simply plug in your USB devices to access and play the media files via user-friendly On-Screen Display (OSD) menu.
In order to meet your need of surfing Internet on TV, the DMA-200 provides web browser, bit torrent download and Internet radio function so you can freely choose these features and enjoy amazing variety of Internet video contents.
With the fascinating features, the DMA-200 provides advanced MPEG1/2/4 video and MP3 audio compression algorithms and can deliver content streams with optimal quality over networks with limited bandwidth. The PLANET DMA-200 provides an immersive way of managing and interacting with your entertainment library so that you are able to explore your complete digital collections of music, photos, and videos in a single window. The DMA-200 is a powerful Digital Media Center supporting Standard and High Definition (HD) video, audio/video playback, web browsing and a myriad of media applications.
| | |

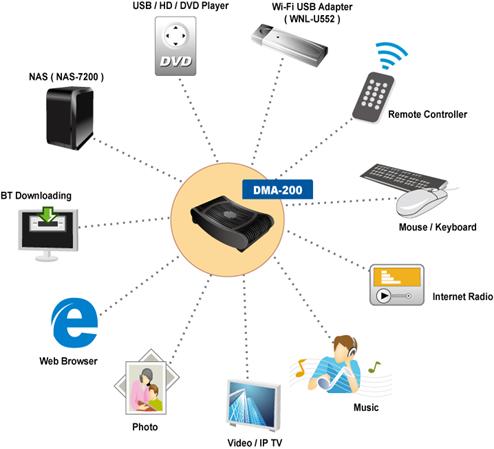

| Bring You Digital Life Anywhere & Anytime | | | | | | | Watch the digital music videos, movies and photos on any TV in your home without running wires. With elegant and easy-to-navigate menu screens, you can view family slide shows, browse your music collection by cover art, listen to entire playlists, or choose from a vast selection of Internet TV/Radio stations all over the world. | | | | | |
• UPnP AV / DLNA / HomePlug AV Compliant
• Integrated Gigabit Ethernet & S/PDIF
• Full HD (1080) & HDMI
• Multi-Language & Multi-Media Formats
• Stream videos, music and photos
• Internet Browser & BitTorrent
• Favorite Web TV / Photo / Radio Station Galley
• Wizard Easy Setup & User-friendly Graphical On-Screen Menu | | |
| Hardware Specification |
| Port |
• Video Output
HDMI (480p, 576p, 720p50, 720p60, 1080i50, 1080i60, 1080p60)
S-Video/Component Video, Composite (CVBS)
• Audio Output
Audio (Right, Left), S/PDIF (Coaxial)
• Ethernet
1 Ethernet:10/100/1000Mbps, Half or Full Duplex, Auto-negotiation, Auto MID/MID-X
• USB
1 USB 2.0 Host (External Storage, CD/DVD-ROM, keyboard and mouse support) |
| LED Indicators |
1 Power LED light on front panel
1 Network LED light on front panel
|
| Power Switch |
1 Power On / Off Switch on rear panel |
| Software Specification |
| Digital Home Standard |
UPnP 1.0, DLNA 1.0 |
| Web TV / Radio Protocol |
RTSP, HTTP, MMS |
| Media Format |
Audio: MPEG 1 Layer 1/2, MP3, MPEG 2 AAC, MPEG 4 AAC, AC3, WMA, and WMA Pro
Video: Full HD 1080 Resolution, MPEG1/2/4 SD/HD, AVI, H.264 HD, WMV9, VC1, and Divx / Xvid
Pictures: JPEG, TIFF, PNG, GIF, and BMP |
| Content Protection |
MSFT DRM |
| Content File Format |
mkv, avi, wmv, iso, ifo, mp4, vob, asf, m2ts, mov, tp, ts, and mpg |
| Support Sub-Titles |
Text: srt, ssa, and idx
Image: sub
|
| Languages Support |
English, German, French, Italian, Spanish, Portuguese, Turkish, Netherlands, Serbian, Hebrew, Traditional Chinese and Russian |
| Minimum Requirements |
| Operation System |
Windows 2000 / XP / Vista |
| Utility System Requirements |
• 1.8GHz Processor or higher
• 512MB RAM or above (512MB recommended)
• HD space at least 1 GB free for installation
• Microsoft DirectX 9 or above
• Windows 2000 or above
• Windows Media Player 9 or above |
| Environmental |
| Dimension (W x D x H) |
200 x 120 x 55 mm |
| Weight |
620 g |
| Cables |
AV (RCA) cable 1.5m
HDMI cable 1.5m (Black)
Ethernet cable 1.5m (Blue)
|
| Power |
5V DC, 2.6A |
| Operating Temp. |
0 ~ 45 Degree C |
| Storage Temp. |
-25 ~ 55 Degree C |
| Operating Humidity |
10 ~ 90% Non-condensing |
| Storage Humidity |
10 ~ 90% Non-condensing |
| Emission |
FCC, CE |
Datasheet
| Date |
Version |
Description |
Download |
| 2009-02-06 |
1.0 |
DMA-200 |
 |
Firmware
| Date |
Version |
Description |
Download |
| 2009-07-30 |
v1.13.05.10 |
1. Enable BT function
2. Fix web browser cannot be excuted |
 |
User's Manual
| Date |
Version |
Description |
Download |
| 2008-09-19 |
1.0 |
User's Manual |
|
Utility
| Date |
Version |
Description |
Download |
| 2008-10-03 |
1.05.03 |
Initial Release for DMA-200 |
|
EC Declaration
| Date |
Version |
Description |
Download |
| 2009-07-17 |
1.1 |
EC Declaration |
|
| 2008-09-25 |
1.0 |
EC Declaration |
| |
|
