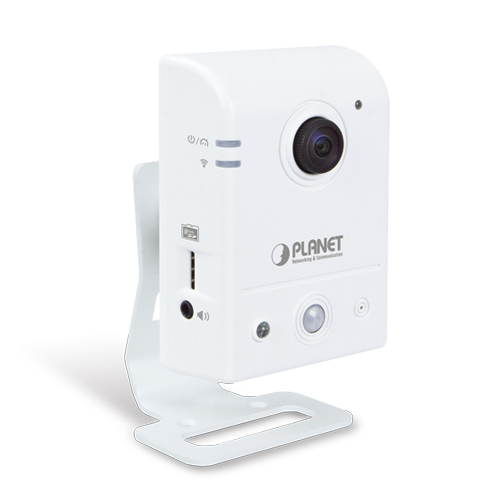

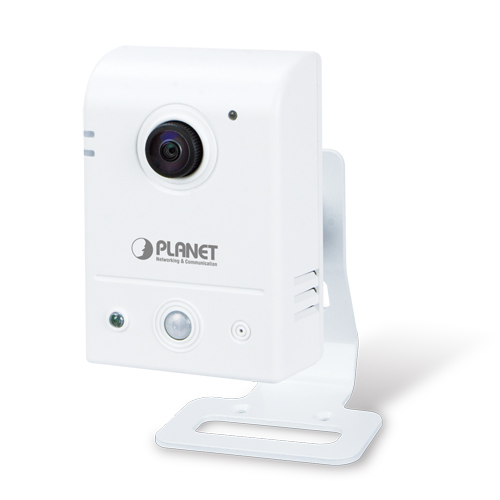

ICA-W8100

Wireless Cube Fish-Eye IP Camera

Overview
Application
Key Features
Specification

Compact Wireless Panoramic Camera for Wide View Surveillance

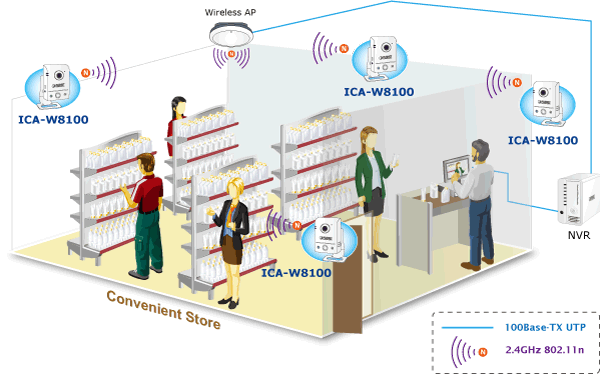

The PLANET ICA-W8100 is a compact cube camera providing 180 degree panoramic wide angle view, especially designed for indoor surveillance. Incorporating 1.3MP-resolution sensors, it supports H.264, MPEG-4, and JPEG compression formats and delivers excellent picture quality in up to 1280 x 720 pixels (720P) at 25 frames per second (fps). The unique design makes it the ideal solution to surveillance applications in boutiques, stores or restaurants.

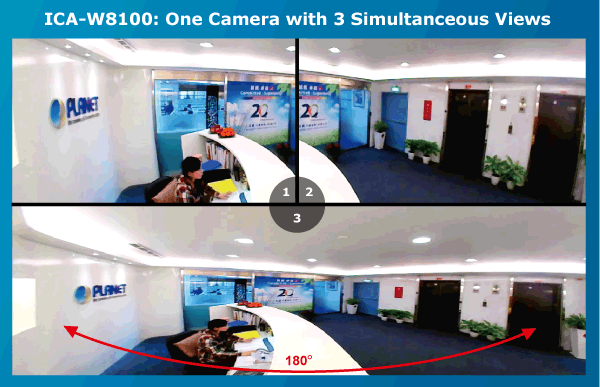

Wider Monitoring with 180º Panoramic View
The ICA-W8100 wireless fisheye camera allows you to monitor all angles of a location using just one camera, thus saving lots of traditional mechanical Pan/Tilt maintenance effort. The distorted hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection. Without the need of installing any other software, with the ICA-W8100, you can watch live view and utilize functions such as motion detection through the Web interface via an IE browser.

Efficient Event Management
The ICA-W8100 is designed with a built-in Passive InfraRed (PIR) motion detection sensor able to detect movement far from 5 meters away. When people pass by or an emergency happens in the specified areas, the ICA-W8100 will “detect” and start recording automatically. Furthermore, it provides an additional function of alarm notification that can send the captured images to the micro SD/SDHC card slot for local storage.

Enhanced Video Quality and 2-Way Audio Support
The ICA-W8100 provides the industry a more comprehensive set of performance enhancing features including Auto Electronic Shutter (AES) and Auto White Balance (AWB). Besides, the ICA-W8100 supports 2-Way audio to strengthen the event management capabilities.

High Quality Streaming via 11n Wireless Connectivity

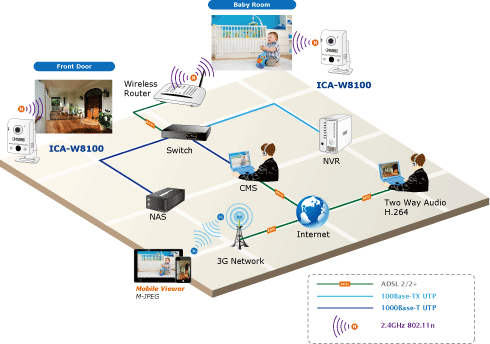

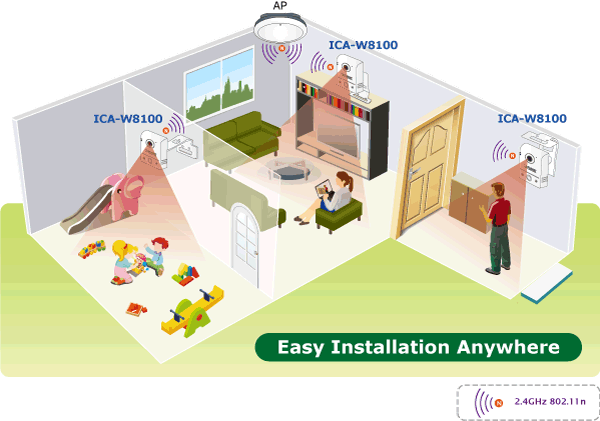

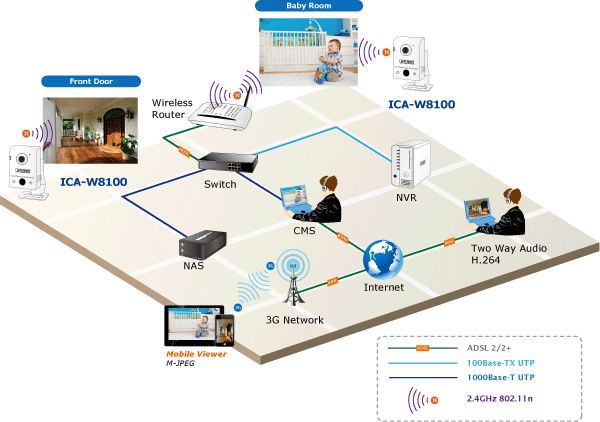

The ICA-W8100 adopts IEEE 802.11n wireless technology to communicate at maximum wireless signal rate and ensures secure transmission with WEP and WPA encryptions. It allows you to stream high quality video to remote sites and mobile devices. A Site Survey feature also allows you to view and connect to nearby wireless networks with ease. Complying with ONVIF, the ICA-W8100 is therefore interoperable with the third brand camera in the market, which greatly supports users to integrate with their existing surveillance network. It also includes 64-CH central management software for ease of maintenance and remote monitoring. The ICA-W8100 is indisputably the top choice for reliable and high performance surveillance.

Camera
Image Device	1/4" 1.3 Mega-Pixel progressive scan CMOS sensor
Lens	Fish-Eye Lens, 185.5/145/>=200° (H/V/D), F= 2.0, f=0.89 mm
Min. Illumination	0.5 lux @ F2
Effective Pixels	1280 x 720 pixels (16:9)
PIR Sensor	Built-in 5m / 70 Degree Coverage
Video
Video Encoder	H.264 / MPEG-4 / M-JPEG
Video Resolution	1280 x 720 @ 25 fps 640 x 360 @ 30 fps 320 x 180 @ 30 fps
Frame Rate	Up to 30fps (60Hz) / 25fps (50Hz)
Image Setting	AE, AWB, Brightness, Saturation, Contrast, Mirror/Rotate, Color/BW
Streaming	Simultaneously multi-profile streaming Streaming over UDP, TCP, or HTTP M-JPEG streaming over HTTP (server push) Controllable frame rate and bandwidth Constant and variable bit rate (M-JPEG / H.264)
Rate Control	CBR (Constant Bit Rate) VBR (Variable Bit Rate)
UI Layout	180° Single Broad View 2 PTZ Mode 180° Broad View + 2 PTZ Mode
Audio
Audio Streaming	2-Way Audio
Audio Compression	RTSP: G.711 64kbps
Microphone	Built-in Microphone
Audio Output	Line Out for extra speaker
Network and Configuration
Network Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.11b/g/n
Network Protocol	IPv4, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba
Antenna connector	1 x 3dBi (Max)
Frequency	2.4GHz
RF Transmission Power	OFDM: 13dBm CCK: 17dBm
Output Power	802.11n: 13dBm(default) +/- 1dBm 802.11g: 13dBm(default) +/- 1dBm 802.11b: 17dBm(default) +/- 1dBm
Data Rate	802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: up to 150Mbps
Security	Password protection / WEP and WPA Encryption
Users	Depends on streaming data rate used
System Integration
Application Programming Interface	Open API for software integration ONVIF
Alarm Triggers	Intelligent video motion detection and PIR sensor
Alarm Events	File upload via FTP, e-mail or Micro SD/SDHC card Notification via e-mail, Mobile APP, and HTTP
Environment
Power Requirement	5V DC, 2A
Power Consumption	6W (5VDC)
Operating Temperature	0 ~ 45 Degrees C
Operating Humidity	20 ~ 80% (non-condensing)
Weight	134g
Dimensions (W x D x H)	70 x 39 x 99 mm
Emission	CE, FCC

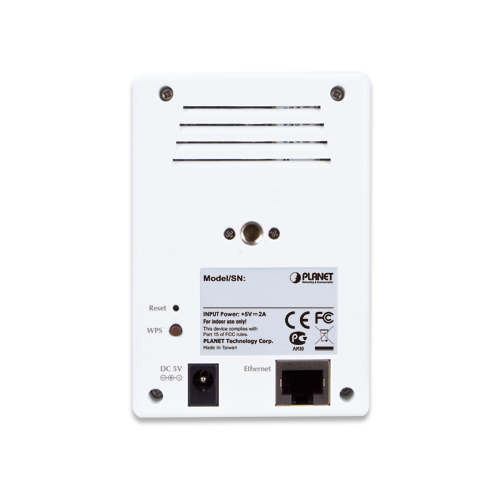

Connectors	10/100 Mbps Ethernet, RJ-45 DC power jack Audio out Micro SD/SDHC card (Max 32GB, Class 6) WPS Button Factory default reset button

Ordering Information
ICA-W8100	Wireless Cube Fish-Eye IP Camera
ICA-W8100-CLD	Wireless Cube Fisheye IP Camera
