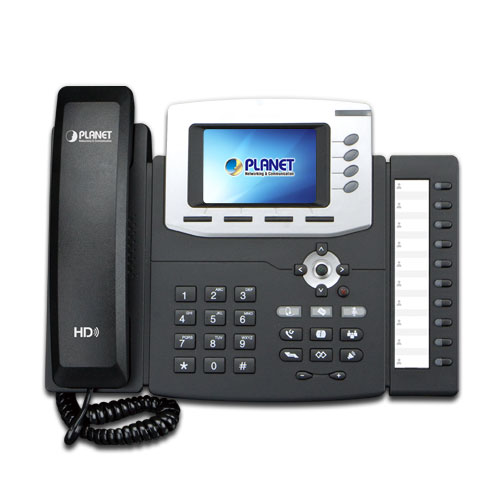

Cost-effective, High-performance PoE VoIP Phone

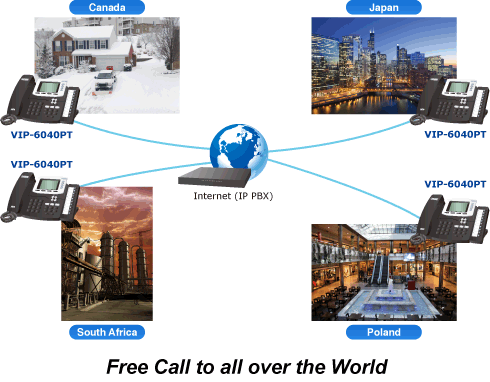

To build high-performance VoIP communications at a low cost, PLANET has launched a new member of its IP Phone family, the VIP-6040PT enterprise-class 4-Line PoE IP Phone. It complies with IEEE 802.3af PoE interface for flexible deployment. The VIP-6040PT, featuring voice and data system where the earlier feature can be included in new locations, makes it simple for enterprises. It helps enterprises to save money on long-distance calls; for example, the remote workers can dial in through a Unified VoIP Communication System just like an extension call but no long distance call charge would occur. The VIP-6040PT also allows call to be transferred to anyone at any location within the voice system, which enables the enterprise to communicate more effectively and is helpful to streamline business processes.
| | | | | | | | | | | | | | Color Screen

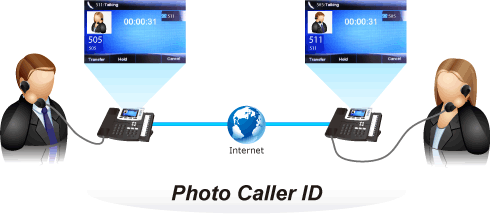

The VIP-6040PT is an innovative, enterprise-level, color IP phone that enables user to use the photo caller ID function (upload photo to identify the extension user). When in the sleep mode, the photo user wants to be shown on the color screen can be had automatically, thereby making communication colorful.
| | | | | | | | | | | | | | | | | | | | | High-quality HD VoIP Voice
The VIP-6040PT delivers HD voice whose both hardware and software HD functions (HD speaker and G.722. HD codec) is the next generation of voice quality for telephony audio, making the quality of voice better than that (toll quality) of the standard digital telephony and come close to that of a room conversation. HD voice is transmitted in the audio frequency range of 50 Hz to 7 kHz or higher over telephone lines, resulting in higher quality voice and clearer communication.
| | | | | | | | | | | | | | Standard Compliance
The VIP-6040PT supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The VIP-6040PT is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.
| | | | | | | | | | | | | | Enhanced, Full-Featured Business IP Phone
The VIP-6040PT is a full-featured enhanced business IP Phone that addresses the communication needs of the enterprises. It provides 4 voice lines and dual 10/100/1000Mbps Ethernet. Furthermore, the VIP-6040PT delivers user-friendly design containing a 480 x 320 color LCD.
The VIP-6040PT supports all kinds of SIP-based phone features including 5-way conferencing, Transfer (blind/attended), Phonebook , Black list XML , LDAP phonebook, Screen Sleep, SMS / Voicemail / Message Waiting, Ring tone selection / Import / Delete, STUN, UPnP and SNMP, among others. Besides office use, the VIP-6040PT is also the ideal solution for VoIP service offered by Internet telephony service provider (ITSP).
| | | | | | | | | | | | | |

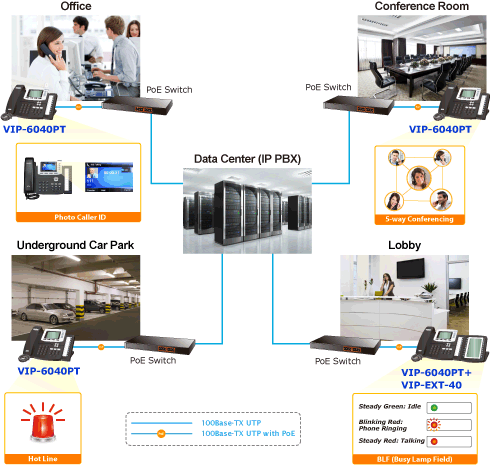

Professional IP Telephony System Deployment with the VIP-6040PT
The VIP-6040PT is much easier to install and configure than the traditional phone system. Its color screen and high-definition voice quality make your communication wonderful. Base on standard SIP 2.0, it is compatible with all the standard SIP-based servers.
| | | | | | | | | |
Highlights- Dual 10/100/1000 Gigabit Ethernet
- Supports SIP 2.0 (RFC3261)
- 5-way Conferencing
- IEEE 802.3af Power over Ethernet compliant
- Color screen and sleep mode
- Supports HD voice
- Supports Bridged Line Appearance (BLA) and Busy Lamp Field (BLF)

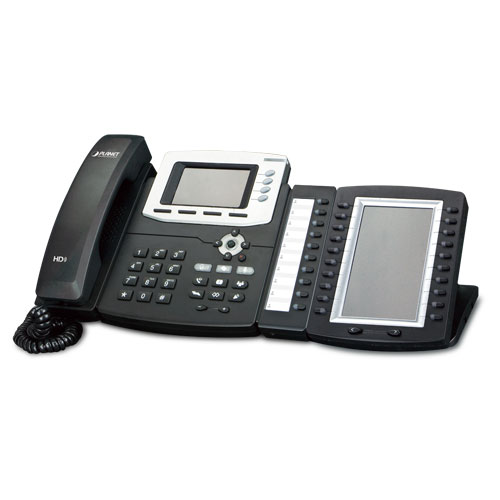

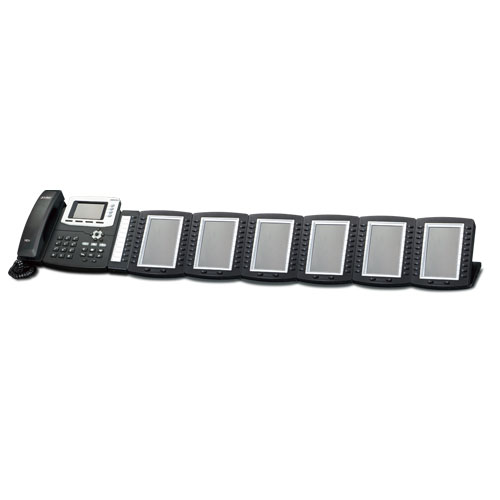

- Supports 6 extension consoles; max. 240 definable keys
- Phonebook / Black list XML /LDAP phonebook
- VLAN QoS (802.1pq)
- TR069 / SNMP
- Multiple Languages
Voice Features- HD wideband codec: G.722 HD codec, HD speaker, HD handset
- Full-duplex speakerphone with AEC
- G.711u/a-law, G.723.1, G.726, G.729A/B.
- DTMF (In-Band, RFC2833, SIP Info)
- Acoustic Echo Cancelation (AEC), Acoustic Gain Control (AGC)
- Voice Activity Detection (VAD), Comfort Noise insertion
Security Features- HTTPS Server/Client
- Transport Layer Security (TLS)
- SRTP (RFC3711), SIPS
- VLAN QoS (802.1pq)
Telephone Features- TCP, UDP, ICMP, RARP, ARP, DNS, NTP,SNTP, STUN, UPnP, SNMP
- 4 VoIP Accounts
- Menu-driven user interface, XML Idle Screen, Theme
- Screen Sleep
- Call Hold, Call Waiting, Call Forward, Call Return
- Redial, Call Transfer
- Caller ID display, DND, Auto-answer
- 5-way Conferencing
- Mute, Speed Dial, SMS, Voicemail, Message Waiting
- Indication (MWI) LED, Call history
- BLF / BLA
- Tone scheme, Volume control
- Ring tone selection/Import/Delete
- Broad and Deep Interoperability
- Soft keys programmable
- Phonebook, Black list XML / LDAP phonebook
Network Protocols- TCP, UDP, ICMP, RARP, ARP, DNS, NTP,SNTP, STUN, UPnP, SNMP
- Static / DHCP / PPPoE
- TFTP / DHCP / PPPoE client
- Telnet / HTTP/ HTTPS server
Maintenance and Management- Auto-provision via FTP/TFTP/HTTP/HTTPS
- Upgrade via Browser/Phone/Auto-provision
- TR069
| | |
| Hardware |
| Lines (Direct Numbers) |
Gigabit Color LCD HD PoE IP Phone (4-Line) |
| Display |
3.5" TFT-LCD, 480 x 320 pixel, 262K colors |
| Feature Keys |
47 keys including 14 programmable keys |
| Network Interfaces |
2 x 10/100/1000Base-T RJ-45
Auto Negotiation, Auto MDI,
Network port with 802.3af PoE support
Handset: 1 RJ9 (4P4C)
Headphone: 1 RJ9 (4P4C)
|
| Protocols and Standard |
| Data Networking |
MAC Address (IEEE 802.3)
IPv4 (RFC 791)
Address Resolution Protocol (ARP)
DNS: A record (RFC 1706), SRV record (RFC 2782)
Dynamic Host Configuration Protocol (DHCP) client (RFC 2131)
Internet Control Message Protocol (ICMP) (RFC 792)
TCP (RFC 793)
User Datagram Protocol UDP (RFC 768)
Real-time Protocol RTP (RFC 1889, 1890)
Real-time Control Protocol (RTCP) (RFC 1889)
Differentiated Services (DiffServ) (RFC 2475)
Type of service (ToS) (RFC 791, 1349)
VLAN tagging 802.1p Layer 2 quality of service (QoS)
Simple Network Time Protocol (SNTP) (RFC 2030)
Backward compatible with RFC 2543
Session Timer (RFC 4028)
SDP (RFC 2327)
NAPTR for SIP URI Lookup (RFC 2915)
|
| Voice Gateway |
SIPv2,
SDP (RFC 2327), RTP (RFC 1889,1890), RTCP
RFC 2833 X-NSE Tone Events for SIP/RTP, AVT Tone
Events for SIP/RTP
|
| Function |
| Voice Codec |
HD wideband codec: G.722. HD codec, HD speaker, HD handset
Full-duplex speakerphone with AEC
G.711u/a-law, G.723.1, G.726, G.729A/B.
DTMF (In-Band, RFC2833, SIP Info)
Acoustic Echo Cancelation (AEC)
Acoustic Gain Control (AGC)
Voice Activity Detection (VAD)
Comfort Noise insertion
|
| Security |
HTTPS Server / Client
Transport Layer Security (TLS)
SRTP (RFC3711), SIPS
VLAN QoS (802.1pq)
|
| Telephone Features |
4 VoIP Accounts
Menu-driven user interface, XML Idle Screen, Theme,
Screen Sleep
Call Hold, Call Waiting, Call Forward, Call Return,
Redial, Call Transfer
Caller ID display, DND, Auto-answer, 5-way Conferencing
Mute, Speed Dial, SMS, Voicemail, Message Waiting
Indication (MWI) LED, Call history
BLF / BLA
Tone scheme, volume control
Ring tone selection / Import / Delete
Broad and Deep Interoperability
Soft keys programmable
Phonebook, Black list XML/LDAP phonebook
|
| Network Protocol |
TCP, UDP, ICMP, RARP, ARP, DNS, NTP, SNTP, STUN, UPnP, SNMP
Static / DHCP / PPPoE
TFTP / DHCP / PPPoE client
Telnet / HTTP / HTTPS server
|
| Management |
Auto-provision via FTP / TFTP / HTTP / HTTPS
Upgrade via Browser / Phone / Auto-provision
TR069
|
| Environments |
| Power Requirements |
5V DC, 1.2 A
IEEE 802.3af Power over Ethernet
|
| Operating Temperature |
-10 ~ 50 degrees C |
| Operating Humidity |
10 ~ 95% (non-condensing) |
| Weight |
980g |
| Dimensions (W x D x H) |
268.5 x 240 x 40 mm |
| Emission |
CE, FCC |

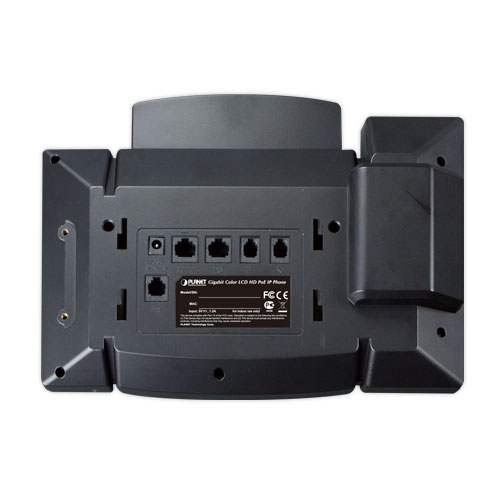

| Connectors |
Two 10/100/1000Base-T RJ-45 Ethernet ports
Handset: RJ-9 connector
Headphone: RJ-9 connector
RJ-11 ext. connector (future feature)
DC power jack |
