High-definition Voice Conferencing for Rooms of Any Size

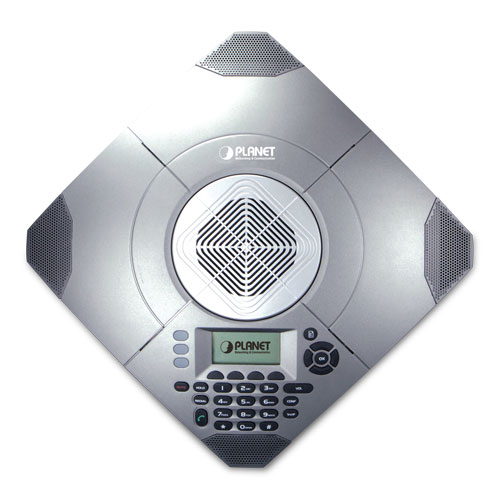

In a world where conference calls with partners, vendors, remote workers and global teams are on the rise, PLANET VIP-8030NT HD voice conference IP phone is perfectly designed for use in middle to large conference rooms. The VIP-8030NT delivers superb voice quality, expansive microphone pickup and advanced audio processing. Its integrated, special microphones ensure that your interlocutors feel as if you are sitting in the neighboring office, not on the other side of the world!
| | | | | | | | | | | | | | Extended Microphone Makes Communication Clearer
Although there are four microphones built in the VIP-8030NT, the communication between the two speakers could be unclear over a long-distance call. However, with the extended microphone, this problem could be solved. The extended microphone also provides a quick button to isolate speaker’s voice, thereby the speakers will not be interrupted by an unknown third party.
| | | | | | | | | | | | | | Recorded Conference Contents Saved on SD Card

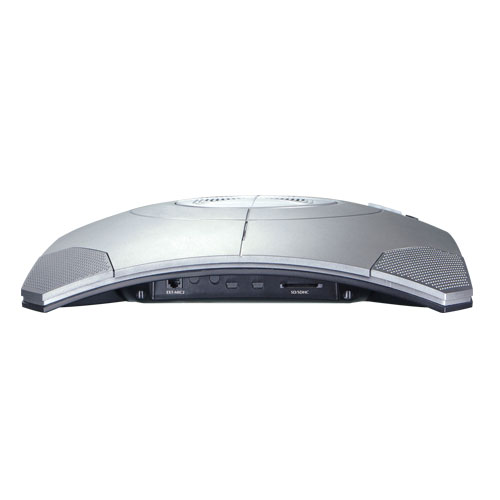

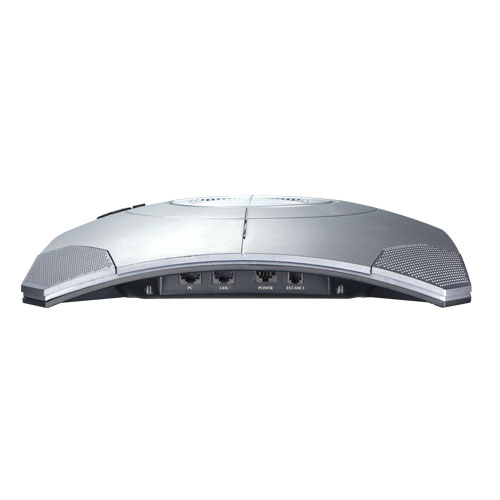

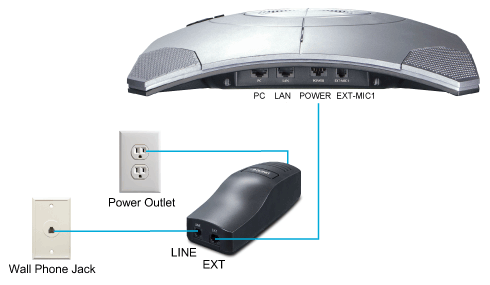

The VIP-8030NT transmits power and voice over the RJ45 cable and has a special specification that helps to avoid an incorrect cable plug-in. The VIP-8030NT can start a conference with the RJ45 cable, meaning no extra cable is necessary. The contents of the conference can be recorded and saved on the SD card, where the recorded contents can be played.
| | | | | | | | | | | | | |

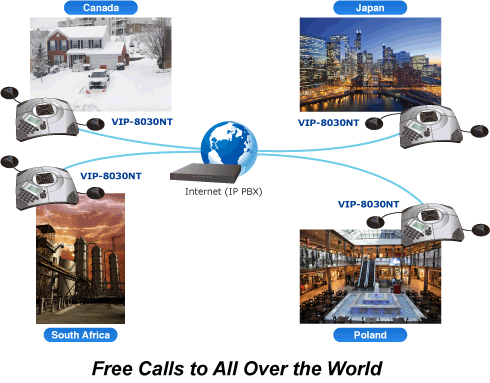

VoIP Conference Call
The VIP-8030NT provides audio conference service to any meeting room and auditorium. Its built-in SD card slot helps record any important meetings.
| | | | | | | | | | | | | | IP PBX Mode
The VIP-8030NT features IP PBX mode to deliver voice over a network and interoperates with the normal Public Switched Telephone Network (PSTN).
| | | | | | | | | |
Highlights- Supports 3 SIP voice lines
- Supports HD voice
- 128 x 64 pixel LCD display with ivory backlight
- 3-way conferencing
- Echo cancellation, hi-fi technology of wideband voice communication
- Connection type for add-on microphones for a larger recording range
Network Protocol- SIP V1 (RFC2543), V2 (RFC3261)
- Voice codec support: G.711, G.726, G.729, iLBC, GSM
- Supports STUN, outbound proxy
- Static IP/DHCP for IP configuration
- 3 DTMF modes: In-band, RFC2833, SIP info
- HTTP/HTTPS Web server for management
- NTP for auto time setting
Telephone Features- Supports 3 SIP accounts
- Built-in SD card slot
- Recording file can be played on the unit
- Speaker volume with adjustable 14 levels reaches 90db
- Call Hold, Call Waiting, Call Forward, Hotline
- Caller ID display, DND, auto-answer
- Stores 64 groups of incoming calls and outgoing calls
- FSK/DTMF Caller-ID detection and display
- Intelligent speech mixer and dynamic noise suppression
| | |
| Hardware |
| Port |
LAN
1 x 100BASE-TX RJ45 for LAN
PC
1 x 100BASE-TX RJ45 for PC
EXT-MIC
2 x RJ9 for microphone |
| Audio Input |
4 x microphone |
| Audio Output |
1 x full duplex hands-free speakerphone |
| LED Indicator |
4 x power LED
3 x SIP LED
|
| Software |
| Audio Standard |
G.711, G.726, G.729, iLBC, GSM |
| Network Protocol |
SIP 2.0 RFC 3261,TCP/IP, UDP, RTP,HTTP, ARP, ICMP, DNS, DDNS, DHCP (client), NTP, Telnet |
| Echo Cancellation |
G.168 |
| Access Mode |
Static IP, PPPoE, DHCP |
| Phone Features |
| Network |
DHCP Client on LAN
Main DNS and secondary DNS server
NTP Client
QoS with DiffServ
|
| Basic Feature |
3 SIP servers
Voice Gain Setting, VAD, CNG
Supports jitter buffer
Supports SIP domain, SIP authentication (none, basic)
DNS name of server, peer to peer/IP call
DTMF relay: supports Inbound, SIP info, RFC2833
Supports STUN
Volume adjustment
Professional speaker and HD voice
|
| SIP Applications |
Call Forward
Call Transfer (blind/attended/alert)
Call Holding
Call Waiting
Call Paging and Intercom
Call Park/Pickup
Redial
Click to dial
|
| Call Control Features |
Do not disturb (DND)
Auto answer
Caller ID
Dial without registration
|
| Advanced Applications |
Friendly graphic menu
Voice recording during talking, auto answer and local
incoming calls, outgoing calls and missing calls
Supports phonebook of 140 records
|
| Management |
Web and keypad management
Management with different access rights
Automatic upgrades/configuration deployment
|
