Long Distance Analog Surveillance Transmission System
To deploy AHD/CVI/TVI/CVBS analog camera in a remote place efficiently and provide high video quality and reliable signal, PLANET has developed the video over Gigabit fiber media converter kit, VF-101G/102G/106G-KIT, which is ideal for extending the distance and signal conversion by transmitting the AHD/CVI/TVI/CVBS video and data over the fiber-optic cable. Adopting the intelligent encoding/decoding technology and with the compact box, the VF-101G/102G/106G-KIT video over fiber media converter enables videos to be delivered in high quality over a distance of up to 20km long. |
| |
| |
| |
|
| |
| |
| |

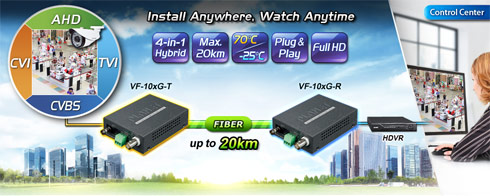

Fiber Optic Communication for Video and Serial Data

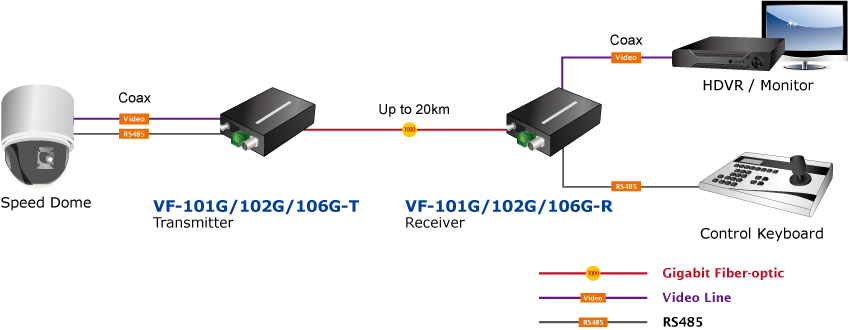

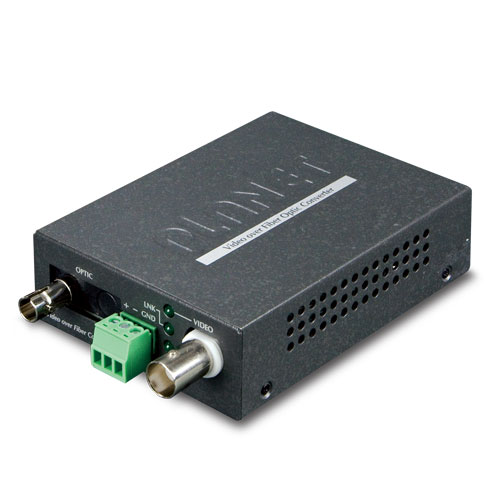

This Video over Gigabit Fiber Converter kit consists of a Video Transmitter and a Video Receiver:

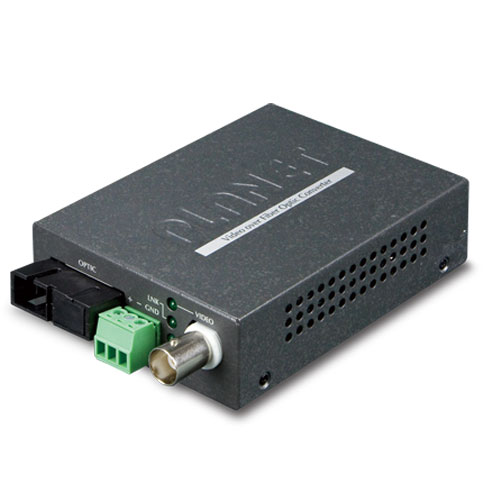

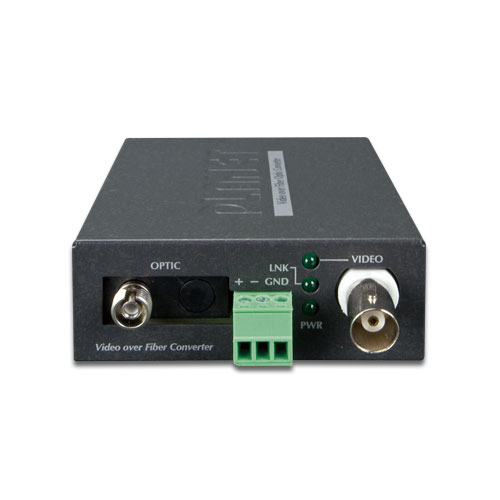

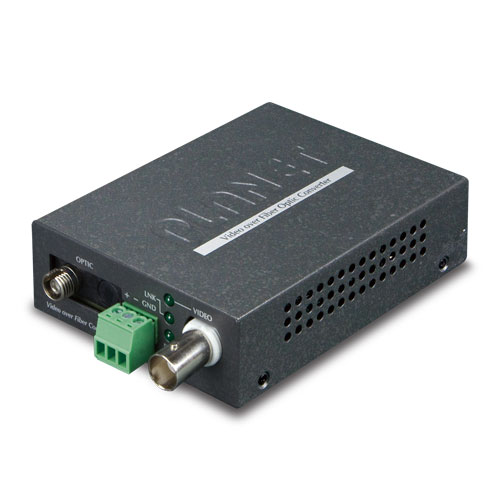

- VF-101G/102G/106G-T: 1-channel Video over Gigabit Fiber Transmitter
- VF-101G/102G/106G-R: 1-channel Video over Gigabit Fiber Receiver
| | | | | | | The VF-101G/102G/106G-KIT is a digital fiber-optic transmission system that brings users a cost-effective solution for transmission of 1 channel uncompressed digital video and one reverse RS485 async data over one single fiber cable. The VF-101G/102G/106G-KIT is an adjustable free device providing high-quality and real-time video transmission. It can be widely used in intelligent transportation systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts, etc. | | | | | | | | | | | | | |
| The VF-101G/102G/106G-KIT consists of 1 channel video over fiber optic transceiver and receiver to transmit video and RS485 signal through a reliable single mode or single fiber link. It is an ideal cost-effective solution for surveillance system that requires high display quality and high-performance signal transmission over long distances. The VF-101G/102G/106G-KIT can be installed easily by way of “Plug and Play”, meaning the operator does not need to configure the pair of the video over fiber transmission in advance. | | | | | | | | | | | | | | | | | | | | | The transmitter and receiver can work as standalone or can be slotted into a rack-mountable media converter chassis. The flexible and maintenance-free design fits in with different installation environments. With one VF-101G/102G/106G-KIT, video cameras can be deployed over a distance of up to 20km, which ideally suits the following applications:
- Intelligent Transportation Systems (ITS)
- Toll Collection
- Traffic Surveillance
- Air Traffic Management (ATM)
- Rail Signaling
- Perimeter Alarms and Area Monitors
- Telemedicine and Teleconference
- Industrial Surveillance
- Intelligent Buildings
| | |
- Compliant with hybrid video (AHD/TVI/CVI/CVBS)
- Long-distance data transmission of 20km
- Status indication for power supply, optical signal and video
- High-speed synchronous digital transmission technology
- Guarantees safe transmission under poor electromagnetic environment
- Video and data transmission over Gigabit fiber optic cable
- PAL, NTSC, SECAM compatible
- Data type: RS485
- 8-/10-bit digital Video Signal sampling
- Standalone or work with PLANET MC-700/1500/1500R media converter chassis
- Compact size, wall-mount design, easy installation
| | |
| Video Characteristics |
| Video Channel |
1 channel bi-direction |
| Signal Mode |
NTSC/PAL/SECAM |
| Video Connector |
BNC |
| Supported Video Type |
1080p: AHD/TVI/CVI
480p: CVBS
|
| Video Input/Output Impedance |
75ohm/unbalanced interface |
| Video Input/Output Voltage |
1.0 Vpp/typical peak-to-peak value |
| Video Bandwidth |
60MHz |
| Video Digital Bit Width |
8/10 bit |
| Differential Gain (DG) |
< 1.3% (typical value) |
| Differential Phase (DP) |
< 1.3° (typical value) |
| SNR Weighted |
> 67dB (typical value) |
| Data Interface |
| Data Channel |
1 channel |
| Physical Protocol |
RS485 |
| Operation Mode |
Simplex |
| Data Connector |
3 Pin terminal block with screw clamps |
| Data Rate |
DC-115.2Kbps |
| Bit Error Rate (BER) |
< 10ns |
| Optical Interface |
| Optical Connector |
VIP-101G-KIT | VIP-102G-KIT | VIP-106G-KIT |
| Distance |
20km for single mode |
| Optical Wavelength |
VF-101G-T | VF-102G-T | VF-106G-T |
| Launch Power (dBm) |
Max.: 0, Min.: -9 |
| Receive Sensitivity (dBm) |
-26 |
| Max. Input Power (dBm) |
-3 |
| Cable |
9/125μm single mode cable |
| Hardware Specifications |
| LED Indicators |
- Power
- Video
- Link (fiber optic)
|
| Dimensions (W x D x H) |
94 x 70 x 26 mm |
| Weight |
200g |
| Power Requirement |
5V DC, 2A |
| Power Consumption |
4.8 watts (maximum) |
| Mechanical |
Metal |
| Installation |
Wall-mountable, DIN-rail (with optional kit), chassis installation (with optional chassis) |
| Compatible Converter Chassis |
MC-700/MC-1500/MC-1500R |
| Standards Conformance |
| Regulatory Compliance |
FCC, CE |
| Environment |
| Operating |
Temperature: -25 ~ 70 degrees C
Relative Humidity: 0 ~ 95% (non-condensing)
|
| Storage |
Temperature: -30 ~ 80 degrees C
Relative Humidity: 0 ~ 95% (non-condensing)
|
| Standard Accessories |
| Packet Contents |

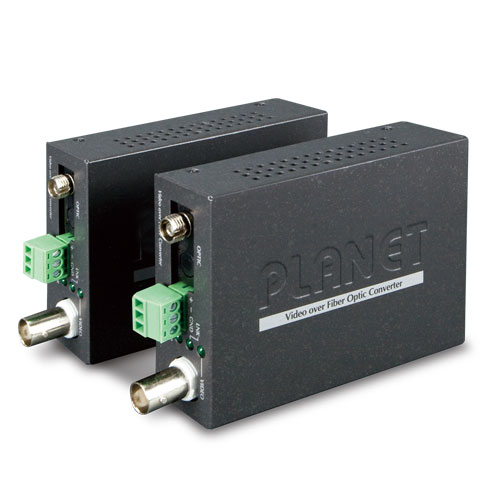

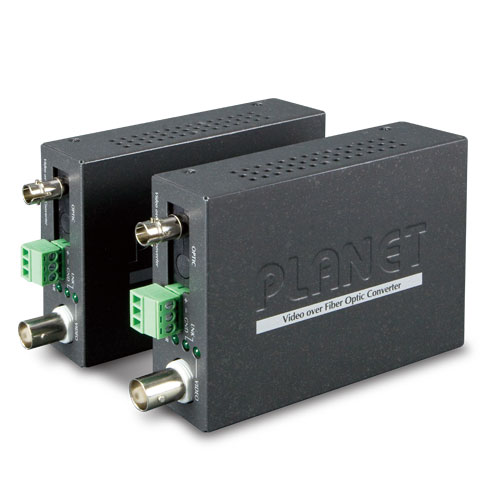

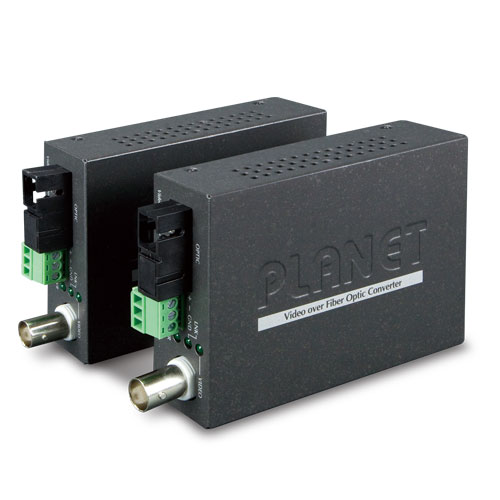

VF-101G/102G/106G-T x 1
VF-101G/102G/106G-R x 1
User’s manual x 1
5V/2A power adapter x 2
|
|
|
|
