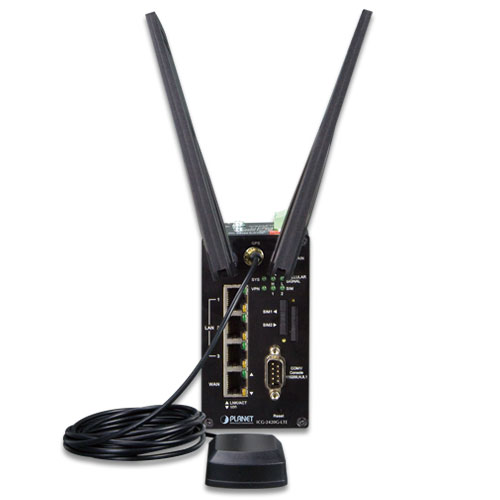

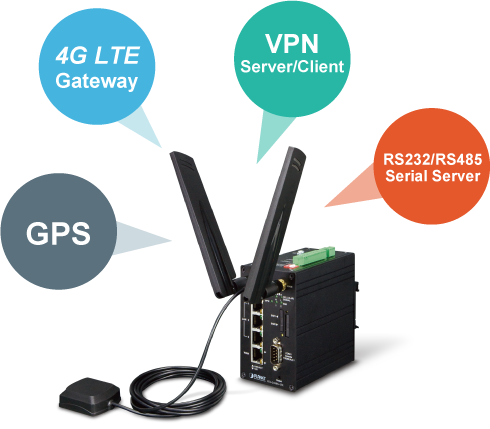

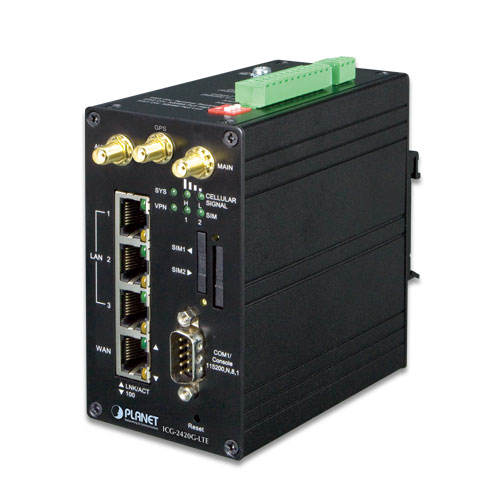

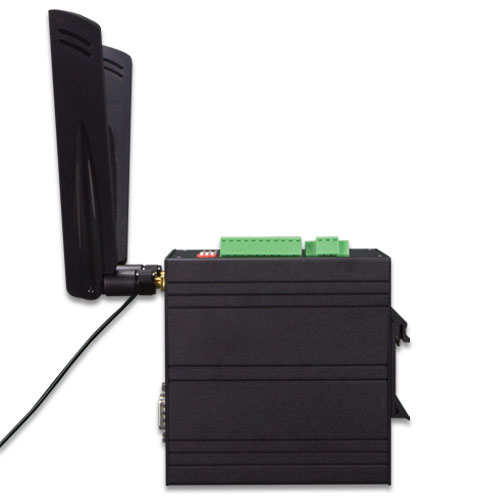

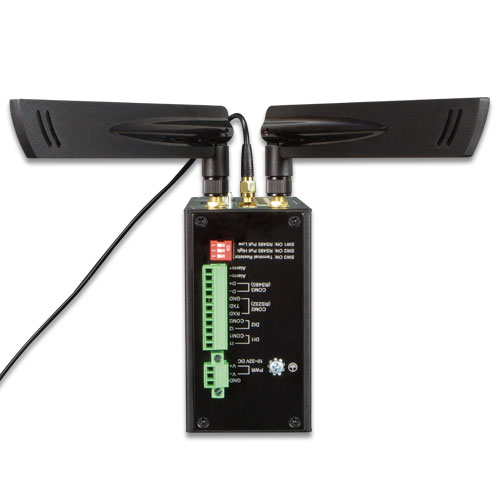

PLANET ICG-2420G-LTE is a reliable, secure and high-bandwidth communications industrial-grade cellular gateway for demanding mobile applications, M2M (machine-to-machine) and IoT deployments. It features 4G LTE (Long Term Evolution), four Ethernet ports (3 LAN and 1 WAN), serial ports, DI and DO interfaces and VPN technology bundled in a compact yet rugged aluminum case. It establishes a fast cellular connection between Ethernet and serial port equipped devices.
The ICG-2420G-LTE supports LTE 2x1 DL MIMO technology which can reach a download (DL) speed of up to 150Mbps and an upload (UL) speed of 50Mbps. The Cellular Gateway also supports multi-band connectivity including LTE FDD/TDD, WCDMA and GSM for a wide range of applications.

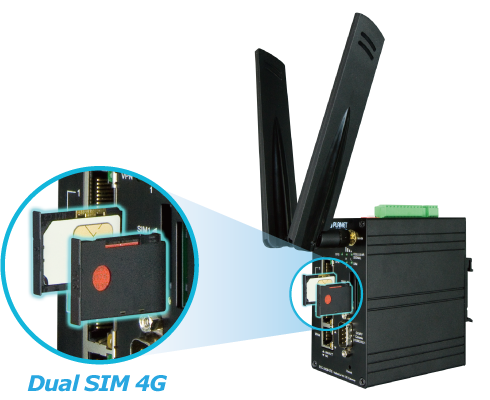

Dual SIM Design

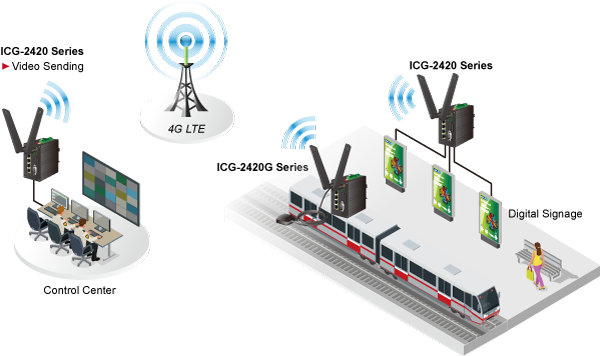

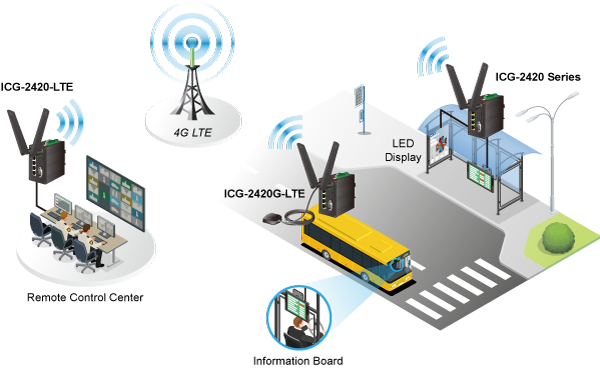

To enhance reliability, the ICG-2420G-LTE is equipped with dual SIM slots that support failover and roaming over to ensure uninterrupted connectivity for mission-critical cellular communications. It provides a more flexible and easier way for users to create an instant network sharing service via 4G LTE whenever in public places like transportation, outdoor event, etc.

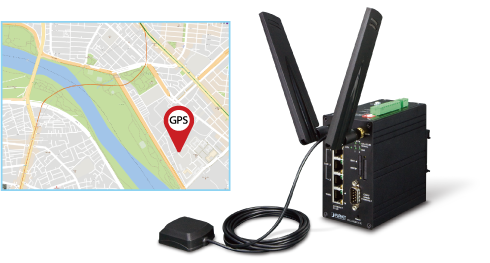

The ICG-2420G-LTE is equipped with one convenient feature and that is GPS (Global Positioning System). It is a positioning system based on a network of satellites that continuously transmit necessary data. More signals transmitted from more satellites can triangulate its location on the ground, meaning any location can be easily tracked anytime.

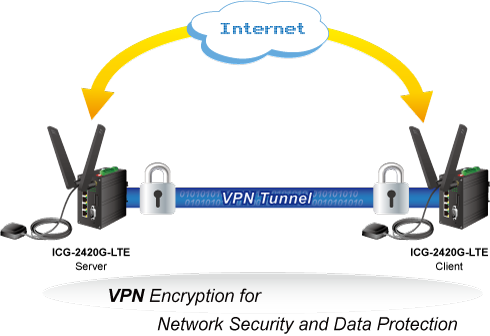

The ICG-2420G-LTE provides a complete data security and privacy feature for access and exchange of sensitive data. The full VPN capability of the ICG-2420G-LTE including built-in OpenVPN and IPSec VPN functions with DES/3DES/AES encryption and MD5/SHA-1 authentication makes the shared connection more secure and flexible. The IPSec VPN also makes the private tunnel over Internet more secure for enterprises doing business transactions.

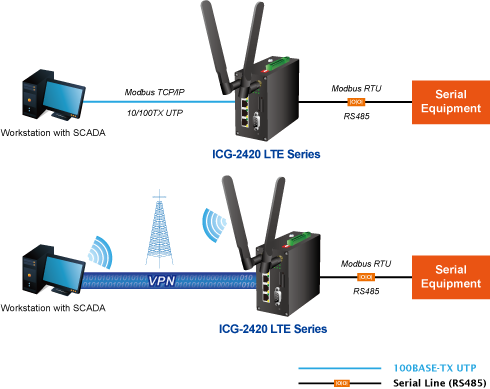

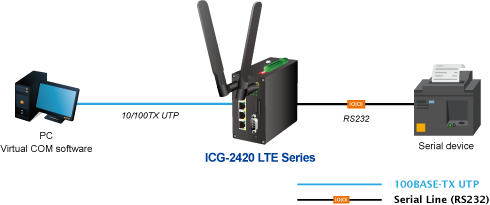

PLANET ICG-2420G-LTE’s serial RS232/RS485 interface can be converted over the Fast Ethernet networking. It can operate as a virtual server or client where IP-based serial equipment can be managed. The ICG-2420G-LTE helps save the network administrator’s valuable time in detecting and locating network problems, rather than visual inspection of cabling and equipment.
PLANET ICG-2420G-LTE adopts 4G LTE cellular technology and thus breaks the 100m limitation of RJ45 transmission. Moreover, wherever there is a cell site, the data rate can be transmitted as far as the distance goes. To avoid data loss affected by an unexpected breakdown connection on the part of ISP, the ICG-2420G-LTE has dual SIM card slots, meaning it can support two different ISPs for redundancy.
| Photo | Model | Description |
 |

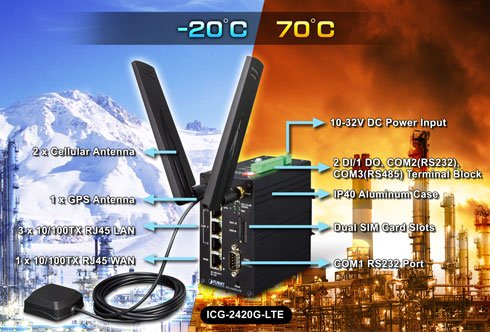

ICG-2420-LTE | Industrial 4G LTE Cellular Gateway with 4-Port 10/100TX (2 SIM Card Slots, 1 RS232, 1 RS485, DI/DO, -20~70 degrees C) |
