| Specificații hardware |
| interfeţe |
Video: VGA Port: D-Sub 15-Pin female port HDMI 1.2
Audio Out: 2.5mm stereo jack
LAN: 10/100Base-TX RJ-45
Wireless LAN: IEEE 802.11n 300Mbps
USB Port: USB 2.0, Type-A, 5VDC / 0.5A output
|
| Antenă |
Gain: 2 x 2dBi RP-SMA detachable antenna
Orientation: Omni-directional
|
| Indicatoare LED |
Green: Power on
Red: Init / firmware upgrade
|
| Material |
Metal |
| Dimensiune (L x Î x H) |
160 x 60.3 x 30 mm |
| Greutate |
312g |
| Putere |
External Power adaptor 5V DC input 2.6A
Multi-type swappable Plug: US / EU / UK / AU |
| Butonul de resetare |
> 10 sec while booting: Reset to Factory Default |
| Specificație interfață fără fir |
| Standard |
Compliance with IEEE 802.11n
Backward compatible with IEEE 802.11b/g |
| Banda de frecventa |
2.412 ~ 2.4835GHz |
| Rata de date wireless |
Up to 300Mbps |
| Canalul wireless |
America/ FCC: 2.412~2.462GHz (11 Channels)
Europe/ ETSI: 2.412~2.472GHz (13 Channels)
Japan/ TELEC: 2.412~2.4835GHz (14 Channels) |
| Primiți sensibilitate |
IEEE 802.11b: 11M -76dBm
IEEE 802.11g: 54M -67dBm
IEEE 802.11n: 65M (HT20) -64dBm
150M (HT40) -61dBm |
| Securitate wireless |
IEEE Standard 64/128 bit WEP / WPA / WPA2-PSK |
| Mod de operare |

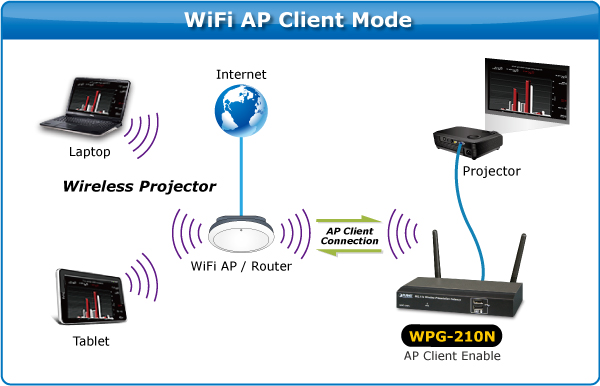

AP (Access Point)

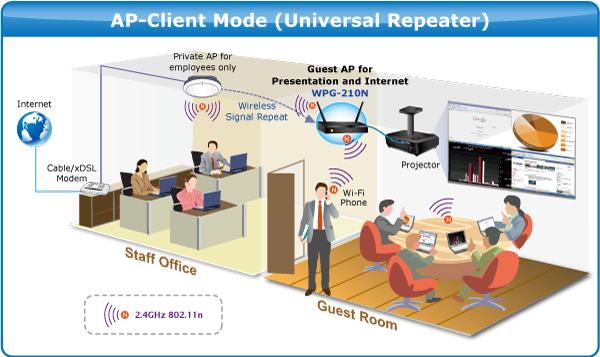

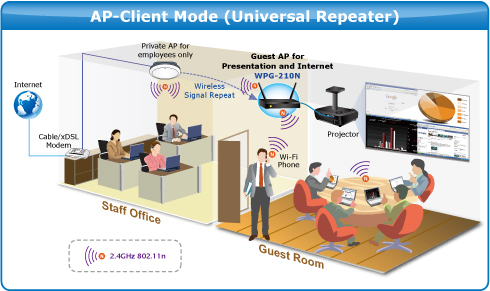

AP-Client |
| Afișaj video |
| Rezoluție PC / Laptop |
SVGA (800x600) / XGA (1024x768)
SXGA (1280x1024) / WXGA (1280x768)
WSXGA (1440x900, 1600x1024) / UXGA (1600x1200)
WUXGA (1920x1200) / QXGA (2048x1536) / Others |
| Rezoluția de ieșire |
VGA:
SVGA (800x600) / XGA (1024x768)
WXGA (1280x768) / WXGA (1280x800)
WXGA (1360x768) / WXGA+ (1440x900)
HDMI:
720p (1280x720)
|
| Managementul sistemului |
| Protocol |
TCP/IP |
| Configurarea IP |
Automatic: DHCP
Manual: Static IP address |
| administrare |
Web-Based configuration |
| Contul Windows acceptat corect |
Administrators
Limited User
Guest |
| Sistemul de operare acceptat |
Windows XP / Vista / 7 / 8
Mac OS X 10.5 and later |
| Caracteristici software |
4-to-1 split screen
Audio Projection
Remote Desktop Control
Virtual Extended Desktop (Windows platform)
Audio Latency Control
Conference Control
Gatekeeper
Advanced Screen Capture (Windows platform) |
| Suport lingvistic |
English
Tradition Chinese
Simplified Chinese
Japanese
Korean |
| Conformitate standard |
| Standardele IEEE |
IEEE 802.11n (2T2R, up to 300Mbps)
IEEE 802.11g
IEEE 802.11b
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX |
| Mediu inconjurator |
| Temperatura |
| Operating: | 0 ~ 40 Degree C | | Storage: | -10 ~ 60 Degree C |
|
| Umiditate |
| Operating: | 10 ~ 90% (Non-Condensing) | | Storage: | 10 ~ 80% (Non-Condensing) |
|
