| Specificații hardware |
| Interfata retea |
One RJ-45 port (10/100BASE-TX Ethernet)

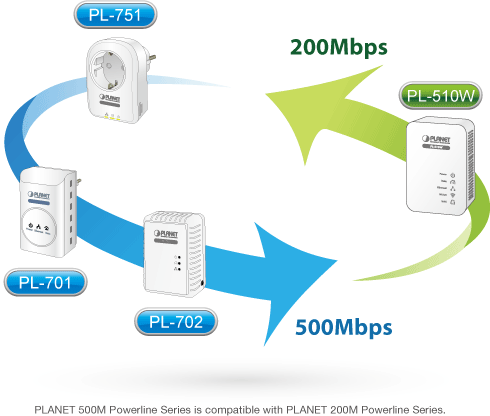

One 500Mbps powerline port supporting co-existence with
HomePlug 1.0 (14/85Mbps)
|
| cablare |
Cat. 5 UTP cable |
| LED |
Power: On / Off
Ethernet: Red / Orange / Green / Off
Data: Solid / Blinking / Off
|
| Buton |
One Pair / Reset button |
| Conformitatea standardelor |
| Interfața computerului |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
|
| Standarde |
IEEE 1901 / HomePlug AV |
| Securitate |
128-bit AES link encryption with key management |
| Rata de date PHY |
500Mbps over powerline and 10/100Mbps over Ethernet |
| Scheme de modulare |
OFDM symbol modulation on line synchronization
1024/256/64/16/8 - QAM, QPSK, BPSK, ROBO carrier
modulation
|
| Banda de frecventa |
2 ~ 50MHz |
| Protocoale suplimentare |
Mix of TDMA and CSMA/CA channel access scheme;
CO device generates a periodic beacon carrier for channel
access scheme
|
| Domeniul de operare |
Estimated range of 300 meters in wall powerlines |
| Software Utility |
Device detect / diagnostic, Windows 98 SE, ME, 2000, NT, XP, Vista, and Window 7 |
| Specificații de mediu |
| De operare |
Temperature: 0~40 degrees C
Relative Humidity:10~90% (non-condensing)
|
| Depozitare |
Temperature: -20~70 degrees C
Relative Humidity: 5~95% (non-condensing)
|
| Alimentare electrică |
100~240V AC, 50~60Hz internal |

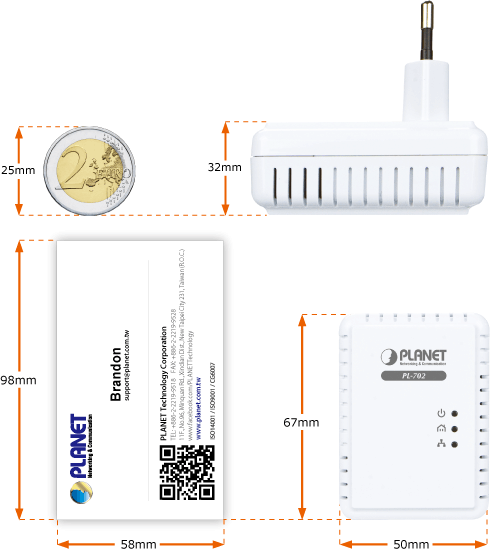

| Dimensiuni (L x Î x H) |
67 x 50 x 32 mm (Plastic only) |
| Greutate |
72 g |
| emisie |
FCC, CE, LVD |
