| Specificații hardware |
| Conector de rețea |
PoE In Port
1 x 10/100/1000BASE-T Ethernet with 802.3bt/at PoE “Data + Power” in, auto MDI/MDI-X, auto-negotiation RJ45 connector
PoE Out Port
2 x 10/100/1000BASE-T Ethernet with IEEE 802.3af/at/bt PoE “Data + Power” out, auto MDI/MDI-X, auto-negotiation RJ45 connector |
| Schimbarea arhitecturii |
Store-and-Forward switch architecture |
| MAC Address Table |
2K MAC address table with auto learning function |
| Buffer de date |
1Mbit |
| Comutatorul Fabric |
6Gbps |
| Capacitatea de comutare |
4.46Mpps @ 64 bytes |
| Controlul debitului |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
|
| Jumbo Frame |
9KB |
| Protecția ESD |
2KV DC |

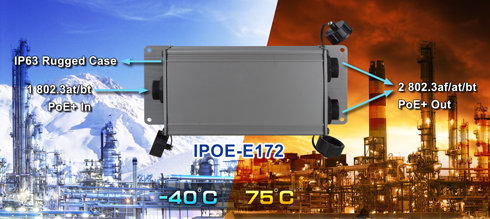

| împrejmuire |
IP63 aluminum case |
| Instalare |
Wall-mount kit |

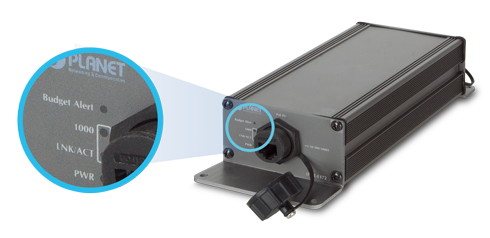

| Afișaj LED |
System:
PWR (Green)
Budget Alert (Red)
PoE Input Port: LNK/ACT (Green)
PoE Input Port: 1000 (Green)
Per PoE Output Port: LNK/ACT (Green)
Per PoE Output Port: PoE-in-Use (Orange) |
| Cablu |
Twisted-pair cable :
10BASE-T: 2-pair UTP Cat3, 4, 5 up to 100 meters
100BASE-TX: 2-pair UTP Cat5, 5e up to 100 meters
1000BASE-T: 4-pair UTP Cat5e, 6 up to 100 meters |
| Dimensiuni (L x Î x H) |
199.6 x 81 x 40 mm |
| Greutate |
373g |
| Consumul de energie |
60 watts/204BTU (Full loading with PoE function) |
| Putere peste Ethernet |
| PoE Standard |
PoE In Port
IEEE 802.3bt/at Power over Ethernet end-span/mid-span PD class 4 PD
Per PoE Out Port
IEEE 802.3bt 4-pair Power over Ethernet end-span + mid-span PSE
IEEE 802.3at Power over Ethernet Plus end-span + mid-span PSE
IEEE 802.3af Power over Ethernet end-span + mid-span PSE |
| Putere PoE |

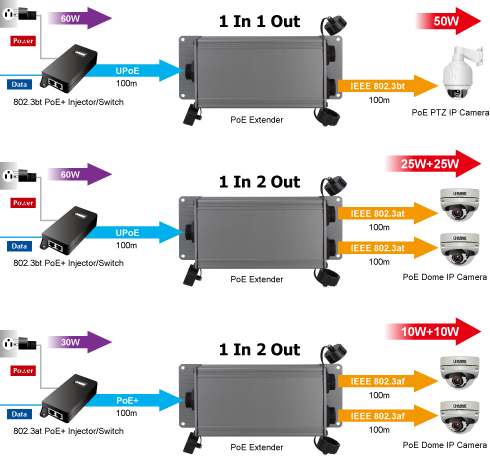

PoE In Port
44~57V DC, max. 95 watts
Per PoE Out Port
44~55V DC, max. 60 watts
|
| Alocarea pinilor de putere |
PoE In Port
1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
Per PoE Out Port
1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-) |
| Conformitatea standardelor |
| Respectarea reglementărilor |
FCC Part 15 Class A, CE |
| Testul de stabilitate |
IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
|
| Respectarea standardelor |
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet
|
| Mediu inconjurator |
| De operare |
Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
| Depozitare |
Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
| Accesorii |
| Accesorii standard |
User’s Manual x 1

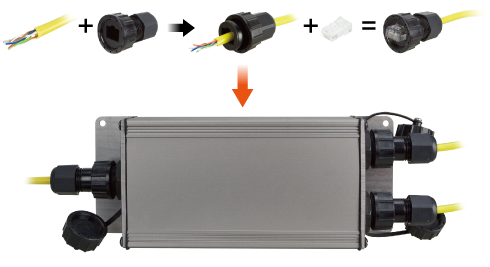

Waterproof RJ45 Connector x 3
Wall-mounted Kit x 1
|
