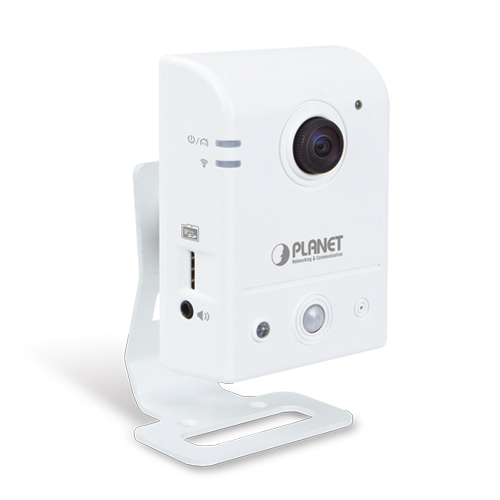

ICA-W8100-CLD

Wireless Fish-Eye Cloud IP Camera

Overview
Application
Key Features
Specification
Download
Related Products

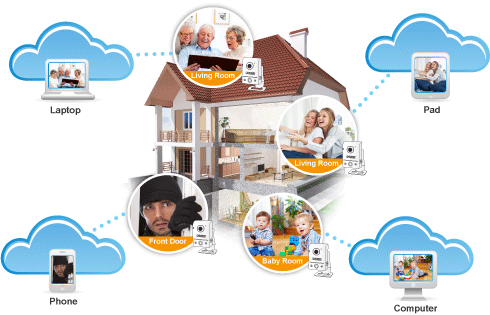

Monitor your home via Cloud IP Camera

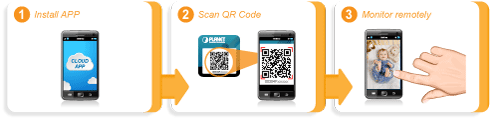

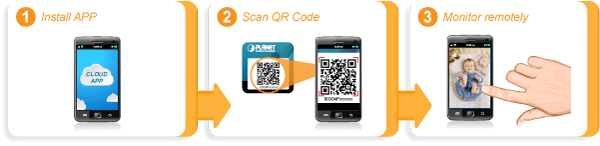

PLANET ICA-W8100-CLD is different from other webcams in that our cloud camera can work without the need to be connected to PC. To view non-cloud camera video remotely, users need to perform many complicated and time consuming steps such as signing up for a third party dynamic IP service and reconfiguring their router. With the free App downloaded for your smart phone, you can quickly and easily view anywhere your camera feed via the ICA-W8100-CLD wirelessly.

Compact Wireless Panoramic Camera for Wide View Surveillance

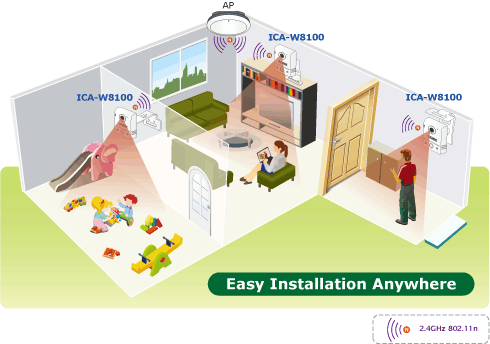

PLANET ICA-W8100-CLD is a compact cube camera providing 180 degree panoramic wide angle view, especially designed for indoor surveillance. Incorporating 1.3MP-resolution sensors, it supports H.264, MPEG-4, and JPEG compression formats and delivers excellent picture quality in up to 1280 x 720 pixels (720p) at 30 frames per second (fps). The unique design makes it the ideal solution to surveillance applications in homes, boutiques, stores or restaurants.

Wider Monitoring with 180º Panoramic View

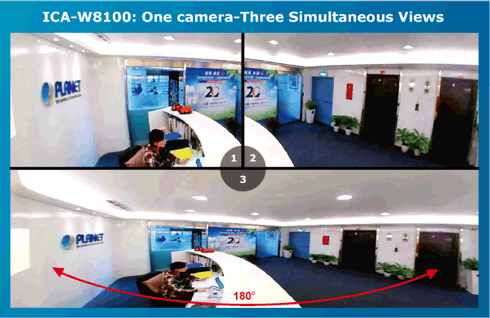

The ICA-W8100-CLD wireless fisheye camera allows you to monitor all angles of a location using just one camera, thus saving lots of traditional mechanical Pan/Tilt maintenance effort. The distorted hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection. Without the need of installing any other software and with the ICA-W8100-CLD, you can watch live view and utilize functions such as motion detection through the Web interface via an internet browser.

Efficient Event Management

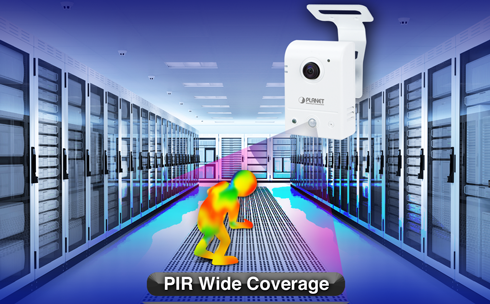

The ICA-W8100-CLD is designed with a built-in Passive InfraRed (PIR) motion detection sensor able to detect movement as far as 5 meters away. When people pass by or an emergency happens in the specified areas, the ICA-W8100-CLD will “detect” and start recording automatically. It provides an additional function of alarm notification that can send the captured images via the micro SD/SDHC card slot for local storage.

Enhanced Video Quality & 2-way Audio Support

The ICA-W8100-CLD provides the industry a more comprehensive set of performance enhancing features including Auto Electronic Shutter (AES) and Auto White Balance (AWB). Besides, the ICA-W8100-CLD supports 2-way audio to strengthen the event management capabilities.

Camera
Image Device	1/4" progressive 1.3 mega-pixel scan CMOS sensor
Lens	Fish-Eye Lens, 185.5/145/>=200° (H/V/D), F=2.0, f=0.89 mm
Min. Illumination	0.5 lux @ F2
Effective Pixels	1280 x 720 pixels (16:9)
PIR Sensor	1 x Built-in sensor with adjustable 70 degrees direction Effective Distance: 5 meters Effective Coverage: 70 degrees
Video
Video Encoder	H.264 / MPEG-4 / M-JPEG
Video Resolution	H.264: 1280 x 720 / 640 x 360 / 320 x 180 MPEG4: 1280 x 720 / 640 x 360 / 320 x 180 M-JPEG: 1280 x 720 / 640 x 360 / 320 x 180
Frame Rate	Up to 30fps for all resolutions
Image Setting	AE, AWB, Brightness, Saturation, Contrast, Mirror/Rotate, Color/BW
Streaming	Simultaneously multi-profile streaming Streaming over UDP, TCP, or HTTP M-JPEG streaming over HTTP (server push) Controllable frame rate and bandwidth Constant and variable bit rate (M-JPEG / H.264)
Rate Control	CBR (Constant Bit Rate) VBR (Variable Bit Rate)
UI Layout	180° Single Broad View (1P) 2 PTZ Mode (2R) 180° Broad View + 2 PTZ Mode (1P2R)
Audio
Audio Streaming	2-way Audio
Audio Compression	RTSP: G.711 64kbps
Microphone	Built-in Microphone
Audio Output	Line Out for extra speaker
Network and Configuration
Network Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.11b/g/n
Network Protocol	IPv4, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, ICMP, Samba
Antenna	Internal 3dBi
Frequency	2.4GHz
RF Transmission Power	OFDM: 13dBm CCK: 17dBm
Output Power	802.11n: 13dBm(default) +/- 1dBm 802.11g: 13dBm(default) +/- 1dBm 802.11b: 17dBm(default) +/- 1dBm
Receiver Sensitivity	802.11b (11Mbps): CCK @ 8% PER = -88dBm 802.11g (54Mbps): OFDM @ 10% PER = -72dBm 802.11n Draft 6.0: HT20 @ 10% PER = -66 dBm HT40@ 10% PER= -61dBm
Data Rate	802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: up to 150Mbps
Security	Password protection / WEP and WPA Encryption
Users	Depends on streaming data rate used
System Integration
Application Programming Interface	Open API for software integration ONVIF
Alarm Triggers	Intelligent video motion detection and PIR sensor
Alarm Events	File upload via FTP, e-mail or Micro SD/SDHC card Notification via e-mail, Mobile APP, and HTTP
Environment
Power Requirement	5V DC, 2A
Power Consumption	6W (5VDC)
Operating Temperature	0 ~ 45 degrees C
Operating Humidity	20 ~ 80% (non-condensing)
Weight	134g
Dimensions (W x D x H)	70 x 39 x 99 mm
Emission	CE, FCC

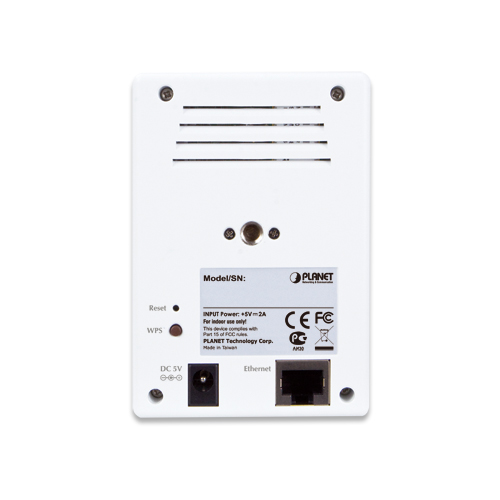

Connectors	10/100 Mbps Ethernet, RJ-45 DC power jack Audio out Micro SD/SDHC card (Max 32GB, Class 6) WPS Button Factory default reset button
