| Specificații hardware |
| Interfețe LAN |
1 x 10/100BASE-TX RJ45 port
Auto-negotiation and auto MDI/MDI-X |
| Interfețe PoE Port |
1 x 10/100Mbps auto MDI/MDI-X RJ45 port (rear panel)
※ IEEE 802.3af/at PD port |

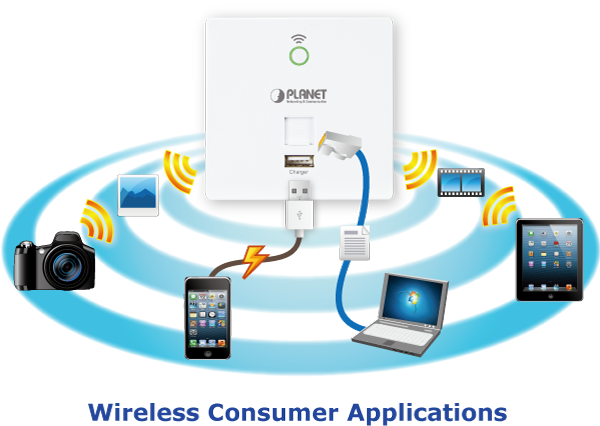

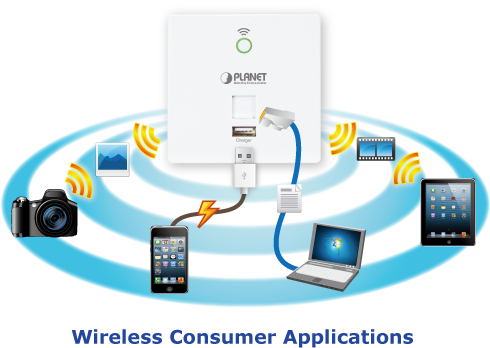

| Interfețe Port USB |
USB 2.0, Type A, 5V DC, 0.5A output |
| antene Gain |
2 x 2dBi antenna |
| Buton |
Reset button (Press over 7 seconds to reset the device to the factory default) |
| Indicatoare LED |
Wireless |
| Dimensiuni (Φ x H) |
86 x 35 x 86 mm |
| Greutate |
106 ±5g |
| Cerinte de putere |
48V 0.5A, IEEE 802.3af/at PoE+ |
| Consumul de energie |
< 5W |
| Montare |
In-wall mount |
| Specificațiile interfeței fără fir |
| Standard |
IEEE 802.11b/g/n 2.4GHz |
| Controlul accesului media |
CSMA/CA |
| Modularea datelor |
Transmission/emission type: DSSS/OFDM
Data modulation type: OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK |
| Interval de frecvență |
FCC: 2.412~2.462GHz
ETSI: 2.412~2.472GHz |
| Canale de operare |
FCC: 1~11
ETSI: 1~13 |
| RF Power |
< 20dBm (EIRP) |
| Primiți sensibilitate |
2.4GHz:
802.11b(1Mbps):-88dBm
802.11b(11Mbps):-85dBm
802.11g(6Mbps):-88dBm
802.11g(54Mbps):-68dBm
802.11n(MCS0/MCS8):-68dBm
802.11n(MCS7/MCS15):-68dBm |
| Caracteristici software |
| LAN |
Static IP
Supports IP-MAC binding |
| Modul wireless |
■ Access Point
■ Gateway
■ Repeater
■ WDS (AP/Bridge/Station) |
| latimea canalului |
20MHz, 40MHz, |
| Securitate criptare |
64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X |
| Securitate wireless |
Enable/Disable SSID Broadcast
Wireless MAC address filtering
User Isolation |
| Wireless avansat |
WMM (Wi-Fi Multimedia): 802.11e Wireless QoS
Multiple SSIDs: up to 4
Wireless Isolation: Enables to isolate each connected wireless client from communicating with each other
Provides wireless statistics |
| Max. SSID-urile |
4 |
| Max. Clienți |
64 (20 is suggested, depending on usage) |
| Max. WDS Peers |
4 |
| Wireless QoS |
Supports Wi-Fi Multimedia (WMM) |
| Wireless avansat |
Auto channel selection
5-level transmit power control (100%, 75%, 50%, 25%, 12.5%)
Client limit control, coverage threshold
Wi-Fi channel analysis chart |
| Monitorizare stare |
Device status, wireless client list
PLANET Smart Discovery
DHCP client table
System Log supports remote syslog server |
| VLAN |
IEEE 802.1Q VLAN (VID: 3~4094)
SSID-to-VLAN mapping to up to 4 SSIDs |
| Auto vindecare |
Supports auto reboot settings per day/hour |
| administrare |
Remote management through PLANET DDNS/ Easy DDNS
Configuration backup and restore
Supports UPnP
Supports IGMP Proxy
Supports PPTP/L2TP/IPSec VPN Pass-through
SNMP v1/v2c/v3 support, MIB I/II, Private MIB |
| Managementul central [1] |
Applicable controllers: WAPC-500, WAPC-1000 and Smart AP Control(SAPC)
*Remarks[1]: the feature will be supported through firmware/system upgrade. |
| Mediu și certificare |
| Temperatura |
Operating: -20 ~ 55 degrees C
Storage: -40 ~ 70 degrees C |
| Umiditate |
Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 95% (non-condensing) |
| de reglementare |
CE, RoHS |
