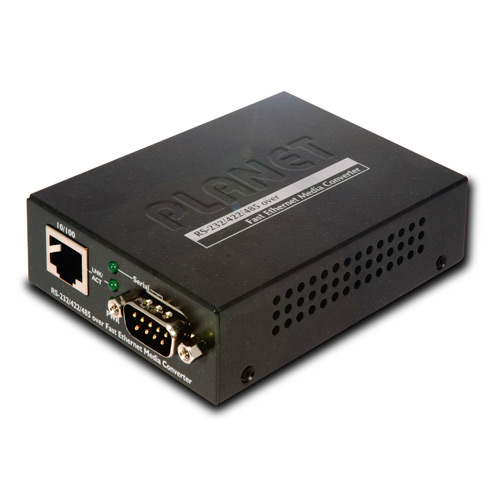

| Serial Port |
| Interface |
RS-232 / RS-422 / RS-485 |
| Connector |
3-in-1 DB9 |
| Baud rate (Data Rate) |
110bps to 921Kbps |
| Data Bits |
5,6,7,8 |
| Stop Bit |
1,2 |
| Flow Control |
None, RTS / CTS, Xon / Xoff |
| Signals |
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-
RS-485(2-wire): Data+, Data-
RS-485(4-wire): Tx+, Tx-, Rx+, Rx-
|
| Fast Ethernet Port |
| Standard |
10/100Base-TX |
| Connector |
RJ-45 |
| Mode |
- |
| Distance |
100m |
| Optical Wavelength |
- |
| Cable |
Twisted-pair |
| Protection |
Built-in 1.5KV magnetic isolation |
| Hardware |
| LED Indicators |
System: Power
TP or Fiber Port: Link / Active
Serial Port: Serial port mode, RS-232, RS-422 or RS-485
|
| Management |
Web Management
PLANET Smart Discovery Utility
VCOM
|

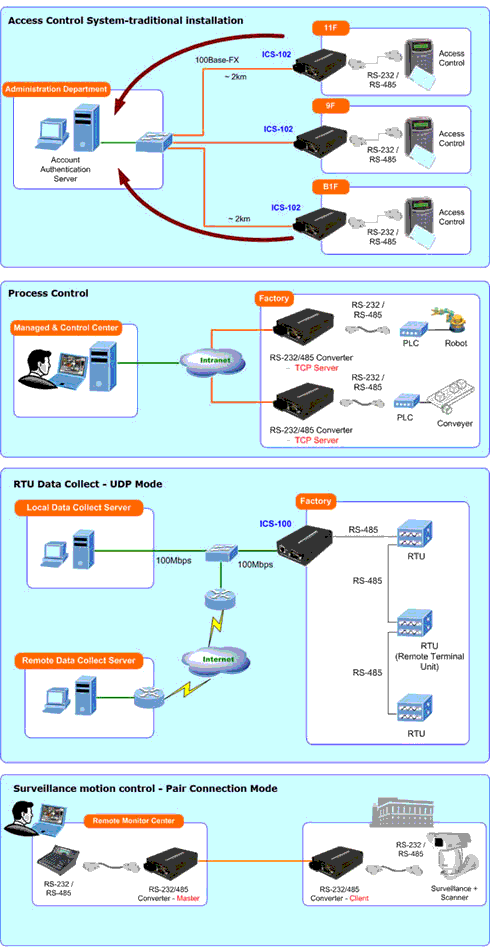

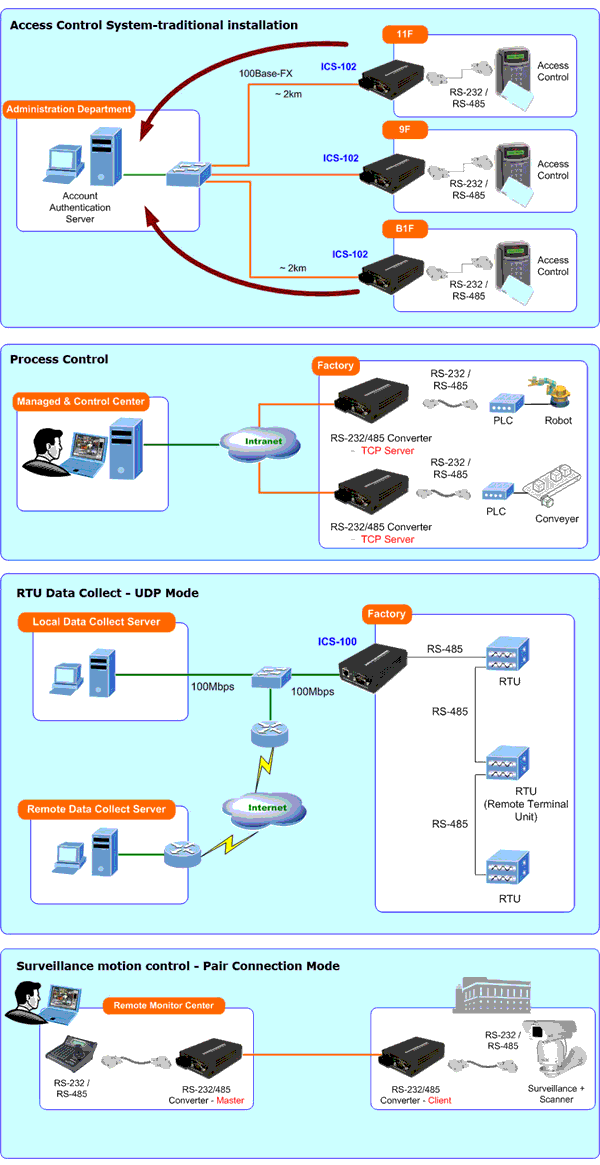

| Operation Mode |
Virtual COM Port
TCP Server
TCP Client
UDP Client
Pair Connection
|
| Dimension (W x D x H) |
97 x 70 x 26 mm |
| Weight |
200g |
| Power Supply |
External Power Adaptor 5V DC / 2A max. |
| Power Consumption |
5.5 Watts (max) |
| Mechanical |
Metal |
| Environment |
Operating Temperature: 0~50 Degree C
Storage Temperature: -10~70 Degree C
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH
|
| Emissions |
FCC Class A, CE Certification Class A |
| Standards |
• IEEE 802.3 10Base-T,
• IEEE 802.3u 100Base-TX / 100Base-FX
• EIA / TIA RS-232 / 422 / 485
|
| Regulatory Approval |
RoHS |
| Compatible Media Converter Chassis |
MC-700 / MC-1500/ MC-1500R / MC-1500R48 |
| Note |
Reset Button at the rear panel for reset to factory default |
