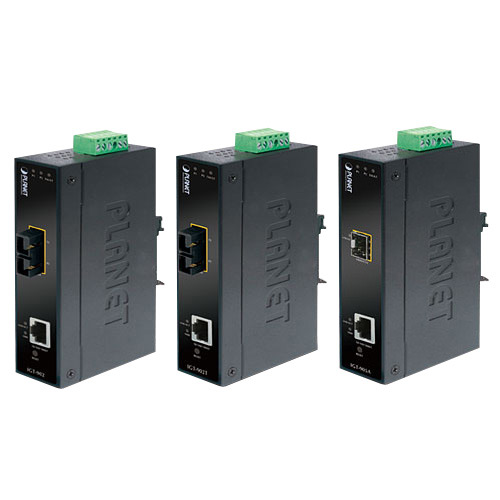

IGT-902T / IGT-902TS / IGT-905A

Industrial Managed Gigabit Ethernet Media Converter with Wide Operating Temperature (-30~75 Degree C)

Overview
Application
Key Features
Specification
Download

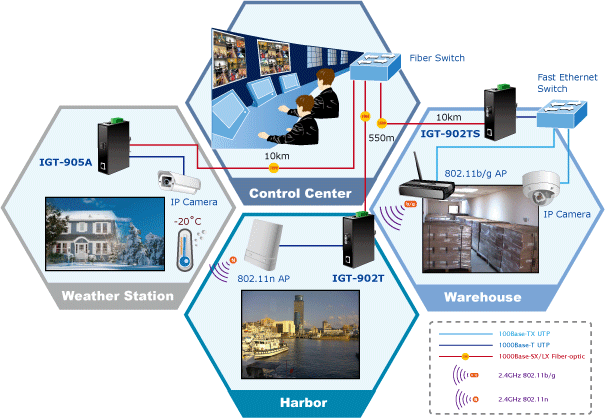

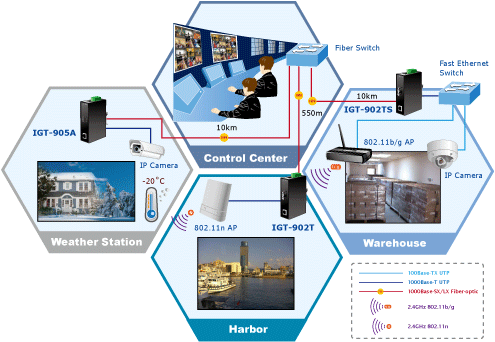

Distance Extension with High Performance and Steady Network Communicating
The PLANET Industrial Managed Gigabit Media Converter – IGT-90xT series extends communication distance with highly Gigabit performance via fiber optical wire, in which the extension distance could be up to 10km by applying IGT-902TS and IGT-905A (vary on SFP module) or up to 550m by IGT-902T. The IGT-90xT series is specifically designed with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level Gigabit media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets in sidewalk. Being able to operate under the temperature range from -30 to 75 degree C allow the IGT-90xT series can be placed in almost any difficult environment.

Robust Switching performance
The PLANET IGT-90xT series Industrial Managed Media Converter efficiently converts data between 10/100/1000Base-T and 1000Base-SX / LX network, and offers remote management and monitoring capabilities. The IGT-90xT series provides the flexibility with all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable Gigabit fiber performance. It also delivers the dynamic status report and real-time alarm messages that helps the network administrator to easily monitor and manage the entire industrial networks.

User-friendly Centralized Web Management Interface
For efficient management, the IGT-90xT series Industrial Managed Gigabit Ethernet Media Converter is equipped with remote Web / SNMP (Simple Network Management Protocol) interface. By the built-in Web-based management interface, the IGT-90xT series acts as an easy-to-use, platform-independent management and configuration facility. It also can be managed via any standard-based management software by supporting standard SNMP. Moreover, the IGT-90xT series can manage the remote client devices by the TS-1000/802.3ah OAM protocol (operations, administration, and maintenance).

Enhanced Management Features
The IGT-90xT series can be programmed for advanced management functions such as IP address configuration, DHCP Client function, port configuration, converter configuration, 802.1Q Tag VLAN, Q-in-Q VLAN, QoS, OAM control, Layer 2 protocol filter, broadcast storm control and Ingress/Egress bandwidth control to enhance bandwidth utilization. The enhanced management features offered by the IGT-90xT makes it ideally suited for mission-critical and real-time control applications in the Industrial Ethernet networks.

Hardware Specification
Copper Interface	1 x 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X port
Optic Interface	IGT-902T: SC IGT-902TS: SC IGT-905A: SFP
Optical Mode	IGT-902T: Multi-mode IGT-902TS: Single mode IGT-905A: Vary on module
Optic Wavelength	IGT-902T: 850nm IGT-902TS: 1310nm
Launch Power(dBm)	MAX. IGT-902T: -4 dBm IGT-902TS: -3 dBm Min. IGT-902T: -9.5 dBm IGT-902TS: -9.5 dBm
Receive Sensitivity	IGT-902T: -13.5 dBm IGT-902TS: -14.4 dBm
Maximum Input power	IGT-902T: -18 dBm IGT-902TS: -20 dBm
Speed	Twisted-pair 10/20Mbps for Half / Full-Duplex 100/200Mbps for Half / Full Duplex 2000Mbps for Full-Duplex Fiber-optic 2000Mbps for Full-Duplex
Cable	Twisted-pair 10Base-T: 2-pair UTP Cat. 3,4,5, up to 100 m 100Base-TX: 2-pair UTP Cat. 5, up to 100 m 1000Base-T: 4-pair STP Cat 5,6 up to 100m Fiber-optic Cable • 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m. • 9/125μm single-mode cable, provides long distance for 　10/15/20/30/40/50/60/70/120km (very on fiber transceiver or SFP 　module)
LED indicator	• Power: P1, P2, Fault • TP: LNK/ACT, 1000 • Fiber: LNK/ACT
Power Input	DC 12V to 48V Redundant power with polarity reverse protection function
Power Consumption	7.9 Watts/ 27 BTU (maximum)
Operating Environment	Temperature: -30~75 Degree C Humidity: 5~90% non-condensing
Storage Environment	Temperature: -40~85 Degree C Humidity: 5~90% non-condensing
Dimension (W x D x H)	135 x 85 x 32 mm
Weight	423g
Installation	DIN rail kit and wall mount ear
Management and Layer 2 Features
Management Interface	WEB / SNMP v1, v2c
Port Configuration	Port disable/enable Auto-negotiation 10/100/1000Mbps Full and Half duplex mode selection. Flow Control disable / enable. Bandwidth control on each port.
VLAN	IEEE 802.1q Tagged Based VLAN , 4K VLAN ID, up to 16 VLAN groups Q-in-Q VLAN
QoS	Traffic classification based on : • 802.1p priority • IP DSCP field in IP Packet • IP Address
Bandwidth Control	Ingress / Egress bandwidth control • Rate range: 512kbps to 500Mbps Storm control • Broadcast / Multicast / Unknown Unicast packet
Standard Conformance
Emissions	FCC Class A, CE Class A
Standard	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control and Back pressure IEEE 802.1p Class of service IEEE 802.1Q VLAN Tagging IEEE 802.3ah OAM
Stability	IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)

Ordering Information
IGT-902T	10/100/1000Base-T to 1000Base-SX Managed Industrial Gigabit Converter (-30~75 Degree C)
IGT-902TS	10/100/1000Base-T to 1000Base-LX Managed IndustrialGigabit Converter (SM) (-30~75 Degree C)
IGT-905A	10/100/1000Base-T to mini-GBIC Industrial Managed Media Converter (LC,MM/SM)-distance depend on SFP module (-30~75 Degree C)
