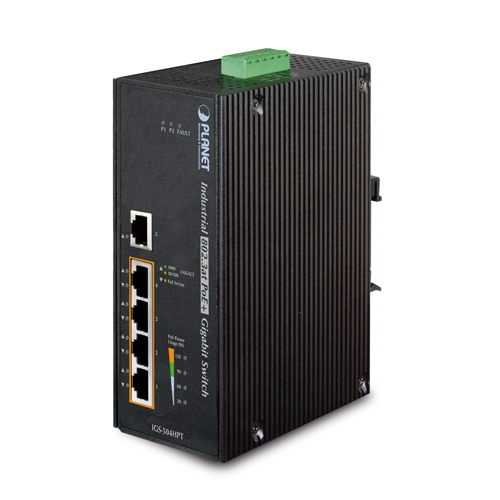

IGS-504HPT

Industrial 5-Port Gigabit Switch w/ 4-Port 802.3at PoE+

Overview
Application
Key Features
Specification
Download
Related Products

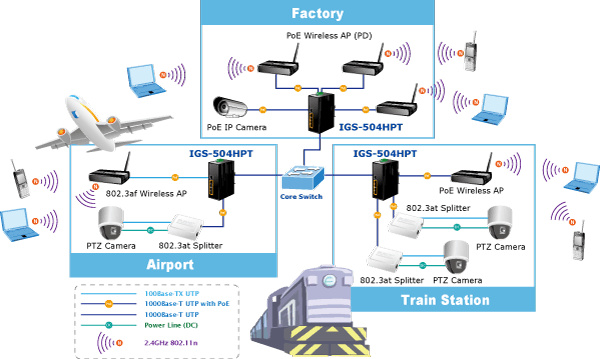

The PLANET IGS-504HPT is an Industrial Gigabit 802.3at PoE+ Switch providing Power over Ethernet capability and non-blocking wire-speed Gigabit performance in harsh industrial environment. It provides 4-port 10/100/1000Base-T copper with 802.3af/at PoE injector delivered in an IP30 rugged strong case with redundant power system. The IGS-504HPT is well suited for applications in deploying surveillance system, secure control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.

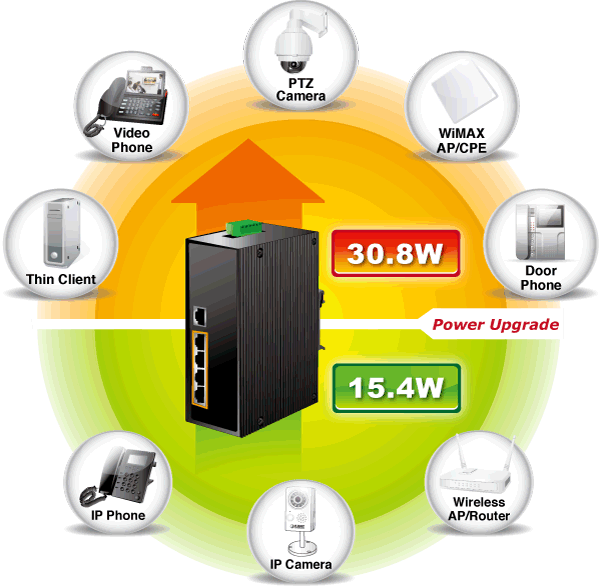

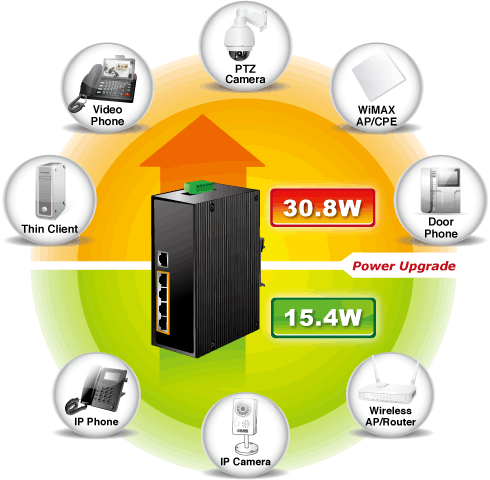

High Power PoE for Security and Public Service Applications
To fulfill the demand of High Power PoE for network applications with Gigabit speed transmission under wide temperature, the IGS-504HPT provides 4 10/100/1000Mbps ports featuring both IEEE 802.3af and IEEE 802.3at Power over Ethernet Plus (PoE+) that combine up to 30 watts of power output and data per port over one Cat.5E / 6 Ethernet cable. With totally 120-watt PoE budget on the whole system, the IGS-504HPT is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome network cameras, multi-channel (802.11a / b / g / n) outdoor wireless LAN access points and other PoE network devices by providing double PoE power, rather than the current conventional 802.3af PoE.

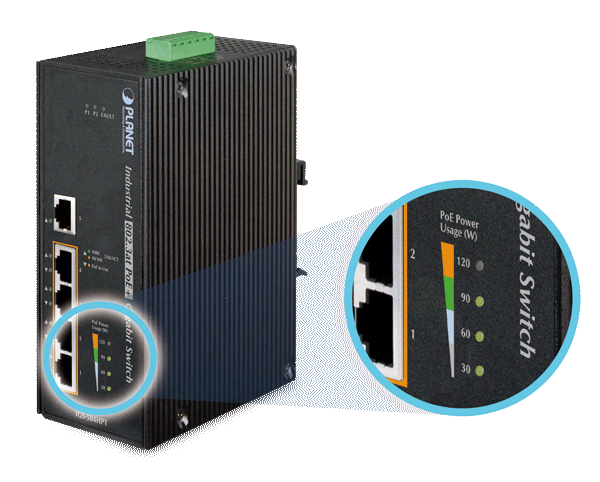

Intelligent LED Indicator for Real-time PoE Usage
The IGS-504HPT helps users to monitor the current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the Industrial Gigabit PoE+ Switch has four orange LEDs indicating 30W, 60W, 90W and 120W of power usage.

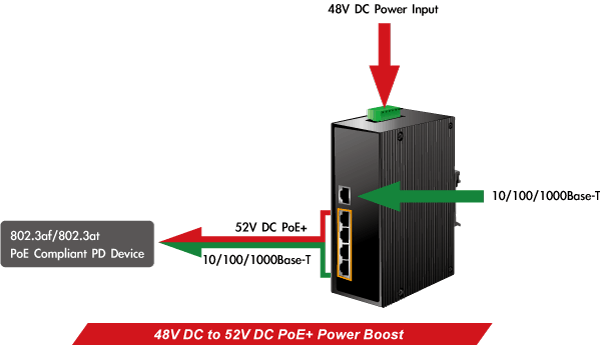

Convenient and Reliable Power System
To facilitate the 802.3at High Power PoE usage with the commonly used 48V DC power input in transportation and industrial-level applications, the IGS-504HPT adopts 48V DC to 52V DC power boost technology to solve power source issue which is not required for special power supplies to achieve the level of High Power PoE+ output. To enhance the operation reliability and flexibility, the IGS-504HPT is equipped with two DC power input connectors for redundant power supply installation.

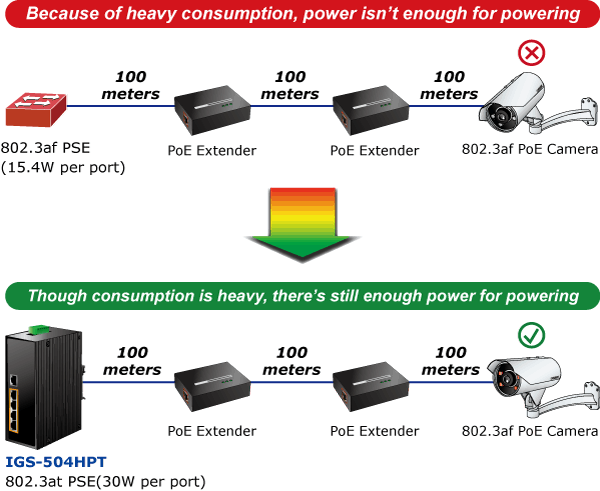

High Power Budget for PoE Extension
With 30-watt PoE output capability, the IGS-504HPT can extend much longer distance by using PLANET PoE Extender for powering up the IEEE 802.3af PoE PD devices which can be installed over more than 100 meters away. By daisy-chaining multiple PLANET PoE Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.

Environmentally Hardened Design
The IGS-504HPT is equipped with the rugged IP30 metal case for easy deployment in heavy Industrial demanding environments. With IP30 industrial case protection, the IGS-504HPT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-504HPT can be placed in almost any difficult environment. The IGS-504HPT also allows either DIN rail or wall mounting for efficient use of cabinet space.

Hardware Specifications

Copper Ports

5 x 10/100/1000Base-T RJ-45 TP
Auto-MDI/MDI-X, Auto-Negotiation

Connector

Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2

Alarm

Provides one relay output for power fail
Alarm Relay current carry ability: 1A @ DC 24V

LED

3 x LED for System and Power:
　■ Green: DC Power 1
　■ Green: DC Power 2
　■ Green: Power Fault
2 x LED for Per Copper Port (Port-1~Port-4):
　■ Green: 1000 LNK/ACT, Orange:100 LNK/ACT
　■ Orange: PoE In-use
1 x LED for Port-5:
　■ Green: 1000 LNK/ACT, Orange:100 LNK/ACT
4 x LED for PoE Power Usage (W):
　■ Orange: 30, 60, 90 and 120W

ESD Protection

6KV DC

EFT Protection

6KV DC

Enclosure

IP30 aluminum metal case

Installation Type

DIN rail kit or wall mount

Dimensions (W x D x H)

152 x 107x 72 mm

Weight

1478g

Power Requirements

48V DC, 5A max.
Redundant power with polarity reverse protection function

Power Consumption / Dissipation

14.1 watts / 48 BUT (System loading without PoE)
134.1 watts / 457 BTU (Full loading with PoE function)

Power over Ethernet

PoE Standard

IEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE

PoE Power Supply Type

End-Span

Power Pin Assignment

1/2(+), 3/6(-)

PoE Power Output

Per port 52V DC, 275mA. Max. 15.4 watts (IEEE 802.3af)
Per port 52V DC, 535mA. Max. 30 watts (IEEE 802.3at)

Max. number of Class 4 PD

Switch Specification

Switch Processing Scheme

Store-and-Forward

Address Table

1K entries

Flow Control

Back pressure for half duplex
IEEE 802.3x Pause Frame for full duplex

Switch fabric

10Gbps

Throughput (packet per second)

7.44Mpps@64bytes

Maximum Transmit Unit

9216 bytes

Speed

TP: 10/20Mbps, 100/200Mbps, 2000Mbps

Standards Conformance

Standards Compliance

IEEE 802.3 Ethernet / 10Base-T
IEEE 802.3u Fast Ethernet / 100Base-TX
IEEE 802.3ab Gigabit Ethernet / 1000Base-T
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3at High Power over Ethernet
IEEE 802.3af Power over Ethernet

Regulation Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration)

Environment

Temperature

Operating:	-40~75 degree C
Storage:	-40~75 degrees C

Humidity

Operating:	5~95% (Non-condensing)
Storage:	5~95% (Non-condensing)

Ordering Information
IGS-504HPT	Industrial 5-Port Gigabit Switch w/ 4-Port 802.3at PoE+
