| Hardware Specification |
| Interface |

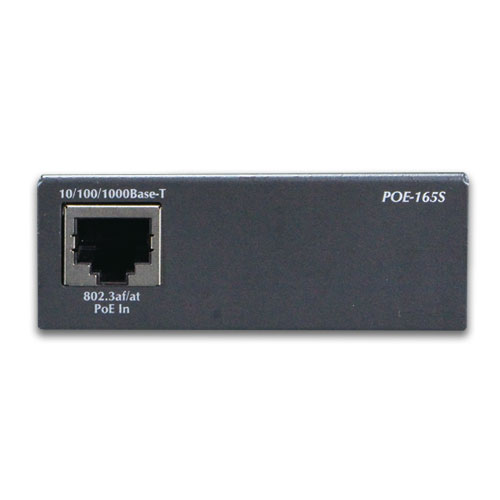

PoE In Port: 1 x IEEE 802.3af/at RJ-45 STP / PD

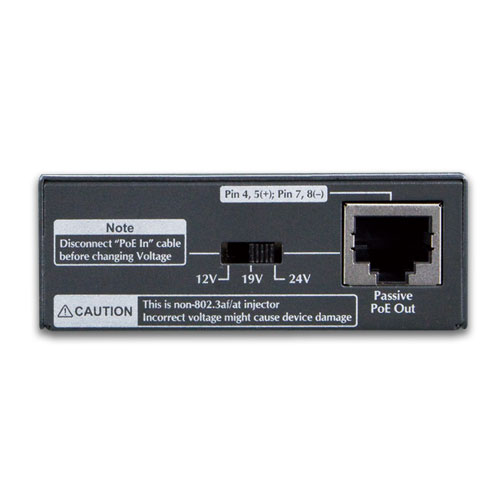

Passive PoE Out Port: 1 x non-802.3af/at RJ-45 STP / PSE |
| LED Indicator |
System
● PoE In (Green)
Passive PoE Out
● 12V (Green)
● 19V (Green)
● 24V (Green)
|
| Network Cable |
10Base-T: 2-Pair UTP Cat. 3, 4, 5
100Base-TX: 2-Pair UTP Cat. 3, 4, 5
1000Base-T: 2-Pair UTP Cat. 5, 5e, 6
EIA/TIA-568 100-ohm STP |
| DIP Switch |
12V/19V/24V DC Output Voltage |
| Power Input |
IEEE 802.3af/at Power over Ethernet End-Span / Mid-Span Class 4 PD |
| Power Output |
Maximum Passive PoE
12V DC, 0.7A
19V DC, 0.7A
24V DC, 0.7A |
| Power Output Pin Assignment |
4/5(+), 7/8(-) |
| Data Rate |
10/100/1000Mbps |
| Maximum Distance |

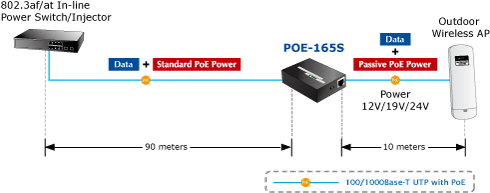

Up to 100meters (Including POE-165S) |
| Dimensions (W x D x H) |
94 x 70.3 x 26.2 mm |
| Weight |
182g |
| Number of devices that can be powered |
1 |
| Operating Temperature |
-40 ~ 75 degrees C |
| Storage Temperature |
-40 ~ 85 degrees C |
| Operating Humidity |
5 ~ 90%, Relative Humidity, non-condensing |
| Storage Humidity |
5 ~ 90%, Relative Humidity, non-condensing |

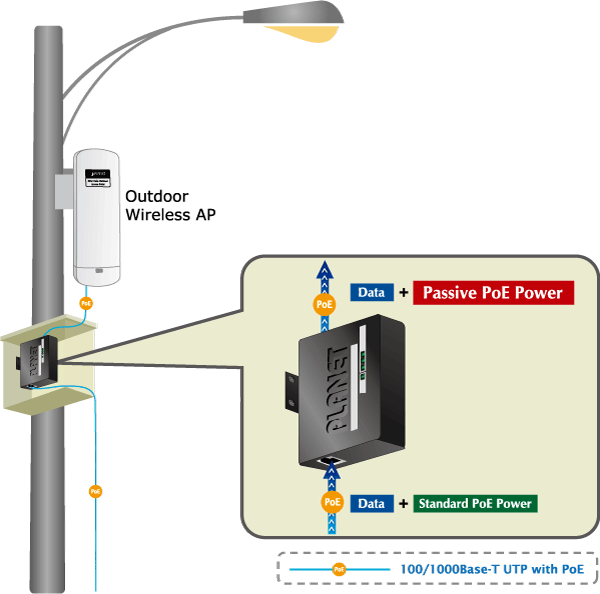

| Compliant PLANET Outdoor Wireless Devices |
| 2.4GHz |
WNAP-6306 (v2) @ 12V |
| 5GHz |
WNAP-7206 @ 12V
WNAP-7300 @ 19V/24V
WNAP-7320 @ 12V/19V/24V
|
| Standards Conformance |
| Standards Compliance |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3at High Power over Ethernet
IEEE 802.3af Power over Ethernet
|
| Regulation Compliance |
FCC Part 15 Class A, CE |
