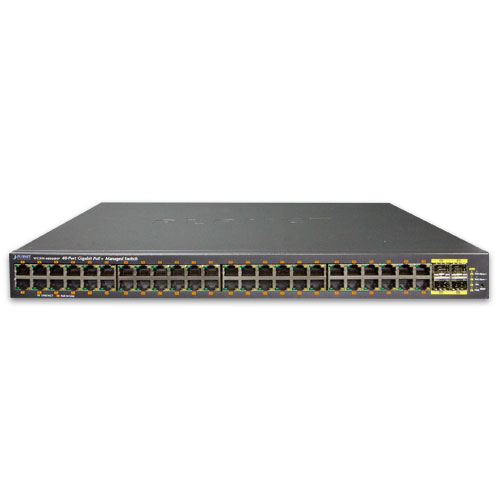

WGSW-48040HP

L2+ 48-Port 10/100/1000T 802.3at PoE + 4-Port Shared 100/1000X SFP Managed Switch

Overview
Application
Key Features
Specification
Download

Ideal Combination of Power over Ethernet Solution and Layer 3 Static Routing

The WGSW-48040HP is PLANET’s first one 48-port Layer 2 Plus 802.3at PoE Managed Gigabit Switch, which provides high density performance and supports IPv4 and IPv6 Layer 3 static routing. The WGSW-48040HP has 48 IEEE 802.3at PoE+ ports and PoE budget up to 600 watts for catering to medium to large scale of VoIP or IP Surveillance networks at a lower total cost.

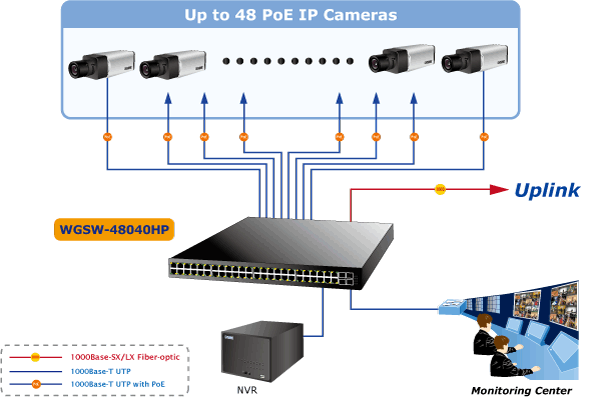

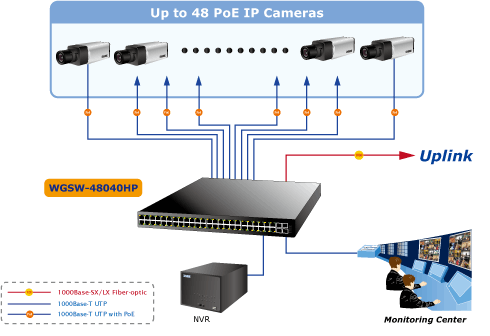

Cost-effective PoE Switch

The WGSW-48040HP can work with PLANET’s POE-E201 extender for reaching up to 200M, 300M or longer distance. Meanwhile, with its 96Gbps high performance switch architecture and 600-watt PoE power budget, the WGSW-48040HP can power up 36 or more PoE IP cameras, through which the recorded video files could be managed by 8/16/32-channel NVR systems or surveillance software for performing comprehensive security monitoring. In the past, customers might need to purchase two or more switches to build the VoIP or IP surveillance network. From now on, customers only need one WGSW-48040HP to achieve the goal; this would be cost-effective, save time and human resource.

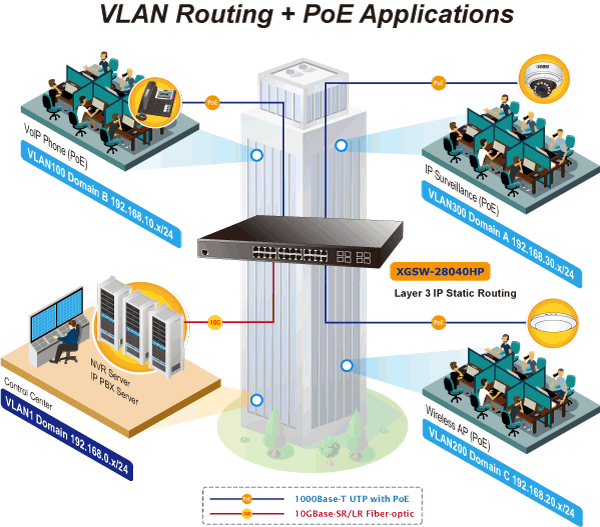

Solution for IPv6 Networking

Faced with the increasingly large number of IP cameras and Wireless APs installed and deployed in all kinds of applications, more and more network facilities start to support the IPv6 protocol for the next-generation networking. By supporting both the IPv4 and IPv6 and plenty of management functions with easy and friendly management interfaces, the WGSW-48040HP is the best choice for IP surveillance and wireless service providers to connect with the IPv6 network.

Centralized Power Management for Gigabit Ethernet PoE Networking

To fulfill the needs of higher power required PoE network applications with Gigabit speed transmission, the WGSW-48040HP features high-performance Gigabit IEEE 802.3af PoE (up to 15.4 watts) and IEEE 802.3at PoE+ (up to 30 watts) on all ports. It perfectly meets the power requirement of PoE VoIP phone and all kinds of PoE IP camera such as IR, PTZ, speed dome cameras or even box type IP cameras with built-in fan and heater for high power consumption.

The WGSW-48040HP’s PoE capabilities also help to reduce deployment costs for network devices as a result of freeing from restrictions of power outlet locations. Power and data switching are integrated into one unit, delivered over a single cable and managed centrally. It thus eliminates cost for additional AC wiring and reduces installation time.

Built-in Unique PoE Functions for Surveillance Management

As a Managed PoE Switch for surveillance network, the WGSW-48040HP features intelligent PoE Management functions:

　■　PD Alive Check

　■　Scheduled Power Recycling

　■　SMTP/SNMP Trap Event Alert

　■　PoE Schedule

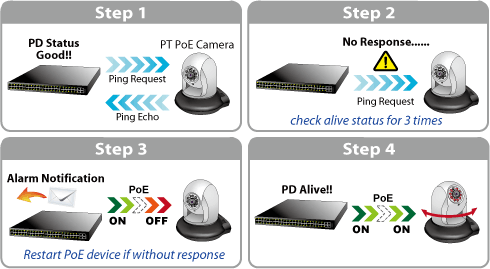

Intelligent Powered Device Alive Check

The WGSW-48040HP can be configured to monitor connected PD (Powered Device) status in real-time via ping action. Once the PD stops working and it is without response, the WGSW-48040HP will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reduce administrator management burden.

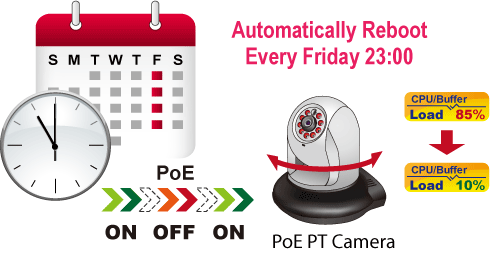

Scheduled Power Recycling

The WGSW-48040HP allows each of the connected PoE IP cameras to reboot in a specific time each week. Therefore, it will reduce the chance of IP camera crash resulting from buffer overflow.

SMTP/SNMP Trap Event Alert

Though most NVR or camera management software offers SMTP email alert function, the WGSW-48040HP further provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, loss of PoE power or the rebooting response by PD Alive Check process.

PoE Schedule for Energy Saving

Besides being used for IP Surveillance, the WGSW-48040HP is certainly applicable to construct any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the WGSW-48040HP can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMB or Enterprise save power and money.

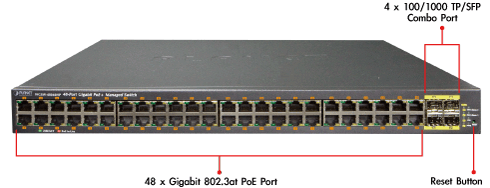

Physical Port

48-port 10/100/1000Base-T RJ-45 copper with IEEE 802.3at / 802.3af Power over Ethernet Injector function
4 SFP shared combo interfaces, SFP(Mini-GBIC) supports 100/1000X dual mode, shared with Port-45 to Port-48

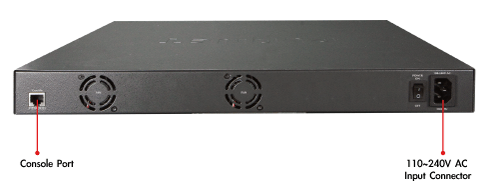

RJ-45 to RS-232 console interface for basic management and setup

Power over Ethernet

Complies with IEEE 802.3at High Power over Ethernet End-Span PSE
Complies with IEEE 802.3af Power over Ethernet End-Span PSE
Up to 48 ports of IEEE 802.3af / 802.3at devices powered
Supports PoE power up to 30.8 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters
PoE Management

- Total PoE power budget control

- Per port PoE function enable/disable

- PoE Port Power feeding priority

- Per PoE port power limit

- PD classification detection

- PD alive-check

- PoE schedule

- PD power recycling schedule

Layer 2 Features

Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm Control support

- Broadcast / Multicast / Unknown-Unicast

Supports VLAN

- IEEE 802.1Q Tagged VLAN

- Up to 255 VLANs groups, out of 4094 VLAN IDs

- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)

- Private VLAN Edge (PVE)

- Protocol-based VLAN

- MAC-based VLAN

- Voice VLAN

- IP Subnet VLAN

Supports Spanning Tree Protocol

- STP, IEEE 802.1D Spanning Tree Protocol

- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol

- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN

- BPDU Guard

Supports Link Aggregation

- 802.3ad Link Aggregation Control Protocol (LACP)

- Cisco ether-channel (Static Trunk)

- Maximum 24 trunk groups, up to 8 ports per trunk group

- Up to 16Gbps bandwidth (full duplex mode)

Provides Port Mirror (many-to-1)
Port Mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops

Layer 3 IP Routing Features

Supports maximum 128 static routes and route summarization

Quality of Service

Ingress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification

- IEEE 802.1p CoS

- TOS / DSCP / IP Precedence of IPv4/IPv6 packets

- IP TCP/UDP port number

- Typical network application

Strict priority and Weighted Round Robin (WRR) CoS policies
Traffic-policing policies on the switch port
DSCP remarking

Multicast

Supports IGMP Snooping v1, v2 and v3
Supports MLD Snooping v1 and v2
Querier mode support
IGMP Snooping port filtering
MLD Snooping port filtering
Multicast VLAN Registration (MVR)

Security

IEEE 802.1x Port-based / MAC-based network access authentication
Built-in RADIUS client to co-operate with the RADIUS servers
TACACS+ login users access authentication
RADIUS / TACACS+ users access authentication
IP-based Access Control List (ACL)
MAC-based Access Control List
Source MAC / IP address binding
DHCP Snooping to filter untrusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP Source Guard prevents IP spoofing attacks
Auto DoS rule to defend DoS attack
IP address access management to prevent unauthorized intruder

Management

Switch Management Interfaces

- Console / Telnet Command Line Interface

- Web switch management

- SNMP v1, v2c, and v3 switch management

- SSH / SSL secure access

Four RMON groups (history, statistics, alarms, and events)
IPv6 IP Address / NTP / DNS management
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
Firmware upload / download via HTTP / TFTP
DHCP Relay
DHCP Option82
User Privilege levels control
NTP (Network Time Protocol)
Link Layer Discovery Protocol (LLDP)
SFP-DDM (Digital Diagnostic Monitor)
Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
Reset button for system reboot or reset to factory default
PLANET Smart Discovery Utility for deploy management
ICMPv6

Hardware Specifications
Copper Ports	48 10/100/1000Base-T RJ-45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots	4 100/1000Base-X SFP interfaces, shared with Port-45 to Port-48 Compatible with 100Base-FX SFP transceiver
Console	1 x RJ-45 to RS-232 serial port (115200, 8, N, 1)
Switch Architecture	Store-and-Forward
Switch Fabric	96Gbps / non-blocking
Throughput	71.4 Mpps@64Bytes
Address Table	16K entries, automatic source address learning and ageing
Share Data Buffer	16M bits
Flow Control	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
Jumbo Frame	10056bytes
Reset Button	< 5 sec: System reboot > 5 sec: Factory default
Dimensions (W x D x H)	440 x 440 x 44.2 mm, 1U height
LED	System: 　　　Power (Green) 　　　SYS (System, Green) Alert: 　　　Fan Alarm 1 (Red) 　　　Fan Alarm 2 (Red) PoE Ethernet Interfaces (Port 1 to Port 48): 　　　LNK/ACT (10/100/1000Mbps, Green) 　　　PoE-in-Use (Orange) 100/1000Mbps SFP Combo Interfaces (Port 45 to Port 48): 　　　LNK/ACT (100/1000X, Green)
Power Requirements	100-240V AC, 50/60Hz, 12A
Power Consumption	722 watts / 2462 BTU
ESD Protection	2KV DC
Power over Ethernet
PoE Standard	IEEE 802.3af / 802.3at PoE / PSE
PoE Power Supply Type	End-Span
PoE Power Output	Per Port 52V DC, 590mA Max. 30.8 watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	600 watts (max.)@ 25 degrees C
PoE Ability	PD @ 11 watts: 48 units PD @ 15.4 watts: 38 units PD @ 30.8 watts: 19 units
Layer 2 Functions
Port Configuration	Port disable / enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable / enable
Port Status	Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port Mirroring	TX / RX / Both Many-to-1 monitor
VLAN	802.1Q Tagged-based VLAN, up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN IP Subnet-based VLAN MVR (Multicast VLAN Registration) GVRP Up to 255 VLAN groups, out of 4094 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP / Static Trunk 24 groups of 8-Port trunk support
Spanning Tree Protocol	STP / RSTP / MSTP
QoS	Traffic classification based, Strict priority and WRR 8-level priority for switching 　- Port Number 　- 802.1p priority 　- 802.1Q VLAN tag 　- DSCP/TOS field in IP Packet
IGMP Snooping	IGMP (v1/v2/v3) Snooping, up to 255 multicast groups IGMP Querier mode support
MLD Snooping	MLD (v1/v2) Snooping, up to 255 multicast groups MLD Querier mode support
Access Control List	IP-based ACL / MAC-based ACL Up to 256 entries
Bandwidth Control	Per port bandwidth control 　Ingress: 100Kbps~1000Mbps 　Egress: 100Kbps~1000Mbps
Layer 3 Functions
IP Interfaces	Max. 128 VLAN interfaces
Routing Table	Max. 32 routing entries
Routing Protocols	IPv4 Static Routing IPv6 Static Routing
Management Functions
Basic Management Interfaces	Console, Telnet, Web Browser, SNMP v1, v2c
Secure Management Interfaces	SSH, SSL, SNMP v3
SNMP MIBs	RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Group 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP PoE-Ethernet MIB
Standards Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.3z 1000Base-SX/LX IEEE 802.3ab 1000Base-T IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree protocol IEEE 802.1s Multiple Spanning Tree protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PLUS RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 FRC 3810 MLD version 2
