ICA-4210P

60fps Full HD IR IP Camera with Remote Focus and Zoom

Overview

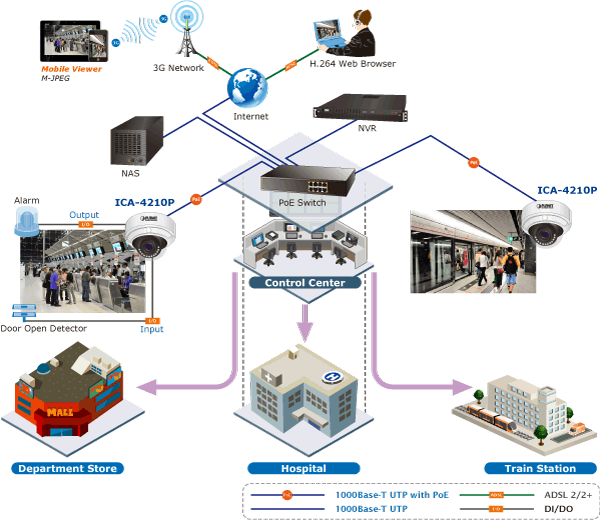

Application
Key Features
Specification
Download
Related Products

High Frame Rate (60fps) for Real-time Surveillance Applications

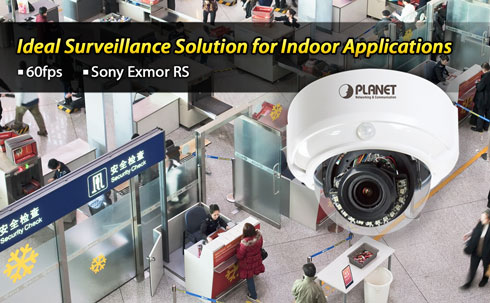

PLANET ICA-4210P Network Camera with Zero-lux Illuminator is a high-resolution camera for the round-the-clock surveillance over IP networks. It supports H.264 and JPEG compression formats and delivers excellent picture quality in Full HD resolutions at 60 frames per second (fps). Incorporating the new Exmor RS™ CMOS image sensor, which is specially designed for surveillance applications, the ICA-4210P provides high-quality images under all lighting conditions. It is perfect for remote and discreet monitoring of indoor areas such as stores, banks, hotels, office lobbies and warehouses.

Day & Night Functionality

To adapt to constantly changing lighting conditions, the ICA-4210P comes with a removable IR-cut filter and built-in low IR illuminators (0.01 lux), which enables the camera to provide color video when there is sufficient light, and black/white video in dark conditions. The ICA-4210P is able to maintain clear images 24 hours a day.

Exceptional Image Quality

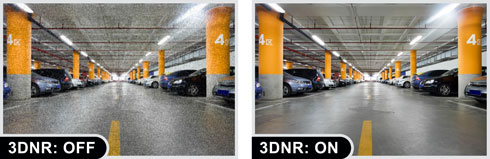

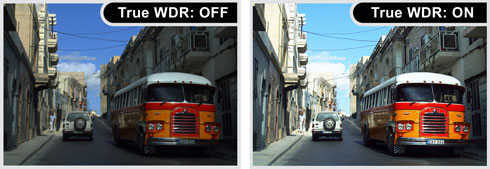

Together with powerful image processing attributes like True Wide Dynamic Range and 3D Digital Noise Reduction (3DNR) technology, the ICA-4210P is able to filter the intense backlight surrounding a subject and remove noises from video signal. It brings an extremely clear and exquisite picture quality even under any challenging lighting conditions.

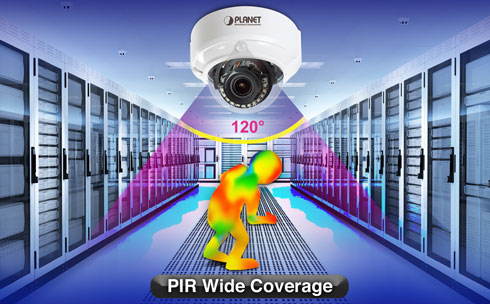

Passive Infrared (PIR) Sensor

When people pass by or in an emergency situation, the built-in PIR motion detection sensor in the ICA-4210P will “detect” and start recording automatically. It is able to detect movement as far as 6 meters away. When motion is detected in the specified areas, the additional function of alarm notification can send an e-mail alert or send captured images via FTP upload to a designated storage server.

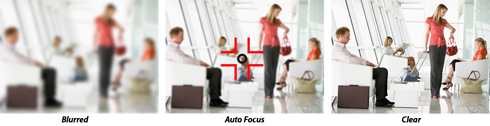

Smart Focus with P-Iris

The ICA-4210P comes with the Smart Focus to make installation and adjustment easier by allowing remote focus and zoom adjustment. P-iris function works by a stepping motor controlled via software to automatically provide the best iris position for the best exposure time in all lighting conditions.

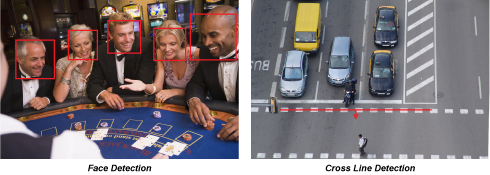

Face Detection and Cross Line Detection

Face Detection detects face and ignores anything else, such as buildings, cars and bodies. When a suspect enters a targeted area, his face is caught in the camera, thereby triggering an alarm. Cross Line Detection is an application especially suitable for general entrance and exit detection in low traffic areas. It detects objects such as persons and vehicles that cross a defined virtual line.

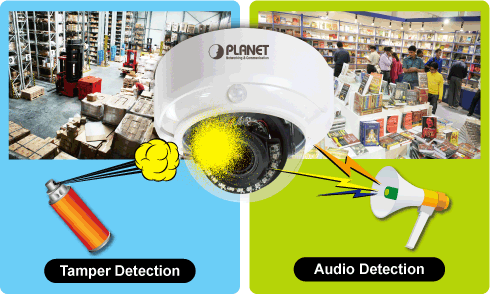

Camera Tampering and Audio Detection

Provided with three individually configurable motion detection zones, the ICA-4210P can record video or trigger alarms and alerts when motion is detected in user-specified areas of the camera image. Also, its external microphone enables the system to capture the sound that is out of reach of camera’s surveillance range and to trigger the audio detection alarm when sounds like screams, glass breaking, etc are detected.

Camera
Image Device	1/2.8 type Sony Exmor RS progressive scan CMOS sensor
Lens	Vari-focal 3.0~10.5mm, P-Iris Mechanical IR-cut filter Angle of view : horizontal: 25 ~ 80 degrees / vertical: 19 ~ 62 degrees
Min Illumination	0.1 lux (color) 0.01 lux (B/W)
IR Illuminations	IR LED x 12, 850nm Built-in IR illuminators, effective up to 20 meters *The IR distance is based on the environment
PIR Sensor	Built-in 6m/120 degrees Coverage
Effective Pixels	1920 x 1080 pixels (Full HD)
Video Compression	H.264 / M-JPEG
Video Resolution	1080P mode H.264: 1080P / 640 x 480 M-JPEG: 1080P / 640 x 480 1080P mode with WDR H.264: 1080P / 640 x 480 M-JPEG: 1080P / 640 x 480
Frame Rate	Up to 60fps for all resolutions
Image Setting	AE, AWB 3D noise reduction True WDR Color, brightness, sharpness, contrast, hue Mirror/Flip 10 Privacy Masks Text, time and date overlay Overlay image on video Digital Image Stabilization (DIS)
Streaming	Simultaneous multi-profile streaming Streaming over UDP, TCP, HTTP, or HTTPS M-JPEG streaming over HTTP (server push) Controllable frame rate and bandwidth AOI
Audio
Audio Streaming	Two-way audio
Audio Compression	RTSP: G.711 64kbps, G.726 32kbps
Microphone	External microphone input
Audio Output	Adjustable audio output gain
Network and Configuration
Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T
Protocol	IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, Samba, ICMP, SNMP, QoS
Security	Password protection, IP address filtering, HTTPS encrypted data transmission, user access log
Users	20 clients on-line monitoring at the same time
System Integration
Application Programming Interface	Open API for software integration ONVIF Compliant
Alarm Triggers	Intelligent Motion / Tampering / Audio / Face / Cross line detection and external input
Alarm Events	File upload via FTP, Samba to NAS, SD card or email Notification via email, HTTP, and TCP External output activation Audio alert output Go to PTZ preset position
Video Buffer	Pre- and post-alarm buffering
General
Power Requirement	12V DC, 1A IEEE 802.3af Class 3
Power Consumption	9W max.
Operating Temperature	0 ~ 50 degrees C
Operating Humidity	20 ~ 80% (non-condensing)
Weight	635g
Dimensions (Φ x L)	152 x 109 mm
Emission	CE, FCC

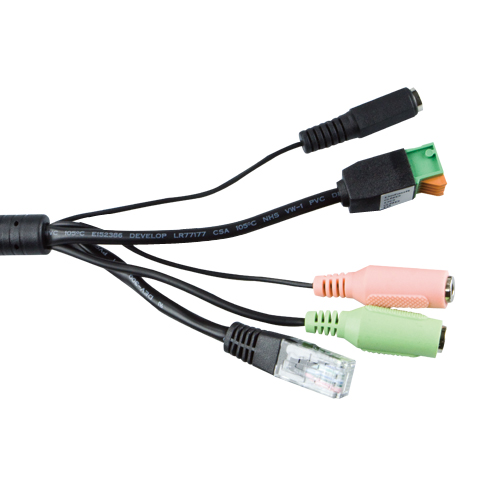

Connectors	10/100/1000 Mbps Gigabit Ethernet, RJ-45 DC power jack Terminal block for 1 alarm input and 1 output RS-485 interface for scanners, pan/tilt External mic input Audio out Micro SD/SDHC card (max. 32GB, Class 6) Factory default reset button
