WDRT-1200AC

1200Mbps 802.11ac Dual-Band Wireless Gigabit Router

Overview
Application
Key Features
Specification
Download
Related Products

Amazing, Next-Generation Wireless High-Speed Connection

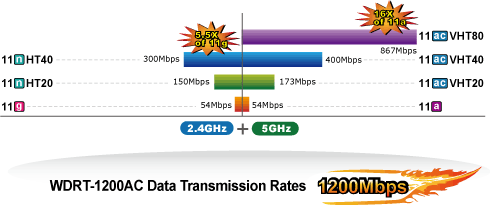

PLANET WDRT-1200AC Wireless Broadband Router supports IEEE 802.11a/b/g/n/ac standard, dual band technology and Gigabit LAN and WAN, meaning it can provide the wireless speed up to 866Mbps in the 5GHz frequency band and 300Mbps in the 2.4GHz frequency band at the same time, which is 16 times faster than that of the traditional 11g access point. With its outstanding stability of high-speed wireless transmission and enhanced reliability, the WDRT-1200AC can provide users with excellent multimedia streaming through their mobile devices anywhere, anytime in the home and office.

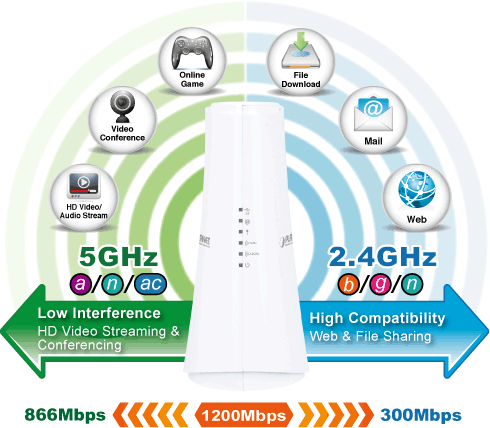

2.4GHz and 5GHz Simultaneous Dual-Band Wireless Connectivity

Since there are more and more wireless applications and electric devices using the radio frequency of 2.4GHz, the wireless channel of 2.4GHz has been already too crowded for clients to enjoy the high-speed wireless connection. In order to avoid the wireless interference between each other, PLANET WDRT-1200AC provides users with the radio frequency of 5GHz for watching HD videos or playing online games additionally. At the same time, it enables other users to surf the Internet via the original radio frequency of 2.4 GHz. The WDRT-1200AC is just like 2 totally independent Access Points in one device for you.

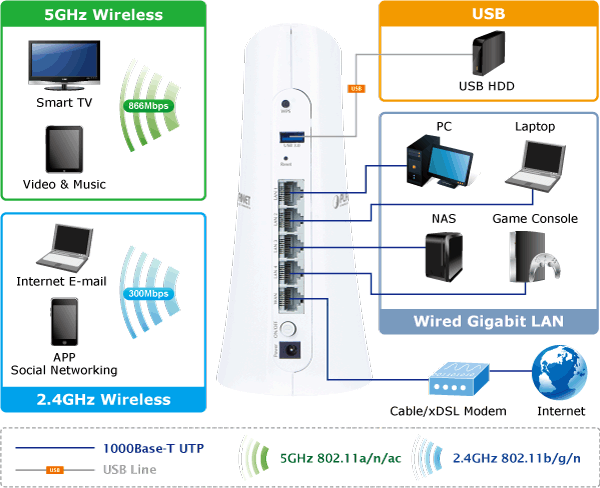

Gigabit LAN Throughput Boosts Network Traffic

Gigabit Ethernet is the perfect solution for one of the major requirements of today's Local Area Networks: improving communication speed. With throughput up to 10 times that of the existing 100Mbps solutions, the WDRT-1200AC fully employs the full functionality of the 802.11ac wireless standards, eliminating the bottleneck of the transmission speed of the megabit wired type. Using the WDRT-1200AC to connect your desktop, NAS, media player and game console guarantees extremely high throughput and excellent signal quality.

Home DLNA Media Server over USB File Sharing

The WDRT-1200AC is built-in with one USB port which can be connected to an external USB storage device for file sharing. Moreover, the DLNA (Digital Living Network Alliance) compliant media server feature allows multimedia contents, such as stream videos, music and photos, to be easily shared among SmartTVs, tablets, mobile phones and laptops on a home network. Thus, all clients on the network can share mass storage through the WDRT-1200AC without complicated network configuration. Via the USB port, it also can output 5V DC power to charge any USB compliant devices.

Hardware Specifications
Interface	WAN Port: 1 x 10/100/1000 Mbps Auto MDI/MDI-X RJ45 port LAN Port: 4 x 10/100/1000 Mbps Auto MDI/MDI-X RJ45 ports (LAN1~4) USB Port: 1 x USB 3.0, Type A, 5V 900mA
Antennas Gain	2.4GHz: 2 x 1.8dBi Internal Antenna 5GHz: 2 x 3.8dBi Internal Antenna
Button	1 x Reset button (Press for about 10 seconds to reset the device to factory default.) 1 x WPS button (Press for 1 second to activate WPS function.)
LED Indicators	PWR x 1 WLAN (2.4GHz & 5GHz) x 2 WAN x 1 WPS x 1
Material	Plastic
Dimensions (W x D x H)	192x 115 x 90 mm
Weight	308g
Power Requirement	12V DC, 2A
Power Consumption	12W
Wireless interface Specifications
Standard	IEEE 802.11ac (Draft 2.0) 5GHz IEEE 802.11a/n 5GHz IEEE 802.11b/g/n 2.4GHz
Frequency Band	Simultaneous 2.4 GHz and 5 GHz
Modulation Type	802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK)
Data Rates	2.4GHz up to 300Mbps 5GHz up to 866Mbps
Channel	2.4GHz: 　　America / FCC: 2.412~2.462GHz (11 Channels) 　　Europe / ETSI: 2.412~2.472GHz (13 Channels) 　　Japan / TELEC: 2.412~2.484GHz (14 Channels) 5GHz: 　　5.180-5.240GHz, 5.745-5.825GHz (Up to 9 channels) 　　The actual channels in application will vary depending on the regulation in 　　different regions and countries
Channel Width	802.11ac: 20/40/80MHz 802.11n: 20/ 40MHz
RF Power / EIRP	2.4GHz: 　　11b: 17±1.5dBm 　　11g: 14±1.5dBm 　　11n: 14±1.5dBm 5GHz: 　　11a: 14±1.5dBm 　　11n: 14±1.5dBm 　　11ac: 13±1.5dBm
Receive Sensitivity	2.4GHz: 　　11b (11Mbps): -79dBm 　　11g (54Mbps): -70dBm 　　11n (20M)mode: -67dBm 　　11n (40M)mode: -64dBm 5GHz: 　　11a: -70dBm 　　11n (20M)mode: -67dBm 　　11n (40M)mode: -64dBm 　　11ac (20M)mode: -57dBm 　　11ac (40M)mode: -54dBm 　　11ac (80M)mode: -51dBm
Transmit Power Control	25%, 50%, 75%, 100%
Wireless Management Features

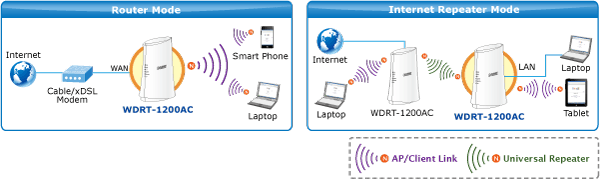

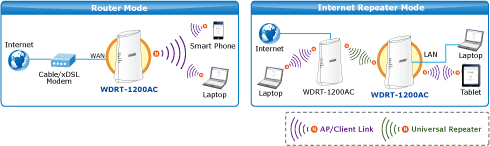

Wireless Modes	■ Router ■ WDS Repeater
Encryption Security	WEP (64/128-bit) WPA / WPA2 WPA-PSK/ WPA2-PSK encryption
Wireless Security	Provides Wireless LAN ACL (Access Control List) filtering Wireless MAC address filtering Supports WPS (WiFi Protected Setup) Enable / Disable SSID Broadcast
Wireless Advanced	Supports Dual-SSID (2.4GHz & 5GHz)
Max. Supported Clients	Wire: 64 Wireless: 128
Router Features
Internet Connection Type	Shares data and Internet access for users, supporting the following Internet accesses: ■ DHCP ■ Static IP ■ PPPoE ■ PPTP ■ L2TP
Firewall	NAT firewall Built-in NAT server which supports Virtual Server, and DMZ Built-in firewall with URL filtering, and MAC address filtering
LAN	Built-in DHCP server supporting static IP address distribution Supports UPnP, Dynamic DNS Supports Packets Statistics Session Number: Max. 7776
USB Sharing	Samba FTP Server DLNA Media Server
System Management	Web-based (HTTP) management interface Remote management (WAN Access Control) SNTP synchronization Supports Scheduling Reboot System Log and e-mail events notification
OS Compatibility	Windows 7 / Windows 8 Windows Vista Windows XP Mac OS X 10.4 or later
Standards Conformance
IEEE Standards	IEEE 802.11ac (Draft 2.0, 2T2R, up to 867Mbps) IEEE 802.11n (2T2R, up to 300Mbps) IEEE 802.11a IEEE 802.11g IEEE 802.11b IEEE 802.11i IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T
Other Protocols and Standards	CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP
Regulatory	CE, RoHS, WEEE
Environment
Temperature	Operating: 0 ~ 45 degrees C Storage: -40 ~ 70 degrees C
Humidity	Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 90% (non-condensing)
