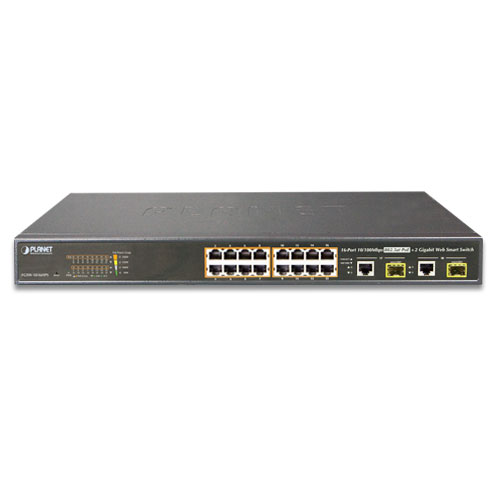

FGSW-1816HPS

16-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Web Smart Ethernet Switch

Overview
Application
Key Features
Specification
Download
Related Products

Ideal Solution for Secure IP Surveillance Infrastructure

Particularly designed for the growing popular IP surveillance applications, PLANET FGSW-1816HPS 802.3at PoE web smart switch is positioned as a surveillance switch with the central management of remote power control and IP camera monitoring. The FGSW-1816HPS provides intelligent PoE functions along with 16 10/100Base-TX ports featuring 30-watt 802.3at PoE+ with RJ-45 copper interfaces and 2 Gigabit TP/SFP combo interfaces supporting high-speed transmission of surveillance images and videos.

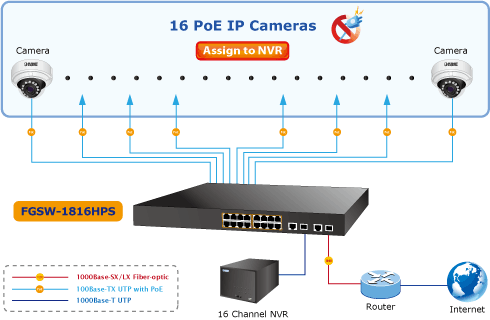

Perfectly- integrated Solution for PoE IP Camera and NVR System

Being different from the general IT industrial PoE switch which usually contains 12 or 24 PoE ports, the FGSW-1816HPS provides 16 802.3at PoE+ ports for catering to medium to large scale of IP surveillance networks at a lower total cost. With its 7.2Gbps high-performance switch architecture and 220-watt PoE power budget, the recorded video files from 16 PoE IP cameras can be powered by the FGSW-1816HPS and saved in the 8 / 16 / 32-channel NVR systems or surveillance software to perform comprehensive security monitoring. For instance, one FGSW-1816HPS can be combined with one 16-channel NVR and 16 PoE IP cameras as a kit for the administrators to centrally and efficiently manage the surveillance system in the local LAN and the remote site via Internet.

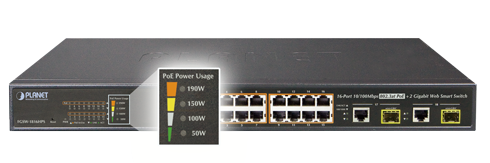

Intelligent LED Indicator for Real-time PoE Usage

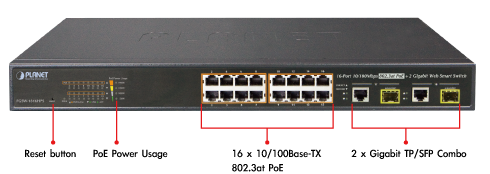

The FGSW-1816HPS helps users to monitor the current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the FGSW-1816HPS Fast Ethernet PoE+ Switch has four orange LEDs indicating 50W, 100W, 150W and 190W of PoE power usage.

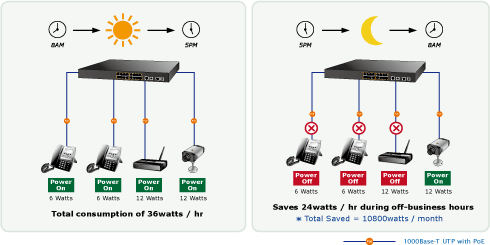

PoE Schedule for Energy Saving

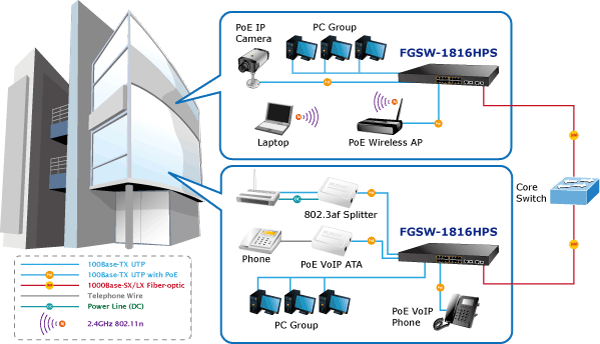

Besides being used as an IP Surveillance, the FGSW-1816HPS is certainly applicable to constructing any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the FGSW-1816HPS can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function is for you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.

Physical Port

16-port 10/100Base-TX RJ-45 copper with PoE in-line supported
2-port 10/100/1000Base-T RJ-45 copper
2 1000Base-X mini-GBIC/SFP slots to share with Port-17 to Port-18
Reset button for system management

PoE

Complies with IEEE 802.3at High Power over Ethernet End-Span PSE
Complies with IEEE 802.3af Power over Ethernet End-Span PSE
Up to 16 IEEE 802.3at / 802.3af devices powered
Supports PoE Power up to 30.8 watts for each PoE port
Detects powered device (PD) automatically
Circuit protection prevents power interference between ports
Remote power feeding up to 100m
PoE Management

- Per port PoE function enable/disable

- PoE Port Power feeding priority

- Per PoE port power limit

- PD classification detection

- PoE Power sequential

- PoE schedule

Layer 2 Features

Auto-MDI/MDI-X detection on each RJ-45 port
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Supports broadcast storm control
Supports VLAN:

- IEEE 802.1Q tag-based VLAN, up to 32 VLANs groups, out of 4095 VLAN IDs

- Port-based VLAN, up to 16 VLAN groups

- MTU VLAN (Multi-tenant Unit VLAN)

Supports Link Aggregation

- 802.3ad Link Aggregation Control Protocol (LACP)

- Cisco ether-channel (Static Trunk)

Supports Spanning Tree Protocol

- STP, IEEE 802.1d Spanning Tree Protocol

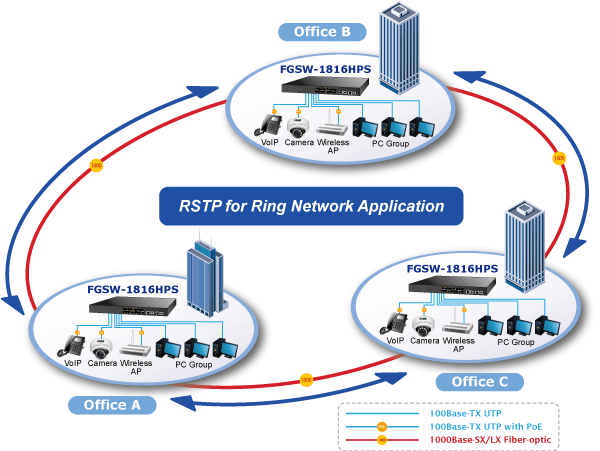

- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol

Port mirroring to monitor the incoming or outgoing traffic on a particular port
Provides port mirror (Many-to-1)
Loopback protection to avoid broadcast loops

Quality of Service

2 priority queues on all switch ports
Traffic classification

- Port-based priority

- IEEE 802.1p-based priority

- IP TOS / DSCP-based priority

- TCP / UDP port-based QoS

Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast

Supports IGMP Snooping v1 and v2

Security

Physical port to MAC address binding
TCP/UDP port number filter: Forwarding or discarding typical network applications
Port mirroring to monitor the incoming or outgoing traffic on a particular port

Management

Switch Management Interfaces

- Web switch management

- SNMP v1 switch management

Supports DHCP Option82 and DHCP Relay
Firmware upload/download via HTTP
Network Time Protocol (NTP)
Hardware reset button for system reboot or reset to factory default

Hardware Specifications
10/100Mbps Copper Ports	16 10/100Base-TX RJ-45 Auto-MDI/MDI-X ports
Gigabit Copper Ports	2 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots	2 1000Base-X SFP interfaces, shared with Port-17 to Port-18
Switch Architecture	Store-and-Forward
Switch Fabric	7.2Gbps / non-blocking
Throughput	5.35Mpps@64Bytes
Address Table	4K entries, automatic source address learning and ageing
Share Data Buffer	2.75Mb embedded memory for packet buffers
Flow Control	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
Maximum Transmit Unit size (MTU size)	1536 Bytes
Reset Button	< 5 sec: System reboot > 5 sec: Factory Default
Dimensions (W x D x H)	440 x 200 x 44.5 mm, 1U height
Weight	2.55kg
LED	System: 　　　Power (Green) 10/100Base-TX RJ45 Interfaces (Port1 to Port16): 　　　10/100Mbps LNK/ACT (Green) 　　　PoE In-Use (Orange) 10/100/1000Base-T RJ45 / SFP Interfaces (Port17 to Port18): 　　　LNK/ACT (Green) 　　　100/1000 (Green) PoE Usage 　　　50W, 100W, 150W, 190W (Orange)
Cable Twisted-Pair	10Base-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters 100Base-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters 1000Base-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters
Cable Fiber-Optic Cable	1000Base-SX : 　　　50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m 　　　(varying on SFP module) 1000Base-LX : 　　　9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120 　　　kilometers (varying on SFP module)
Power Requirements	100~240V AC, 50/60Hz, 4A
Power Consumption	Max. 240 watts / 816 BTU
ESD Protection	2KV DC
Power over Ethernet
PoE Standard	IEEE 802.3af / 802.3at PoE / PSE
PoE Power Supply Type	End-span
PoE Power Output	Per Port 52V DC, Max. 30.8 watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	220 watts (max.)
PoE Ability PD @ 7 watts	16 units
PoE Ability PD @ 15.4 watts	14 units
PoE Ability PD @ 30.8 watts	7 units
Layer 2 Functions
Port Configuration	Port disable / enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable / enable
Port Status	Display each port’s speed duplex mode, link status, flow control status, auto negotiation status and trunk status
Port Mirroring	TX / RX / Both Many-to-1 monitor
VLAN	802.1Q tagged-based VLAN, up to 32 VLAN groups, out of 4094 VLAN IDs Port-based VLAN, up to 18 VLAN groups MTU VLAN
Link Aggregation	2 groups of 4-Port 10/100Base-TX trunk supported 1 group of 2-Port 10/100/1000Base-T trunk supported
QoS	Allow to assign low / high priority on each port First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy
IGMP Snooping	IGMP (v1/v2) Snooping, up to 32 multicast groups
Security Control	MAC address binding TCP & UDP filter
Management Functions
Basic Management Interfaces	Web Browser, SNMP v1
Standards Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet IEEE 802.3x Full-duplex flow control IEEE 802.1Q VLAN IEEE 802.1p QoS IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus
Environment
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
