| Hardware |
| Ethernet |
1 x RJ-45, 10/100/1000Base-T |
| USB Interface |
2 x USB 2.0 for backup device and mouse |
| Video Interface |
VGA and HDMI video interfaces |
| Audio Interface |
1 x mic-in (phone jack 3.5mm), 1 x audio-out (phone jack 3.5mm) |
| Storage Device |
2 x 3.5" SATA III hard disk connector, 1 x e-SATA connector |

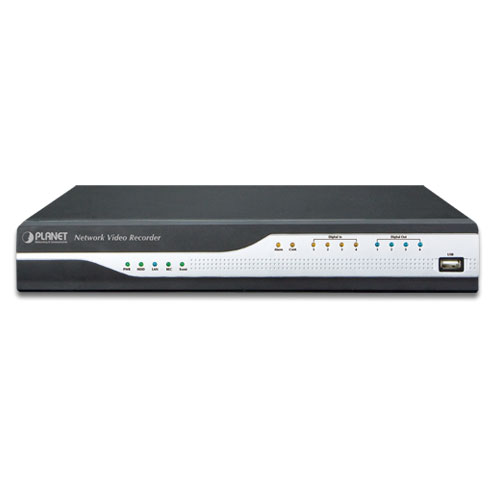

| LED |
Power, HDD, LAN, REC, Event, Alarm, Camera, DI/DO |
| Button |
Reset |
| Buzzer |
1 x Buzzer |
| DI/DO |
4 x Digital in, 4 x Digital out |
| Camera |
| Max. Channels |
16-channel IP cameras |
| Camera Added |
Manual / Auto Search / Auto Setup |
| Video |
| Compression |
H.264 |
| Resolution |
5M / 3M / Full HD / SXGA / VGA / QVGA |
| Max. Live Video Frame Rate (Local Display) |
480fps@D130
360fps@720P30
120fps@1080P30
20fps@5M15
Max. 5MP/channel
|
| Max. Throughput |
80Mbps |
| Snapshot |
- Preview snapshot in HDD or removable device
- Search event snapshot
- Backup to USB device
|
| Audio |
| Audio Type |
2-way |
| Audio Format |
G.711, G.726 |
| Live view |
| Display Mode |

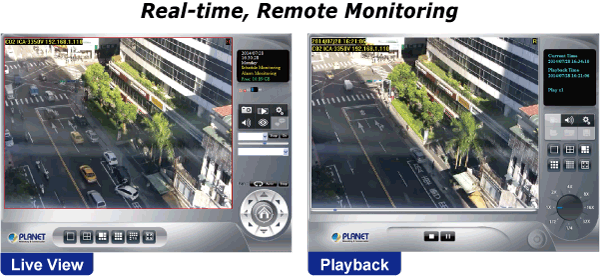

Live View / Playback / Full Screen |
| Split Screen |
1 / 4 / 6 / 9 / 16 / Full Screen |
| Full Screen |
1 / 4 / 6 / 9 / 16 |
| PTZ Support |
Preset / Tour / Auto Pan / Iris / Focus / Speed, and Jjoystick |
| Playback |
| Split Screen |
1 / 4 / 6 / 9 / 16 / Full Screen |
| Search Mode |
Simple / Graphical / Event |
| Play Method |
Play / Reverse / Pause / Seek / Pre I-frame / Next Frame
Search by time or event
|
| Record |
| Recording Mode |
- Scheduled recording each camera
- Round the Clock / Motion Record mode / DI Detection / Event Triggering
- Pre-alarm / Post-alarm configuration
- Auto Recycle
|
| Monitor |

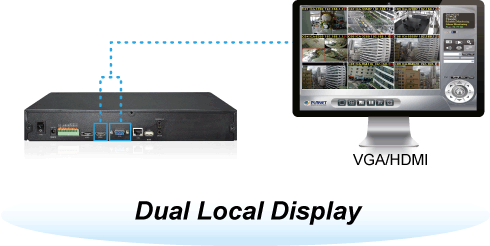

| Dual Monitor |
Displays the contents, depending on max. channels |
| Monitor Resolutions |
1920x1080, 1440x900, 1366x768, 1280x1024, 1024x768 |
| Network and Configuration |
| Network Service |
Fixes IP / DHCP / PPPOE / DIPS Report / UPNP / DDNS |
| Notification |
SMTP / HTTP / FTP / TCP |
| Triggers and Event |

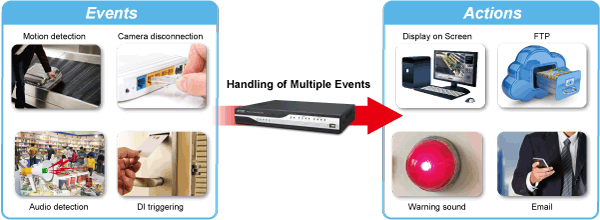

| Event Type |
- Motion Alarm
- Alarm Disconnection
- Audio Detection
- Digital Input
- Scheduled Triggering
- HDD Error
|
| Event Action |
- Display on Screen
- DO
- Buzzer Alarm
- Snapshot
- Recording
- Mail
- FTP
- TCP
- HTTP
|
| Management |
| Number of Groups |
2 (Administrator and User ) |
| Privileges |
Live View / Playback / Record / Setting / PTZ / Two-way Audio |
| User Interface |
- Graphic local user interface (operated by mouse)
- Web browser (Internet Explorer 7 or above)
- CMS Utility
|
| Log Type |
System / Event / Bit-rate |
| Software Utility |
Search utility / Mobile app / CMS |
| Environment |
| Power |
12V DC, 4.16A |
| Consumption |
8W (without HDD) |
| Operating Temperature |
0~40 degrees C |
| Storage Temperature |
-40~70 degrees C |
| Humidity |
0~85% (non-condensing) |
| Weight |
1455g |
| Dimensions (W x D x H) |
330 x 252 x 57 mm |
