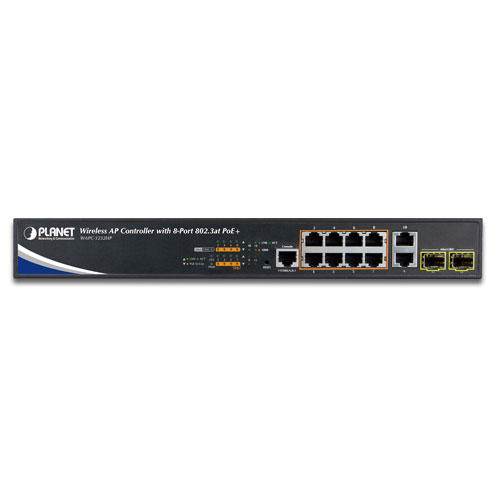

WAPC-1232HP

Wireless AP Controller with 8-Port 802.3at PoE+

Overview
Application
Key Features
Specification

Wireless Management Solution in All Aspects

PLANET WAPC-1232HP, a brand-new Wireless Access Point Controller, features smart AP control, L2+/L4 IP management and intelligent PoE capability to enable service providers and IT managers to control all wireless APs at the same time in small and medium wireless network environments, such as hotels, villas, resorts and any large area deployment. The WAPC-1232HP provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit Switching engine along with 8 10/100/1000BASE-T ports featuring 30-watt 802.3at PoE+, 2 additional Gigabit copper ports and another 2 extra 100/1000BASE-X SFP fiber slots. Its simplified deployment and management ease the integration of devices into the existing wired and wireless networks.

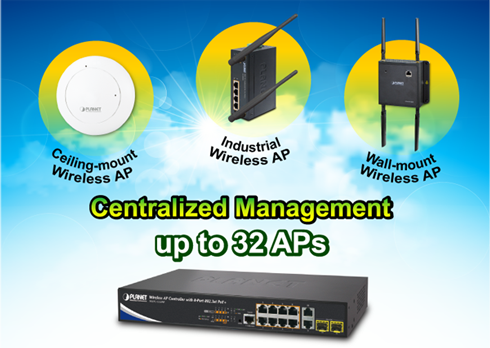

Centralized Remote Control of Managed APs

PLANET Wireless AP Controller features centralized remote control of managed APs without needing to manually configure each AP for the wireless SSID, radio band and security settings. With one click of the mouse for the one-time configuration of the WAPC-1232HP’s wireless parameters, wireless settings of multiple APs can be simultaneously established to minimize deploying time, effort and cost.

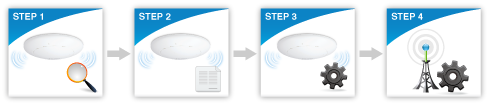

Optimizing Wireless Network within Minutes

The WAPC-1232HP offers a user-friendly Web GUI for easy configuration. It enables wireless IT managers to complete a four-step configuration process of multiple APs. Through this Web interface, the wireless IT managers can discover manageable APs on the networks first, edit AP profiles and then apply the profiles to selected AP or AP group. Following these steps, configurations for multiple APs can be done in just a few minutes.

AP Cluster Management

PLANET Wireless AP Controller supports AP cluster management, which enables the central management of a group of APs at one time. According to requirements, APs can be flexibly expanded or removed from an AP group in the future.

Centralized Power Management for Wireless AP Networking

The eight Gigabit PoE ports of the WAPC-1232HP can be used to provide power directly to APs that connect to the AP controller. Each of the eight Gigabit ports provides 30 watts of power, which means a total power budget of up to 240 watts can be utilized simultaneously without considering the different types of PoE applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network solution to Access Points for small businesses and enterprises.

Built-in Unique PoE Functions for AP Power Control

As a managed PoE Switch for stable and reliable wireless AP operation, the WAPC-1232HP features special PoE Management functions:

■ AP Alive Check

■ Scheduled AP Power Recycling

■ PoE Schedule

■ SMTP/SNMP Trap Event Alert

Intelligent PoE AP Alive Check

The WAPC-1232HP can be configured to monitor connected AP status in real time via ping action. Once the AP stops working and responding, the WAPC-1232HP will recycle the PoE port power and bring the AP back to work. It will greatly enhance the network reliability through the PoE port resetting the AP’s power source and reduce administrator management burden.

PoE Schedule for Energy Saving

The “PoE schedule” function enables wireless IT managers to activate or inactivate PoE power feeding for each PoE port during specified time intervals, which is a powerful function to help SMBs or enterprises save power and money.

Robust Layer2 Features

The WAPC-1232HP can be programmed for advanced switch management function, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop protection, IGMP/MLD snooping, Layer 2/4 QoS, and bandwidth control. The WAPC-1232HP allows the operation of a high-speed trunk with multiple ports and supports connection fail-over as well.

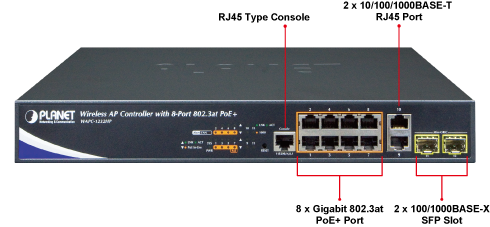

Physical Port

10-Port 10/100/1000BASE-T Gigabit RJ45 copper with 8-Port IEEE 802.3at PoE Injector (Port-1 to Port-8)
2 100/1000BASE-X mini-GBIC/SFP slots, SFP type auto detection
RJ45 type console interface for basic management and setup

Wireless AP Management

Automatically discovers managed APs, up to 32 units
Locally maintains configuration profiles for all managed APs
Centrally monitors all managed APs’ statuses and associated client list
Eight built-in 802.3at PoE+ ports to directly manage AP power control
AP alive check for automatic operating status diagnostic

Power over Ethernet

Complies with IEEE 802.3at Power over Ethernet Plus
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 8 ports for IEEE 802.3af/at devices powered
Supports PoE power up to 30.8 watts for each PoE port
Auto detects powered device (PD)
Remote power feeding up to 100m
PoE Management

- Total PoE power budget control

- Per port PoE function enable/disable

- PoE Port Power feeding priority

- Per PoE port power limitation

- PD classification detection

- PD alive-check

Layer 2 Features

Storm Control support

- Broadcast / Multicast / Unicast / Unknown unicast

Supports VLAN
- IEEE 802.1Q tagged VLAN
- Up to 255 VLANs groups, out of 4095 VLAN IDs
- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- Private VLAN Edge (PVE)
- Protocol-based VLAN
- MAC-based VLAN
- IP Subnet-based VLAN
- Voice VLAN
- Management VLAN
Supports Spanning Tree Protocol
- STP, IEEE 802.1D Spanning Tree Protocol
- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol (via VLAN)
- STP BPDU Guard and BPDU filtering
Supports Link Aggregation
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
- Maximum 4 trunk groups, up to 4 ports per trunk group
- Up to 8Gbps bandwidth (full duplex mode)
Provides port mirror (many-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops

Layer 3 IP Routing Features

Supports maximum 32 software static routes and route summarization

Quality of Service

Ingress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification

- IEEE 802.1p CoS

- TOS / DSCP / IP Precedence of IPv4/IPv6 packets

- IP TCP/UDP port number

- Typical network application

Strict priority and Weighted Round Robin (WRR) CoS policies
Traffic-policing policies on the switch port
DSCP remarking

Multicast

Supports IGMP Snooping v1, v2 and v3 for IPv4 multicasting network
Supports MLD Snooping v1 and v2 for IPv6 multicasting network
Querier mode support
IGMP Snooping port filtering
MLD Snooping port filtering
MVR (Multicast VLAN Registration)

Security

Authentication

− IEEE 802.1x Port-based / MAC-based network access authentication

− Built-in RADIUS client to co-operate with the RADIUS servers

− TACACS+ login users access authentication

− RADIUS / TACACS+ users access authentication

Access Control List

− IPv4 / IPv6 IP-based ACL

− MAC-based ACL

Source MAC / IP address binding
Port Security for Source MAC address entries filtering
DHCP Snooping to filter distrusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP Source Guard prevents IP spoofing attacks
Auto DoS rule to defend DoS attack
IP address access management to prevent unauthorized intruder

Management

IPv4 and IPv6 dual stack management
Switch Management Interfaces

- Console / Telnet Command Line Interface

- Web switch management

- SNMP v1, v2c, and v3 switch management

- SSH / SSL secure access

User Privilege levels control
System Maintenance

- Firmware upload/download via HTTP / TFTP

- Configuration upload / download through Web interface

- Dual Images

- Reset button for system reboot or reset to factory default

- Built-in Trivial File Transfer Protocol (TFTP) client

Four RMON groups (history, statistics, alarms and events)
IPv6 IP Address / NTP / DNS management and ICMPv6
BOOTP and DHCP for IP address assignment
DHCP Relay
DHCP Option82
NTP (Network Time Protocol)
Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
PLANET Smart Discovery Utility for deployment management

Hardware Specifications
Copper Ports	10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots	2 1000BASE-SX/LX/BX SFP interfaces (Port-11 and Port-12) Supports 100/1000Mbps dual mode and DDM
Console Port	1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Switch Architecture	Store-and-Forward
Switch Fabric	24Gbps / non-blocking
Switch Throughput	17.76Mpps@64 bytes
Address Table	8K entries, automatic source address learning and ageing
Shared Data Buffer	1392 kilobytes
ESD Protection	6KV
Flow Control	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
Jumbo Frame	9Kbytes
Reset Button	< 5 seconds: System reboot > 5 seconds: Factory default
Dimensions (W x D x H)	330 x 200 x 43.5 mm, 1U high
Weight	2kg
LED	Power, fan alert, 10/100/1000 Link / Act per RJ45 port, 100/1000 Link / Act per SFP port, PoE-in-Use for Port 1~ 8
Power Consumption	Max. 320 watts / 1091 BTU
Power Requirements	100~240V AC, 50/60Hz
Enclosure	Metal
Fan	Smart fan x 1 (Speed depending on operating temperature)
Wireless AP Management
Maximum Managed APs	32
Maximum AP Groups	10
Maximum APs per AP Group	32
Compatible Access Points	■ WDAP-C7200AC ■ WDAP-W7200AC
Encryption Security	■ WEP (64/128-bit) encryption security ■ WPA Personal / Enterprise (TKIP / AES) ■ WPA2 Personal / Enterprise (TKIP / AES) ■ Enterprise Class 802.1x
Centralized AP Management	■ AP auto discovery ■ Remote AP power reboot ■ AP auto IP assignment ■ AP group management ■ AP status monitoring ■ AP real-time traffic monitoring ■ AP device name / location editing
Power over Ethernet
PoE Standard	IEEE 802.3af PoE / 802.3at PoE+ PSE
PoE Power Supply Type	End-span
PoE Power Output	Per port 56V DC, max. 30.8 watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	240 watts (max.) @ 25 degrees C 200 watts (max.) @ 50 degrees C
PoE Ability	PD @ 7 Watts:8 units PD @ 15.4 Watts:8 units PD @ 30.8 Watts:8 units
Layer 2 Functions
Port Configuration	Port disable / enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable / enable
Port Status	Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port Mirroring	TX / RX / both Many-to-1 monitor
VLAN	802.1Q tagged based VLAN 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4094 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP / static trunk 5 trunk groups with each 5-port trunk supported
Spanning Tree Protocol	STP, IEEE 802.1D Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
QoS	Traffic classification based, strict priority and WRR 8-level priority for switching - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/TOS field in IP packet
IGMP Snooping	IGMP (v1/v2/v3) Snooping, up to 255 multicast groups IGMP Querier mode support
MLD Snooping	MLD (v1/v2) Snooping, up to 255 multicast groups MLD Querier mode support
Access Control List	IP-based ACL / MAC-based ACL Up to 256 entries
Bandwidth Control	Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps
Layer 3 Functions
IP Interfaces	Max. 8 VLAN interfaces
Routing Table	Max. 32 routing entries
Routing Protocols	IPv4 software static routing IPv6 software static routing
Management Functions
Basic Management Interfaces	Console / Telnet / Web browser / SNMP v1, v2c
Secure Management Interfaces	SSH, SSL, SNMP v3
SNMP MIBs	RFC-1213 MIB-II RFC-1493 Bridge MIB RFC-1643 Ethernet MIB RFC-2863 Interface MIB RFC-2665 Ether-Like MIB RFC-2819 RMON MIB (Group 1, 2, 3 and 9) RFC-2737 Entity MIB RFC-2618 RADIUS Client MIB RFC-2863 IF-MIB RFC-2933 IGMP-STD-MIB RFC-3411 SNMP-Frameworks-MIB RFC-4292 IP Forward MIB RFC-4293 IP MIB RFC-4836 MAU-MIB IEEE 802.1X PAE LLDP Power over Ethernet MIB
Standards Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1X Port Authentication Network Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 FRC 3810 MLD version 2
Environments
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 20 ~ 95% (non-condensing)
Storage	Temperature: -20 ~ 70 degrees C Relative Humidity: 20 ~ 95% (non-condensing)
