IPX-2100

Internet Telephony PBX System

Overview
Application
Key Features
Specification
Download
Related Products

Intuitive, Ease-of-Use IP PBX Management

PLANET next-generation IPX-2100 IP PBX telephony system is easy to set up and manage thanks to a perceptive web-based user interface and quick setup wizard. Since it is an Asterisk-based equipment, the entire benefits of the pre-loaded SIP can be had as any other enterprise-level appliance would come equipped with the feature. The IPX-2100 is able to accept 100 user registrations, and easy to manage a full voice over IP system with the convenience and cost advantages. The equipment is best paired with PLANET color IP phones to get the function going smoothly and to have a seamless connection between the software and hardware.

Model

Off-net Calling Capability, Call Restriction, Call Access Control

The IPX-2100 integrates up to 8 calls via the IPX-21FO (4 FXO), IPX-21SL (2 FXO + 2 FXS) and IPX-21GS (4 GSM) modules to form a feature-rich PBX system that supports seamless communications between the existing PSTN calls, analog phones, IP phones and SIP-based endpoints.

Replacing Old PBX Easily without New Wiring

Cost-effective, easy-to-install and simple-to-use, the IPX-2100 converts standard telephones into IP-based networks. It enables the service providers and enterprises to offer users traditional and enhanced telephony communication services via the existing broadband connection to the Internet or corporation network.

With the IPX-2100, home users and companies are able to save the installation cost and extend their past investments in telephones, conferences and speakerphones. The IPX-2100 can be the bridge between the traditional analog system and IP network without having to invest heavily.

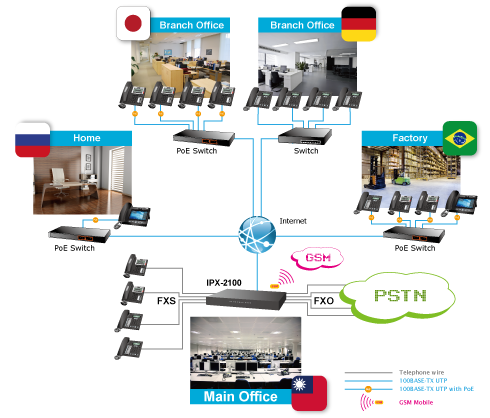

Distributed VoIP Network Infrastructure

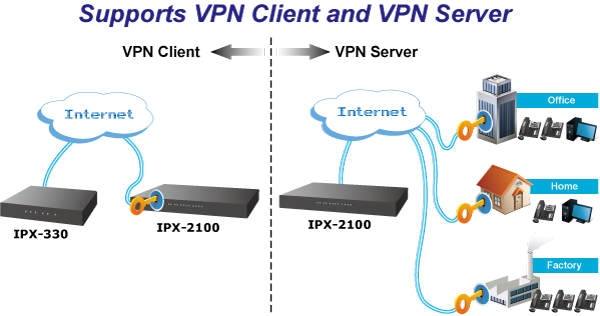

In the new-generation communication age, the IPX-2100 supports IPv6 and VPN (client/server) connection to provide users with more flexible and advantageous communications products. With PLANET DDNS function, the IPX-2100 also helps users to apply and remember the login information easier. Its multiple-language feature helps user to quickly and friendly manage the system. Moreover, the IPX-2100 supports Lync server to which smart phone (using third-party app) and analog phone are connected via its communication with other devices of Lync server.

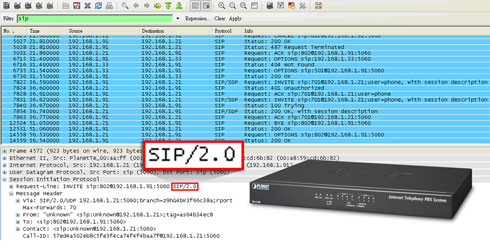

Standard Compliance

Compliant with the Session Initiation Protocol 2.0 (RFC 3261), the IPX-2100 is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

System Highlights

30 concurrent calls and up to 100 registers
HD voice codec G.722 for perfect voice quality
Fax to Email and Email to Fax for green office
Voicemail to Email for not missing any important message
Paging and intercom function strengthens the work efficiency
Built-in SIP Proxy Server following RFC 3261
Multiple Language of GUI for international business
Web-based Control Panel for easy configuration and management of the system
Hardware Echo Cancellation module for great and smooth communication
Strong security features protect your system from hacking
Maximum 8 ports FXO/FXS/GSM (on 2 slots)
Records voice and voicemail to external USB disk
Quick Setup Wizard

Codec and Protocol

SIP 2.0 (RFC3261), IAX and Lync server compliant
Audio Codec: G.711-Ulaw, G.711-Alaw, G.722, G.726, G.729, GSM, Speex and Opus
Video Codec: H.261, H.263, H.263+, H.264 and VP8
DTMF: RFC 4733, SIP info, in-band and auto

Network and Security Features

DHCP Server, DDNS Client (PLANET DDNS & Easy DDNS)
SNMP v1/v2, IEEE 802.1Q of VLAN
IPv4/IPv6, TR069
Manual Configuration of Static Route Table
Troubleshooting (Ping, Traceroute)
VPN Server, VPN Client
Refuse SIP Register DoS,
Refuse Abort Invite Dos
Refuse SSH Login DoS
Firewall and enhances HTTPS connection

PBX Features

SIP Register with UDP/TCP/TLS
One Touch Recording
Mobility Extension
Black List
BLF (Busy Lamp Field)
CDR (Call Detailed Record)
Conference Room
DID (Direct Inward Dialing Number)
SRTP (Secure Realtime Transport Protocol)
DND (Do Not Disturb)
IVR (Interactive Voice Responses)
Follow Me, Call Spy and PIN Set
Distinctive Ringtone
Multi-language System Prompt
Phone Book, Speed Dial
Ring Group, SIP Trunk
Skype for SIP, Smart DID, System Log
T.38 fax (pass-through), voicemail and voicemail to e-mail

Call Features

Call Back, Call Forward, Call Group
Call Hold, Call Paging and Intercom
Call Park, Call Pickup, Call Queue
Call Record, Call Route, Blind Transfer
Attend Transfer, Call Waiting
Caller ID, Dial by Name
Customized IVR, On-hold Music, Transfer
Three-way Conferencing, Video Call

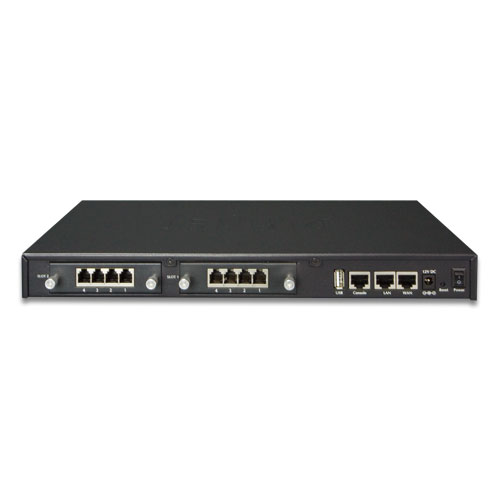

Hardware
LAN	1 x 100BASE-TX RJ45 for LAN
WAN	1 x 100BASE-TX RJ45 for WAN
2 Slots	Supports maximum 8 ports (FXS/FXO/GSM)
USB	Store data for external disk
Console	Console Interface
Reset Button	Reset to factory default
Protocols and Standard
Standard	SIP 2.0 (RFC 3261), IAX2
Protocols	RFC 793 TCP RFC 826 ARP RFC 1034, 1035 DNS RFC 1631 NAT RFC 2068 HTTP RFC 2131 DHCP RFC 2516 PPPoE RFC 3261, RFC 3311, RFC 3515 RFC 3265, RFC 3892, RFC 3361 RFC 3842, RFC 3389, RFC 3489 RFC 3428, RFC 2327, RFC 2833 RFC 2976, RFC 3263
Voice Codec	G.711-Ulaw, G.711-Alaw, G.722, G.726, G.729, GSM, Speex and Opus
Video Codec	H.261, H.263, H.263+, H.264 and VP8
Fax over IP	T.38 Fax (pass-through) Note: T.38 support is dependent on fax machine, SIP provider and network/transport resilience
Voice Processing	DTMF detection and generation RFC 4733, SIP info, in-band and Auto
Protocols	SIP 2.0 (RFC 3261), TCP/IP, UDP/RTP/RTCP, HTTP, ICMP, ARP, DNS, DHCP, NTP/SNTP, PPP, PPPoE
Internet Sharing
Network Features	DDNS client (Planet DDNS and easy DDNS) DHCP server/SNMP v1/v2 IEEE 802.1Q of VLAN IP assignment (DHCP/Static) IPv4, IPv6 Manual configuration of static route table Troubleshooting (ping, traceroute) VPN server ,VPN client
Security Features	Refuse SIP Register DoS, Refuse Abort Invite Dos Refuse SSH Login DoS Firewall and enhances HTTPS connection
Features
PBX Features	SIP Register with UDP/TCP/TLS Phone Auto-Provision One Touch Recording Mobility Extension Black List BLF (Busy Lamp Field) CDR (Call Detailed Record) Conference Room DID (Direct Inward Dialing Number) DISA (Direct Inward System Access) DNIS (Dialed Number Identification Service) SRTP (Secure Realtime Transport Protocol) DND (Do Not Disturb) FOP (Flash Operation Panel) Status Monitoring IVR (Interactive Voice Responses) Follow Me, Call Spy and PIN Set Distinctive Ringtone Multi-language System Prompt Multiple Language of GUI Phone Book, Speed Dial LDAP Server for phonebook Record Files Download Ring Group, SIP Trunk Skype for SIP, Smart DID, System Log T.38 fax (pass-through), voicemail and voicemail to e-mail Time-based Rule PBX log, web access log and PBX debug log
Call Features	Call Back, Call Forward, Call Group Call Hold, Call Paging and Intercom Call Park, Call Pickup, Call Queue Call Record, Call Route, Blind Transfer Attend Transfer, Call Waiting Caller ID, Dial by Name Customized IVR, On-hold Music, Transfer Three-way Conferencing, Video Call
System Capacity
System Capacity	30 concurrent call legs Up to 100 IP phone registers/extensions Recording and Voicemail: 150 hours
Network and Configuration
Access Mode	Static IP, DHCP
LED Indications	SYS: 1, LNK/Off WAN: 1, LNK/Off LAN: 1, LNK/Off PWR: 1, LNK/Off SLOT: FXO/GSM (Red), FXS (Green)
Dimensions (W x D x H)	343 x 154 x 35 mm
Operating Environment	0~40 degrees C, 5~95% humidity
Power Requirements	Input: 100 ~ 240V AC Output: DC 12V 2A
EMC/EMI	CE, FCC Class B, RoHS
