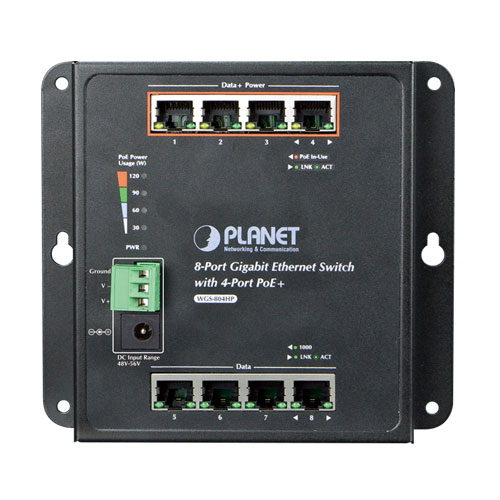

WGS-804HP

8-Port 10/100/1000T Wall Mounted Gigabit Ethernet Switch with 4-Port PoE+

Overview
Application
Key Features
Specification
Download
Related Products

Easily-deployed and Expanded PoE Network

Designed to be installed in a wall enclosure or simply mounted at any convenient location on a wall, PLANET WGS-804HP is an innovative, wall-mounted industrial 8-port Gigabit Ethernet Switch with 4-port 802.3af/802.3at Power over Ethernet. It comes in a compact but rugged IP30 metal housing. Featuring a total PoE budget of 120 watts, ultra networking speed and operating temperature ranging from -10 to 60 degrees C, the WGS-804HP is an ideal solution to meeting the demand for sufficient PoE power for the following network applications.

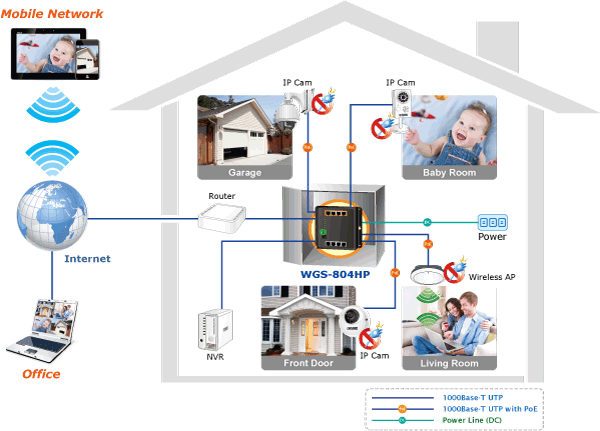

　■ Building / Home automation network

　■ Internet of things (IoT)

　■ IP surveillance and wireless

The WGS-804HP is able to operate reliably, stably and quietly in any environment without affecting its performance, and provides a quick, safe and easy deployment of PoE PDs with power feeding.

Innovative Wall-mount Installation

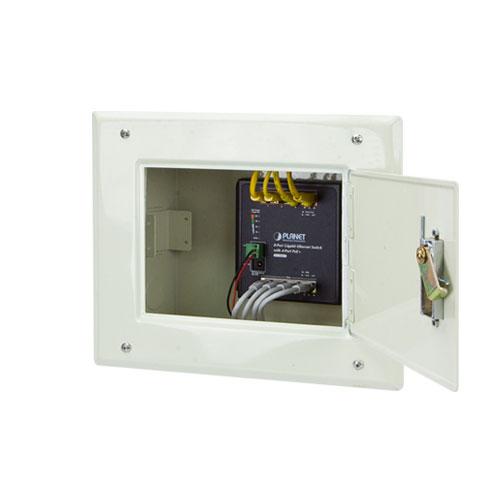

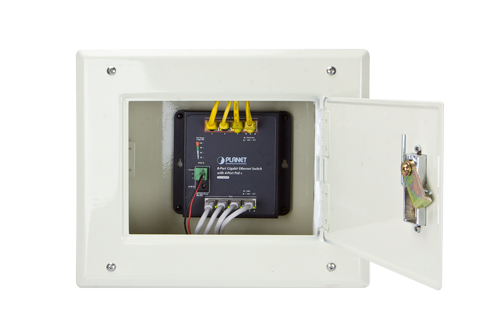

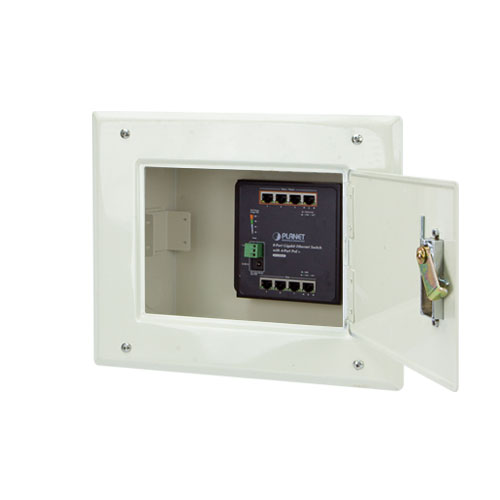

The WGS-804HP is specially designed to be installed in a narrow environment, such as wall enclosure or weak electric box. The compact, flat and wall-mounted design fits easily in any space-limited location. It adopts “Front Access” design, making the installing, cable wiring, LED monitoring and maintenance of the WGS-804HP placed in an enclosure very easy for technicians to manage. The WGS-804HP’s fixed wall mounting, magnetic wall mounting or DIN rail installation enables its efficient use of enclosure space, thereby making its usability more flexible.

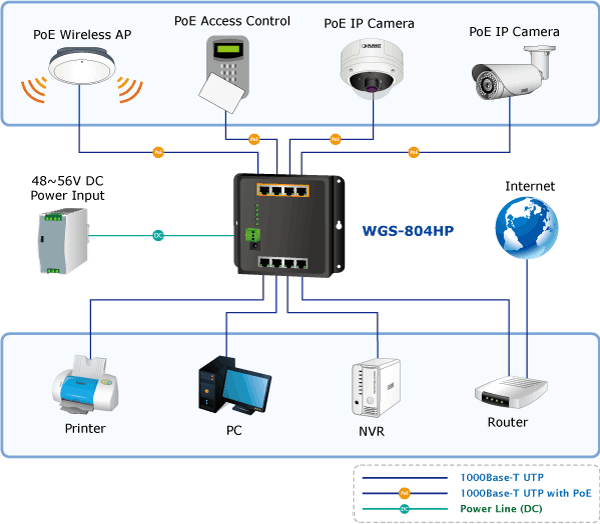

Centralized Power Distribution for Small Ethernet Networking

The WGS-804HP provides four PoE ports that combine up to 120 watts of power output budget for catering to small scale of PoE network applications. Compliant with both IEEE 802.3at and IEEE 802.3af Power over Ethernet standards, each PoE port supplies up to 30 watts of power output and data transmission in Gigabit speed both delivered over one Cat.5e/6 Ethernet cable, powering remote PoE PD at distance up to 100 meters.

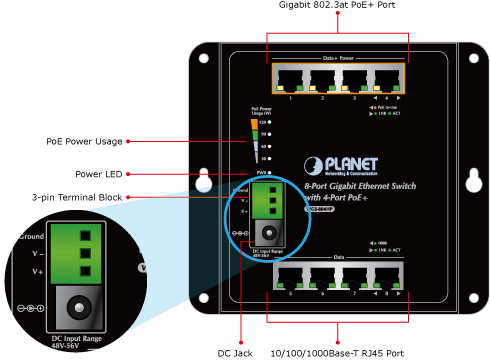

Intelligent LED Indicator for Real-time PoE Usage

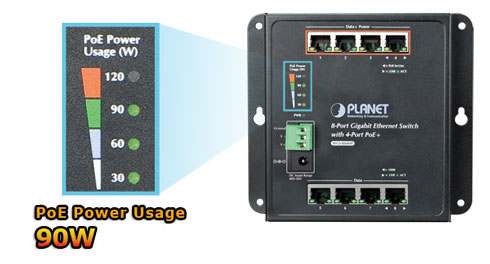

To facilitate auto power management, the WGS-804HP implements Power Budget Control function that helps to prevent power budget overloading. Moreover, the WGS-804HP helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. Called “PoE Power Usage”, the front panel of the WGS-804HP has four LEDs indicating and 120W of power usage.

Hardware Specifications
Network Connector	8-Port RJ45 for 10/100/1000BASE-T
PoE Inject Port	4-Port with 802.3af / 802.3at PoE injector function (Port-1 to Port-4)
Switch Architecture	Store and forward
MAC Address Table	8K MAC address table with auto learning function
Data Buffer	1Mbit
Switch Fabric	16Gbps / non-blocking
Switch Throughput	11.9Mpps@64Bytes
Jumbo Frame	9Kbytes
Flow Control	IEEE 802.3x pause frame for full duplex Back pressure for half duplex
LED Indicators	Power LED: Power (Green) PoE Power Usage LED: 30W, 60W, 90W, 120W (Green) PoE Port(Port-1 to Port-4): PoE-in-Use (Orange) 　　　　　　　　　　　　　　 LNK/ACT (Green) 10/100/1000BASE-TX Port (Port-5 to Port-8): 1000 (Green) 　　　　　　　　　　　　　　　　　　　　　　　 LNK/ACT (Green)
Connector	■ Removable 3-pin terminal block for power input 　　- Pin 1/2 for DC Power 　　- Pin 3 for earth ground ■ DC power jack with 2.0mm central pole
Power Requirements	48~56V DC, 3A (max.)
Power Consumption	140 watts / 478BTU
ESD Protection	6KV DC
EFT Protection	6KV DC
Enclosure	IP30 metal
Dimensions (W x D x H)	148 x 134 x 25 mm
Weight	510g
Installation	Wall mount, magnetic wall mount and DIN-rail kit
Power over Ethernet
PoE Standard	IEEE 802.3af / 802.3at Power over Ethernet PSE
PoE Power Supply Type	End-span
PoE Power Output	■ IEEE 802.3af Standard 　　- Per port 48V~56V DC (depending on the power supply), max. 30 watts ■ IEEE 802.3at Standard 　　- Per port 50V~56V DC (depending on the power supply), max. 30 watts
Power Pin Assignment	1/2(+), 3/6(-)
* PoE Power Budget	120 watts (depends on power input)
Max. Number of Class 2 PD	4
Max. Number of Class 3 PD	4
Max. Number of Class 4 PD	4
Standard Conformance
Standard Compliance	IEEE 802.3: Ethernet IEEE 802.3u: Fast Ethernet IEEE 802.3ab: Gigabit Ethernet IEEE 802.3x: Flow Control IEEE 802.3af: Power over Ethernet IEEE 802.3at: High Power over Ethernet
Regulation Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (Free fall) IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration)
Environment
Operating	Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Accessory
Standard Accessories	■ User’s manual x1 ■ Magnetic kit x 1 ■ DIN-rail kit x 1 ■ Wall-mounted Kit x 1 ■ Dust cap x 8 ■ 3-pin Terminal Block Connector x 1
* The actual power output may vary on the external power system with maximum 120 watts PoE budget fo
