| Camera |
| Image Device |
1/4" 1mega-pixel CMOS image sensor |
| Lens |
Fixed lens 3.6mm, F1.4
Angle of view:
Horizontal: 75 degrees
Vertical: 55 degrees
|
| Effective Pixels |
1280 x 720 |
| Min Illumination |
Color: 0.1 lux @ F1.2
B/W: 0 lux (IR on)
|
| LED |
Built-in IR LED x 11, effective up to 10 meters
*The IR distance is based on the environment
|

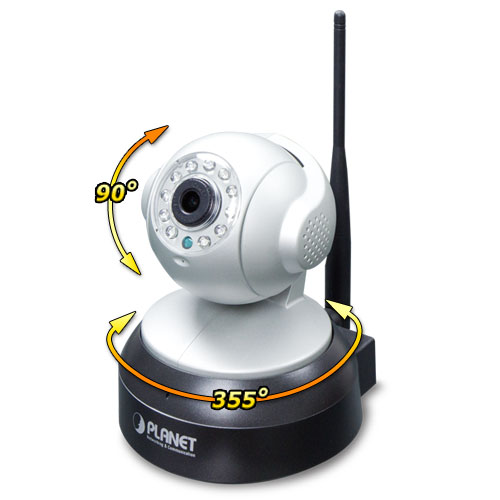

| Angle of Pan |
0~355 degrees |
| Angle of Tilt |
0~90 degrees |
| Video |
| Video Encoder |
H.264 |
| Video Resolution |
Main Stream (H.264): 1280 x 720 / 720 x 576 / 640 x 480
Sub Stream (H.264): 720 x 576 / 640 x 480 / 352 x 288 / 320 x 240 / 174 x 144
|
| Frame Rate |
Up to 30fps for all resolutions |
| Image Setting |

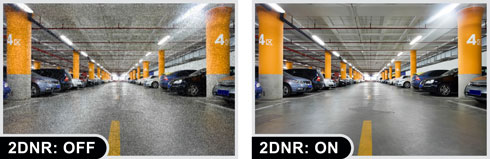

2D noise reduction
Color, brightness, contrast
Mirror / Rotate
4 privacy masks
Text, time and date overlay
|
| Streaming |
Simultaneous multi-streaming
Streaming over UDP, TCP, or HTTP
Controllable frame rate and bandwidth
Constant and variable bit rate
|
| Audio |
| Audio Streaming |
2-way audio |
| Audio Compression |
PCM, G.711ALAW, G.711ULAW |
| Microphone |
Internal microphone |
| Audio Output |
Adjustable audio output gain |
| Network and Configuration |
| Network Standard |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.11 b/g/n
|
| Network Protocol |
IPv4, TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, 802.1X |
| Antenna Connector |
RP-SMA Female |
| Frequency |
2.4GHz |
| RF Transmit Power |
802.11b mode: 20 dbm
802.11g mode: 17 dbm
802.11n mode: 17 dbm
|
| RF Receiver Sensitivity |
802.11b (11Mbps): -85dbm
802.11g (54Mbps): -68dbm
802.11n (20MHz): -68dbm
802.11n (40MHz): -68dbm
|
| RF Data Rate |
802.11b: 11Mbps
802.11g: 54Mbps
802.11n (20MHz): up to 72Mbps
802.11n (40MHz): up to 150Mbps
|
| Security |
Password protection; WEP, WPA-PSK and WPA2-PSK encryptions |
| Users |
2 clients on-line monitoring at the same time |
| System Integration |
| Application Programming Interface |

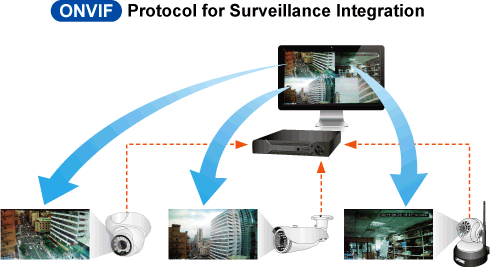

ONVIF compliant |
| Alarm Triggering |
Motion Detection
External Input
|
| Alarm Events |
Event snapshot uploads via FTP
Event recording uploads via SD card
Notification via email, HTTP External output activation
|
| Environment |
| Power Requirements |
5V DC, 10W max. |
| Power Consumption |
Up to 7.8W (IR & PT on) |
| Operating Temperature |
-10 ~ 50 degrees C |
| Operating Humidity |
20 ~ 85% (non-condensing) |
| Dimensions (W x D x H) |
103 x 106 x 131mm |
| Weight |
305g |
| Emission |
CE, FCC |

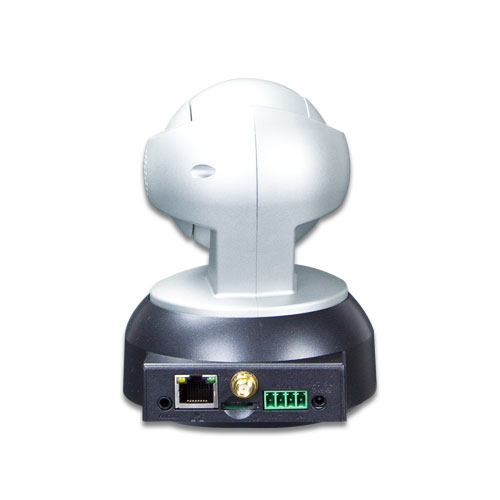

| Connectors |
10/100 Mbps Ethernet, RJ-45
DC power jack
Terminal block for 1 alarm input and 1 output
Audio out
MicroSD/SDHC card (max 32GB)
Factory default reset
|
