200/160Mbps Downstream/Upstream, High Performance Gigabit Ethernet over Phone Wire Solution
PLANET VC-231G, a new-generation and high-performance Gigabit Ethernet-over-VDSL2 Converter, works well with a pervasive telephone line network with a symmetric data rate of up to 200/160Mbps (G.INP, Sym, 8dB) over a distance of 300m and 20/12Mbps over a long distance of 1.4km. It is based on the two-core networking technology, Gigabit Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely the fastest data transmission speed over the existing copper telephone lines without the need of rewiring. | | | | | | | High-performance Ethernet over VDSL2
Via the latest VDSL2 technology, PLANET VC-231G offers high-speed access to Internet, up to 190Mbps for both upstream and downstream data transmissions. With integrated support for the ITU-T’s new G.993.5 vectoring technology, the VC-231G works in conjunction with vectoring-enabled DSLAMs to remove crosstalk interference and improve maximum line bandwidth across the existing copper infrastructure. | | | | | | | Implementing with Existing Telephone Copper Wires
The VC-231G is also a Long Reach Ethernet (LRE) converter providing one RJ45 Ethernet port and one RJ11 phone jack, which is for VDSL2 connection. Use the additional splitter from the package of the VC-231G to share the existing phone line with POTS, thus replacing the existing copper wiring is not necessary. Just plug the VC-231G with the additional splitter into the existing RJ11 telephone jack and a high-performance VDSL2 network can be connected. It is ideal for use as an Ethernet extender to an existing Ethernet network. | | | | | | | Delivering High-demanding Service Connectivity for ISP/Triple Play Devices
The VC-231G provides an excellent bandwidth demand for the triple play devices for home entertainment and communication. With the asymmetric data transmission of 220/120Mbps (G.INP, Asym, 8dB), the VC-231G enables many multi-media services to work on the local Internet, such as VoD (video on demand), voice over IP, video phone, IPTV, Internet caching server, distance education, and so on. | | | | | | | Easy and Flexible Installation
The Ethernet-over-VDSL2 converter comes with a plug-and-play design and is fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. The VC-231G offers two modes, CPE and CO, for application -- CPE mode is used at client side and CO mode is at central side. The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VC-231G and a CO mode VC-231G must be set up as one pair of converters to perform the connection. | | | | | | | ADSL2+ Fallback
For those ISPs that still provide ADSL broadband service, the VC-231G can support transmission rates up to 24Mbps downstream and 1Mbps upstream with the ADSL2+ technology. The VC-231G establishes a connection with ISP and can be also directly switched over to VDSL2 after the ISP network upgrade. | | | | | | |
Ethernet Distance Extension

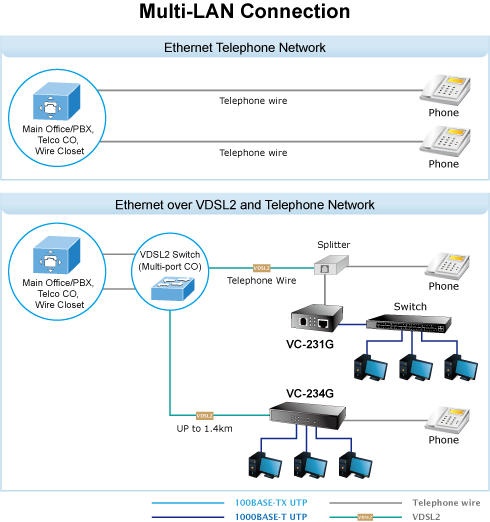

Two VC-231G converters can act as a standalone pair which is good for Ethernet distance extension over the existing telephone wires. With just one pair of AWG-24 copper wires, two Ethernet networks can be easily connected to each other with a maximum data transmission rate of 200Mbps. The telephone service can still be used while the VC-231G CO/CPE is in operation. The two solutions listed below are typical applications for the Ethernet over VDSL2 bridge. | | | | | | | | | | | | | | MTU/MDU/Hospitality Solution
The VC-231G is a perfect solution to quickly providing cost-effective yet high-speed network services to multi-unit buildings such as residential buildings (multi-dwelling units), commercial (multi-tenant units) buildings, hotels and hospitals. By utilizing the existing telephony infrastructure, a new network installation can be easily built, without requiring new wiring. With a transmission rate of up to 220/120Mbps (G.INP, Asym, 8dB), VoD, IP telephony and various broadband services can be easily provided. | | | | | | | | | | | | | | Last Mile of FTTx Deployment
The VC-231G is an ideal solution for FTTx (Fiber to the Building, Fiber to the Campus or Fiber to the Node) applications. It supports high-bandwidth VDSL2 over the existing telephone wires in the “last mile” from the ISP/telecom/service provider’s fiber node to the buildings and customers’ apartments. The 10/100/1000Mbps port of the VC-231G can be directly connected to a PC or Ethernet devices such as Ethernet switches or broadband routers. It is excellent for phone line network built under Internet because every room or house can use the existing phone line to transmit data through the Internet and the whole building can share the Internet to the wider area network at a minimum cost. | | |
- ITU-T G.993.5 G.vectoring and G.INP
- DMT-based coding technology
- Built-in POST splitter to share voice and date
- CO/CPE mode selectable via DIP switch
- Selectable target band plan and SNR margin
- Up to 200/160Mbps bandwidth
- 1 10/100/1000BASE-TX LAN ports
- Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX and IEEE 802.3x, flow control Ethernet standards
- Half duplex back pressure and IEEE 802.3x full duplex pause frame flow control
- One RJ11 connector for VDSL port with VDSL connection
- Voice and data communication can be shared simultaneously based on the existing telephone wire
- Supports a packet size of up to 9K bytes, IEEE 802.1Q VLAN tag transparency
- VDSL2 standalone transceiver for simple bridge modem application
- Advantage of minimum installation time (Simply by Plug-and-Play)
- Supports extensive LED indicators for network diagnosis
- Co-work with PLANET media converter chassis (MC-700/MC-1500/ MC-1500R/MC-1500R48)
- Compact in size and easy to install
| | |
| Hardware Specifications |
| LAN Ports |
1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| VDSL Port |
1 VDSL2 RJ11 female phone jack
Twisted-pair telephone wires (AWG-24 or better) up to 1.4km
|
| Phone Port |
Additional splitter for POTS connection |
| Dimensions (W x D x H) |
97 x 70 x 26 mm |
| Weight |
184g |
| Power Requirements |
DC 5V, 2A external power |

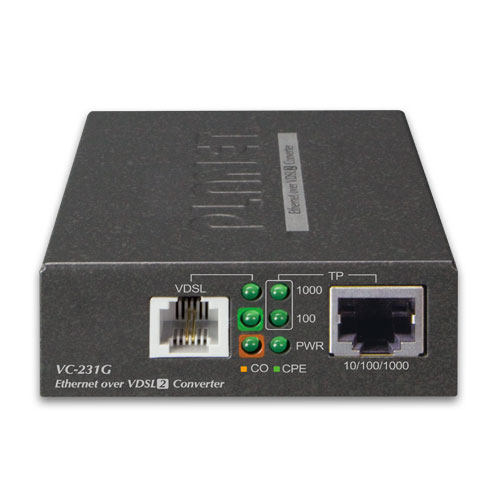

| LED Indicators |
1 power: Green
1 1000BASE-T LNK/ACT: Green
1 100BASE-TX LNK/ACK: Green
1 VDSL:Green
1 CO: Green
1 CPE: Green |
| Housing |
Metal |
| DIP Switch & Functionality |

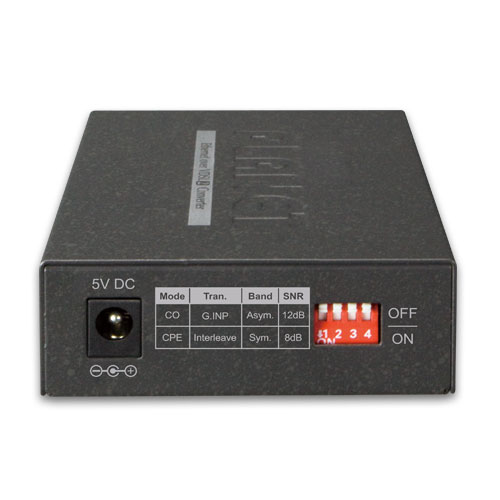

4-position DIP switch
CO or CPE mode selectable
Selectable G.INP and interleaved mode
Selectable target Band plan
Selectable target SNR mode
|
| Switch Specifications |
| Switch Processing Scheme |
Store-and-Forward |
| Address Table |
2K entries |
| Flow Control |
Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
|
| Jumbo Packet Size |
9K bytes |
| System Specifications |
| VDSL Compliance |
VDSL-DMT:
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a support)
ITU-T G.993.5 G.vectoring
ITU-T G.998
G.INP
|
| ADSL Compliance |
Capable of ADSL2/2+ standard:
ITU G.992.3 G.dmt.bis
ITU G.992.5 G.dmt.bisplus
Data Rate: Up to 24Mbp |
Performance*
(Downstream/Upstream) |
CO, Interleave, Aym, 8dB
200M -> 221.35Mb/114.76Mb
400M -> 145.04Mb/76.27Mb
600M -> 88.60Mb/48.63Mb
800M -> 56.24Mb/29.50Mb
1000M -> 40.60Mb/7.28Mb
1400M -> 31.21Mb/5.59Mb
CO, Interleave, Sym, 8dB
200M -> 182.35Mb/154.28Mb
400M -> 141.85Mb/94.21Mb
600M -> 74.99Mb/45.90Mb
800M -> 59.79Mb/29.71Mb
1000M -> 34.27Mb/22.27Mb
1400M -> 25.17Mb/11.49Mb
G.INP, Sym, 8dB
200M -> 191.96Mb/161.02Mb
400M -> 145.53Mb/94.37Mb
600M -> 84.53Mb/50.62Mb
800M -> 67.10Mb/32.92Mb
1000M -> 38.01Mb/24.73Mb
1400M -> 28.03Mb/12.53Mb
G.INP, Asym, 8dB
200M -> 225.34Mb/122.39Mb
400M -> 151.89Mb/78.78Mb
600M -> 90.42Mb/49.93Mb
800M -> 57.70Mb/29.87Mb
1000M -> 45.33Mb/9.21Mb
1400M -> 34.74Mb/5.75Mb
CO, Interleave, Asym, 12dB
200M -> 194.07Mb/104.48Mb
400M -> 123.64Mb/64.98Mb
600M ->71.92Mb/42.28Mb
800M ->47.85Mb/25.07Mb
1000M -> 34.73Mb/7.01Mb
1400M -> 27.15Mb/3.76M
CO, Interleave, Sym, 12dB
200M -> 221.59Mb/114.66Mb
400M -> 123.19Mb/78.50Mb
600M -> 67.46Mb/36.28Mb
800M -> 52.17Mb/25.42Mb
1000M -> 26.96Mb/19.16Mb
1400M -> 21.03Mb/9.37Mb
G.INP, Sym, 12dB
200M -> 176.45Mb/136.97Mb
400M -> 149.03Mb/127.35Mb
600M -> 75.80Mb/40.27Mb
800M -> 59.09Mb/28.29Mb
1000M -> 28.58Mb/21.21Mb
1400M -> 23.31Mb/10.29Mb
G.INP, Asym, 12dB
200M -> 194.29Mb/110.17Mb
400M -> 125.71Mb/66.30Mb
600M -> 73.04Mb/43.33Mb
800M ->48.92Mb/24.57Mb
1000M -> 37.19Mb/7.61Mb
1400M -> 30.66Mb/3.54Mb |
| Standards Conformance |
| Standards Compliance |
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-duplex flow control
IEEE 802.1p Class of Service
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a support)
ITU-T G.993.5 G.Vectoring & G.INP
ITU-T G.998 |
