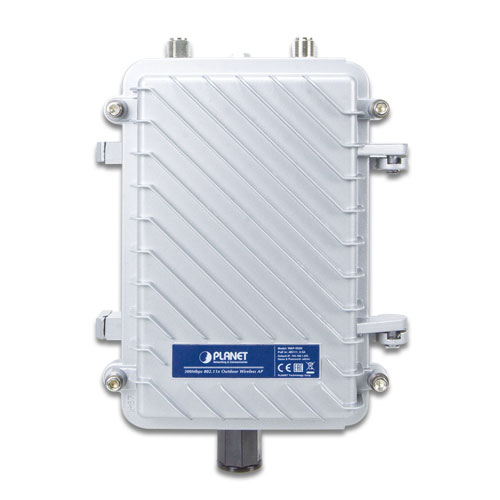

WAP-552N

5GHz 802.11a/n 300Mbps Outdoor Wireless AP (IP67, 802.3af/at PoE, 2 x N-Type Connector)

Overview
Application
Key Features
Specification
Download
Related Products

Rugged and Durable Outdoor Wi-Fi Solution

PLANET WAP-552N 802.11n Outdoor Wireless AP utilizes the 5GHz frequency band with less interference to deliver maximum 802.11n 2T2R 300Mbps connection speed. From the outdoor adaptability perspective, the WAP-552N comes with the IP67-rated aluminum housing to withstand the rigorously environmental conditions. By connecting high-gain antenna through the flexible N-type connectors, it is easy to achieve various outdoor long-distance applications and capable to adapt to any rough environment.

Robust Protection

For the maximum adaptability and stability in the rugged environment, the WAP-552N not only comes with IP67-rated aluminum housing, but also adopts the enterprise-level Qualcomm kernel, capable of withstanding wide temperature ranging from -40 to 70 degrees C. Compliant with IEEE 802.3af/at PoE standard, the WAP-552N can be powered by PSE (power sourcing equipment) via a single UTP cable, thus working perfectly with PLANET Solar Power PoE system to offer long-distance wireless services in rural areas, dramatically reducing cabling cost and deployment effort.

Maximized Operation Modes Fit Any Application

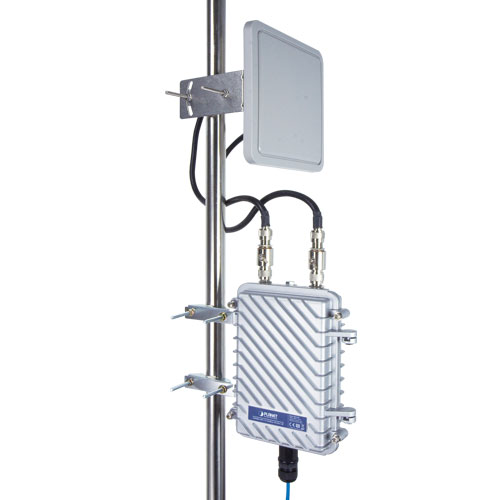

With the N-type external antenna connectors, the WAP-552N is able to connect specific high-gain directional antennas to adapt to various applications including video data transmission of remote IP cameras, bridging among headquarters and branches or relaying the wireless signal from the urban to the suburban to provide wireless internet services to rural residents. To provide maximum performance, the WAP-552N can implement up to 8 operation modes where a multitude of applications can be had for communities, warehouses, campuses, harbors, etc.

Multiple SSIDs with VLAN Tagging

As for security, the WAP-552N supports WPA/WPA2, and the 802.1X RADIUS authentication to secure the wireless connection. Besides, the supported IEEE 802.1Q VLAN allows multiple VLAN tags to be mapped to multiple SSIDs to distinguish the wireless access. This makes it possible for the WAP-552N to work with managed Ethernet switches to have VLANs assigned to a different access level and authority.

Hardware
Standard Support	IEEE 802.11a/n IEEE 802.11i IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x flow control
Material	Aluminum
Dimensions (W x D x H)	153.2 x 79.5 x 234.5 mm
Weight	2kg
Power Requirement	48V 0.5A, IEEE 802.3af/at PoE+
Power Consumption (max.)	< 13W

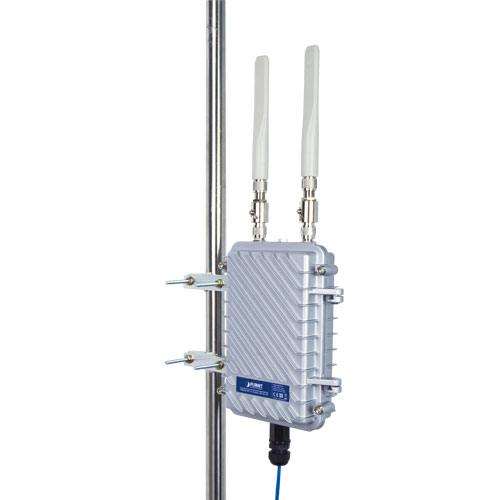

Mounting Type	Mast mounting

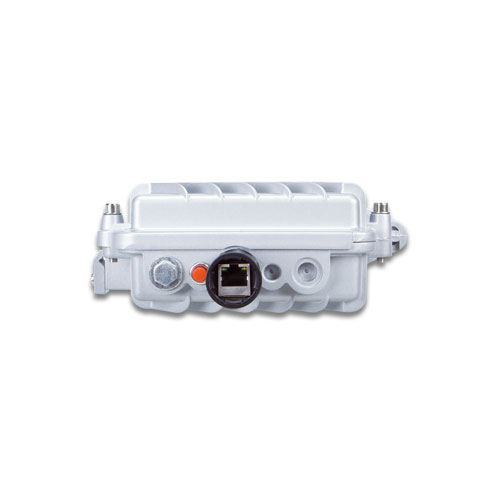

Interface	Wireless IEEE 802.11a/n, 2T2R PoE LAN: 1 x 10/100BASE-TX, auto-MDI/MDIX, 802.3af/at PoE In
Button	Reset button
Antenna	Built-in two N-type connectors
Data Rate	IEEE 802.11a: up to 54Mbps IEEE 802.11n (20MHz): up to 150Mbps IEEE 802.11n (40MHz): up to 300Mbps
Media Access Control	CSMA/CA
Modulation	802.11a/n: OFDM (BPSK/ QPSK/ 16QAM/ 64QAM)
Frequency Band	FCC: 5.180~5.240GHz, 5.745~5.825GHz ETSI: 5.180~5.700GHz
Operating Channels	FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 (9 channels) ETSI: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140 (16 channels) *5GHz channel list will vary in different countries according to their regulations.
Max. Transmit Power (dBm)	FCC: up to 27 ± 2dBm ETSI: < 20dBm (EIRP)
Receiver Sensitivity (dBm)	802.11a(6Mbps):-92dBm 802.11a(54Mbps):-75dBm 802.11n HT20(MCS0/MCS8):-91dBm 802.11n HT20(MCS7/MCS15):-72dBm 802.11n HT40(MCS0/MCS8):-88dBm 802.11n HT40(MCS7/MCS15):-70dBm
Environment & Certification
Operating Temperature	-40 ~ 70 degrees C
Operating Humidity	10 ~ 90% (non-condensing)
IP Level	IP67
ESD Protection	± 8kV air-gap discharge ± 4kV contact discharge
Surge Protection	± 4kV
Regulatory	CE, RoHS
Software
LAN	Static IP Supports IP-MAC binding
WAN Type (GW/WISP mode)	■ Static IP ■ Dynamic IP ■ PPPoE
Wireless Modes	■ Access Point ■ Gateway ■ Repeater ■ WDS (AP/Bridge/Station) ■ WISP
Channel Width	20MHz, 40MHz
Encryption Type	64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
Wireless Security	Enable/Disable SSID Broadcast Wireless MAC address filtering User Isolation
Max. SSIDs	4
Max. Wireless Clients	64 per radio (50 are suggested, depending on usage)
Max. WDS Peers	4
Wireless QoS	Supports Wi-Fi Multimedia (WMM)
Wireless Advanced	Auto Channel Selection 5-level Transmit Power Control (100%, 75%, 50%, 25%, 12.5%) Client Limit Control, Coverage Threshold Distance control (Auto Ack Timeout) Wi-Fi channel analysis chart
Status Monitoring	Device status, Wireless client List PLANET Smart Discovery DHCP client table System Log supports remote syslog server
VLAN	IEEE 802.1Q VLAN (VID: 3~4094) SSID-to-VLAN mapping up to 4 SSIDs
Self-healing	Supports auto reboot settings per day/hour
Management	Remote management through PLANET DDNS/ Easy DDNS Configuration backup and restore Supports UPnP Supports IGMP Proxy Supports PPTP/L2TP/IPSec VPN Pass-through SNMP v1/v2c/v3 support, MIB I/II, Private MIB
Central Management [1]	Applicable controllers: WAPC-500, WAPC-1000 and Smart AP Control(SAPC) *Remarks[1]: the feature will be supported through firmware/system upgrade.
