| aparat foto |
| Dispozitiv de imagine |
1/4" 1mega-pixel CMOS image sensor |
| Obiectiv |
Fixed lens 3.6mm, F1.4
Angle of view:
Horizontal: 75 degrees
Vertical: 55 degrees
|
| Pixeli efectivi |
1280 x 720 |
| Min iluminare |
Color: 0.1 lux @ F1.2
B/W: 0 lux (IR on)
|
| LED |
Built-in IR LED x 11, effective up to 10 meters
*The IR distance is based on the environment
|
| Unghiul lui Pan |
0~355 degrees |
| Unghiul de Tilt |
0~90 degrees |
| Video |
| Video Encoder |
H.264 |
| Rezoluție video |
Main Stream (H.264): 1280 x 720 / 720 x 576 / 640 x 480
Sub Stream (H.264): 720 x 576 / 640 x 480 / 352 x 288 / 320 x 240 / 174 x 144
|
| Frame Rate |
Up to 30fps for all resolutions |
| Setarea imaginii |
2D noise reduction
Color, brightness, contrast
Mirror / Rotate
4 privacy masks
Text, time and date overlay
|
| Streaming |
Simultaneous multi-streaming
Streaming over UDP, TCP, or HTTP
Controllable frame rate and bandwidth
Constant and variable bit rate
|
| Audio |
| Streaming audio |
2-way audio |
| Compresie audio |
PCM, G.711ALAW, G.711ULAW |
| Microfon |
Internal microphone |
| Iesire audio |
Adjustable audio output gain |
| Rețea și configurare |
| Standard de rețea |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.11 b/g/n
|
| Protocolul de rețea |
IPv4, TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, 802.1X |
| Conector pentru antenă |
RP-SMA Female |
| Frecvență |
2.4GHz |
| RF Transmit Power |
802.11b mode: 20 dbm
802.11g mode: 17 dbm
802.11n mode: 17 dbm
|
| Sensibilitatea receptorului RF |
802.11b (11Mbps): -85dbm
802.11g (54Mbps): -68dbm
802.11n (20MHz): -68dbm
802.11n (40MHz): -68dbm
|
| Rata de transmisie RF |
802.11b: 11Mbps
802.11g: 54Mbps
802.11n (20MHz): up to 72Mbps
802.11n (40MHz): up to 150Mbps
|
| Securitate |
Password protection; WEP, WPA-PSK and WPA2-PSK encryptions |
| Utilizatori |
2 clients on-line monitoring at the same time |
| Integrarea sistemului |
| interfața de programare a aplicației |

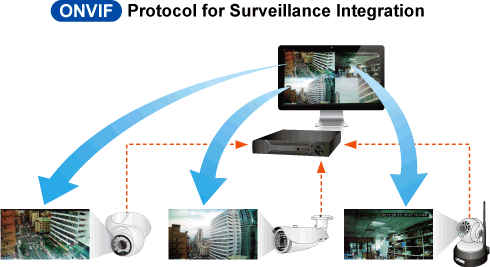

ONVIF compliant |
| Alarmă declanșatoare |
Motion Detection
External Input
|
| Evenimente de alarmă |
Event snapshot uploads via FTP
Event recording uploads via SD card
Notification via email, HTTP External output activation
|
| Mediu inconjurator |
| Cerinte de putere |
5V DC, 10W max. |
| Consumul de energie |
Up to 7.8W (IR & PT on) |
| Temperatura de Operare |
-10 ~ 50 degrees C |
| Umiditatea de funcționare |
20 ~ 85% (non-condensing) |
| Dimensiuni (L x Î x H) |
103 x 106 x 131mm |
| Greutate |
305g |
| emisie |
CE, FCC |
| Conectori |
10/100 Mbps Ethernet, RJ-45
DC power jack
Terminal block for 1 alarm input and 1 output
Audio out
MicroSD/SDHC card (max 32GB)
Factory default reset
|
